Electrical Diagrams

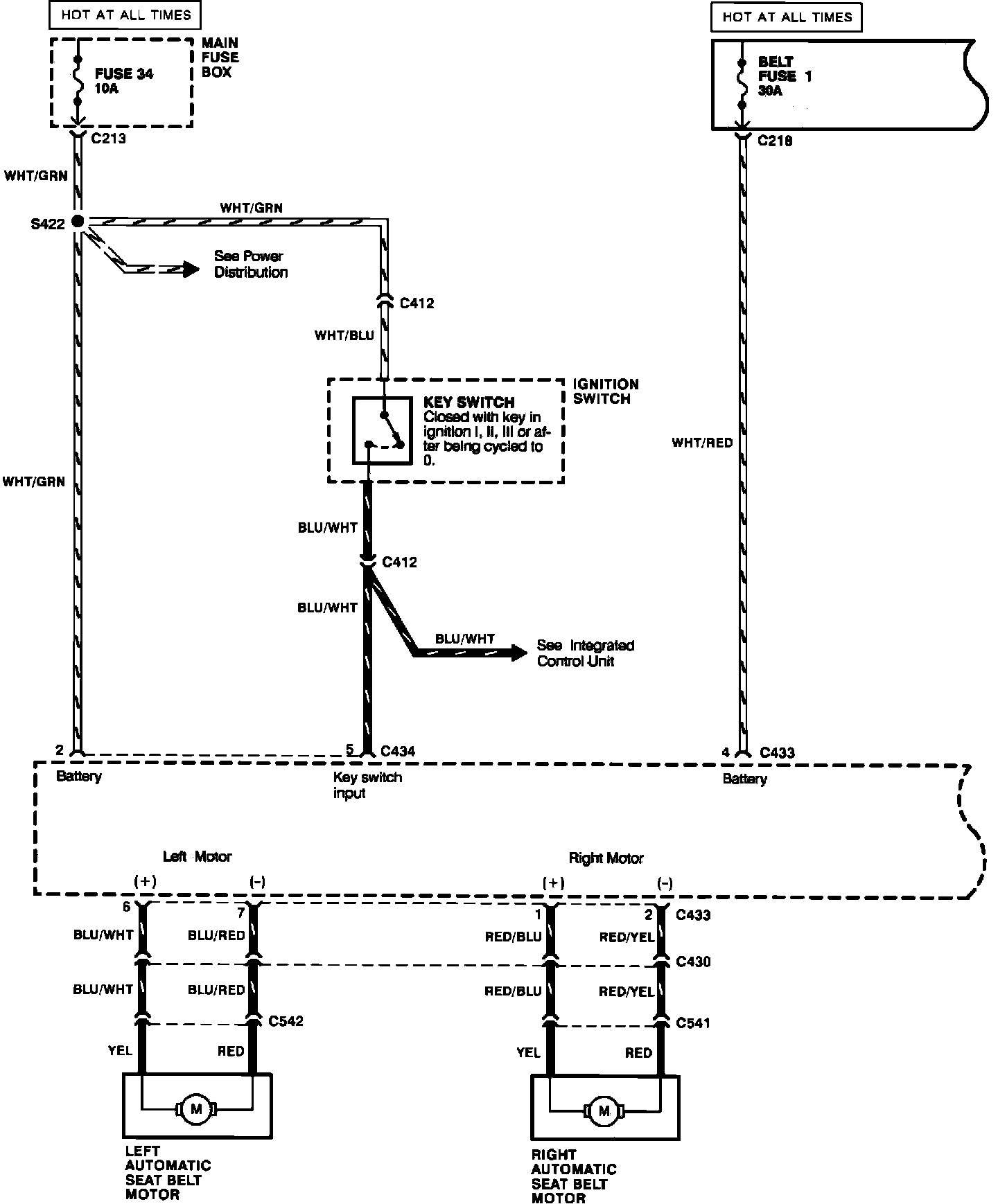

Automatic Shoulder Seat Belt:

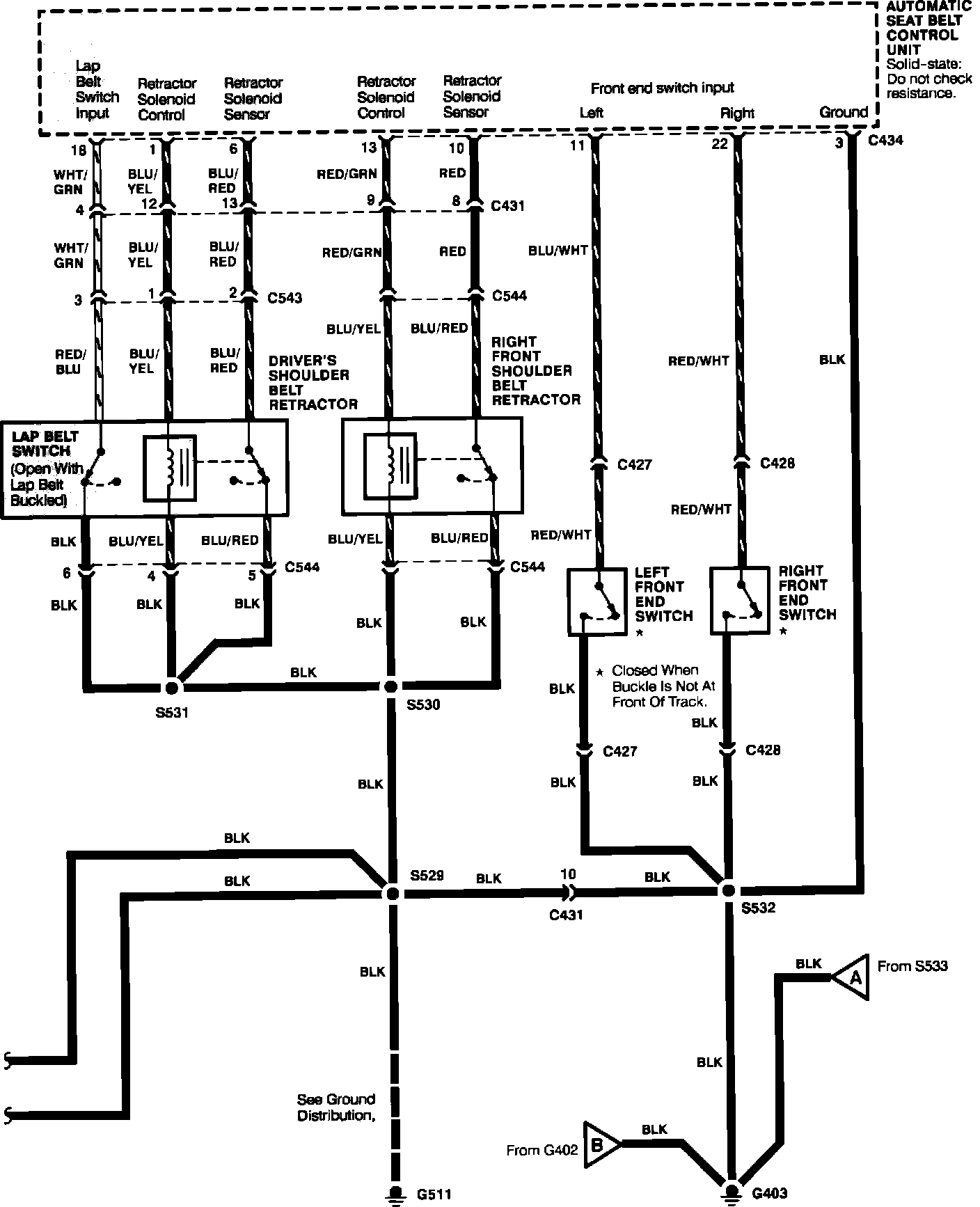

Automatic Shoulder Seat Belt:

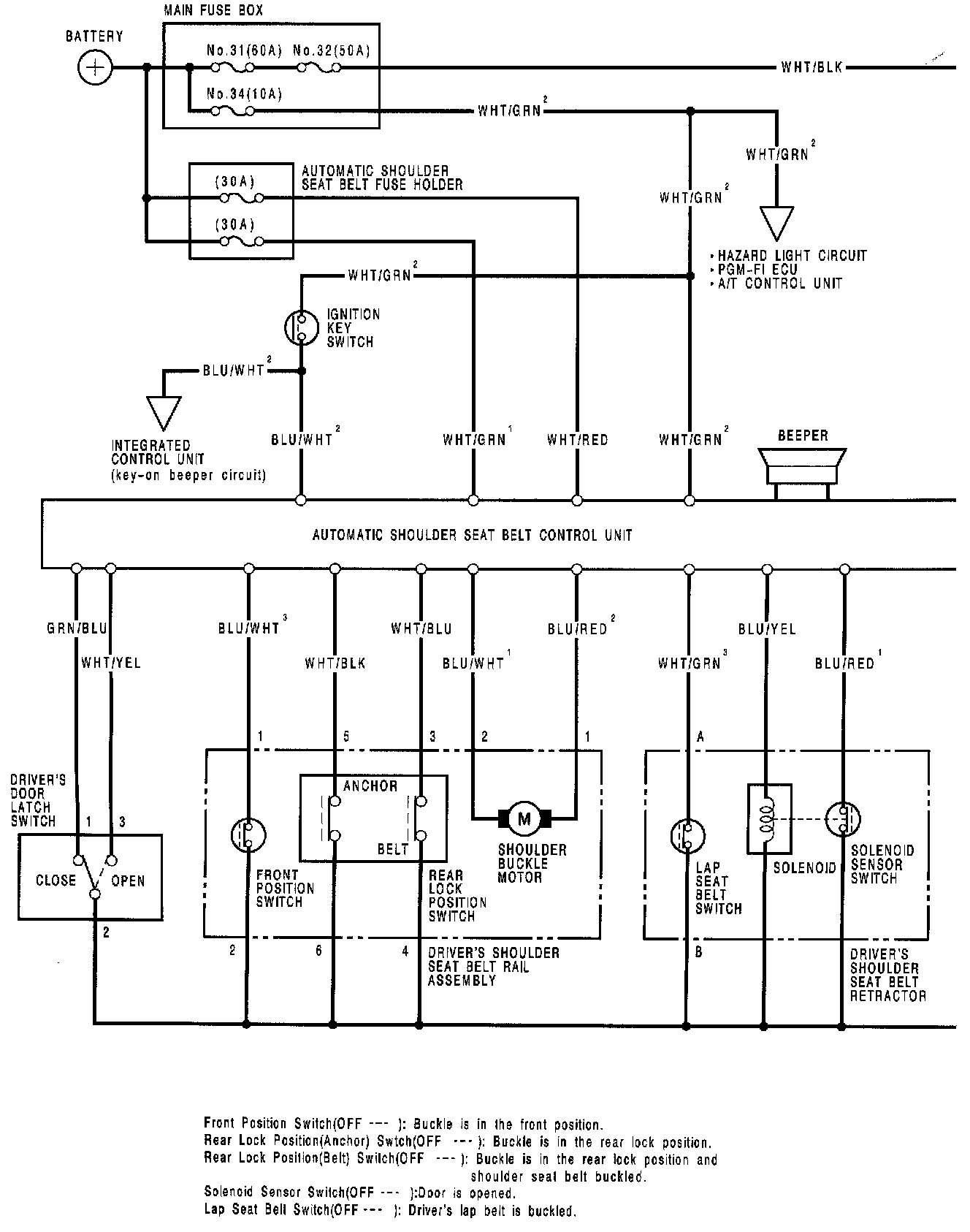

Automatic Shoulder Seat Belt:

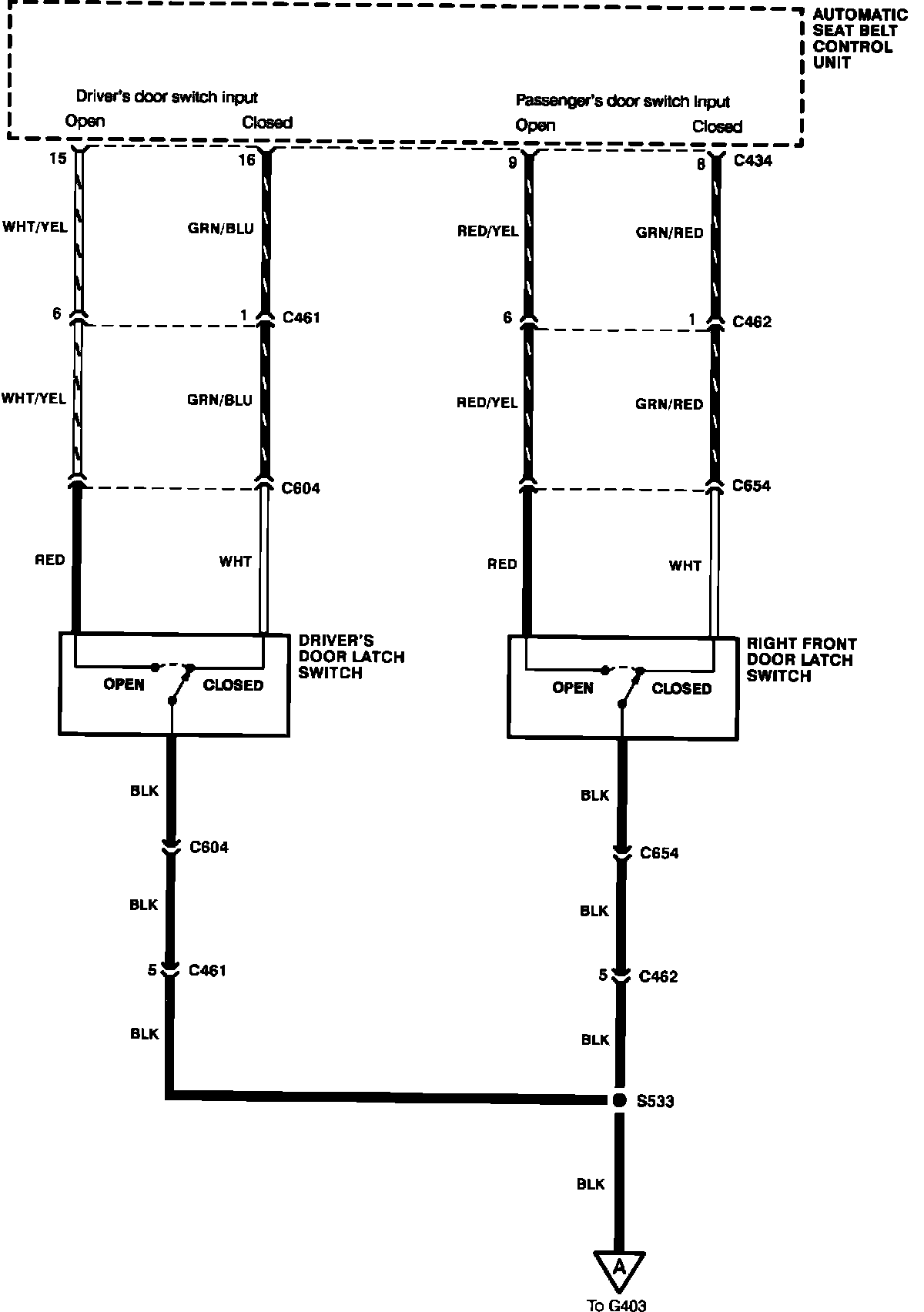

Automatic Shoulder Seat Belt:

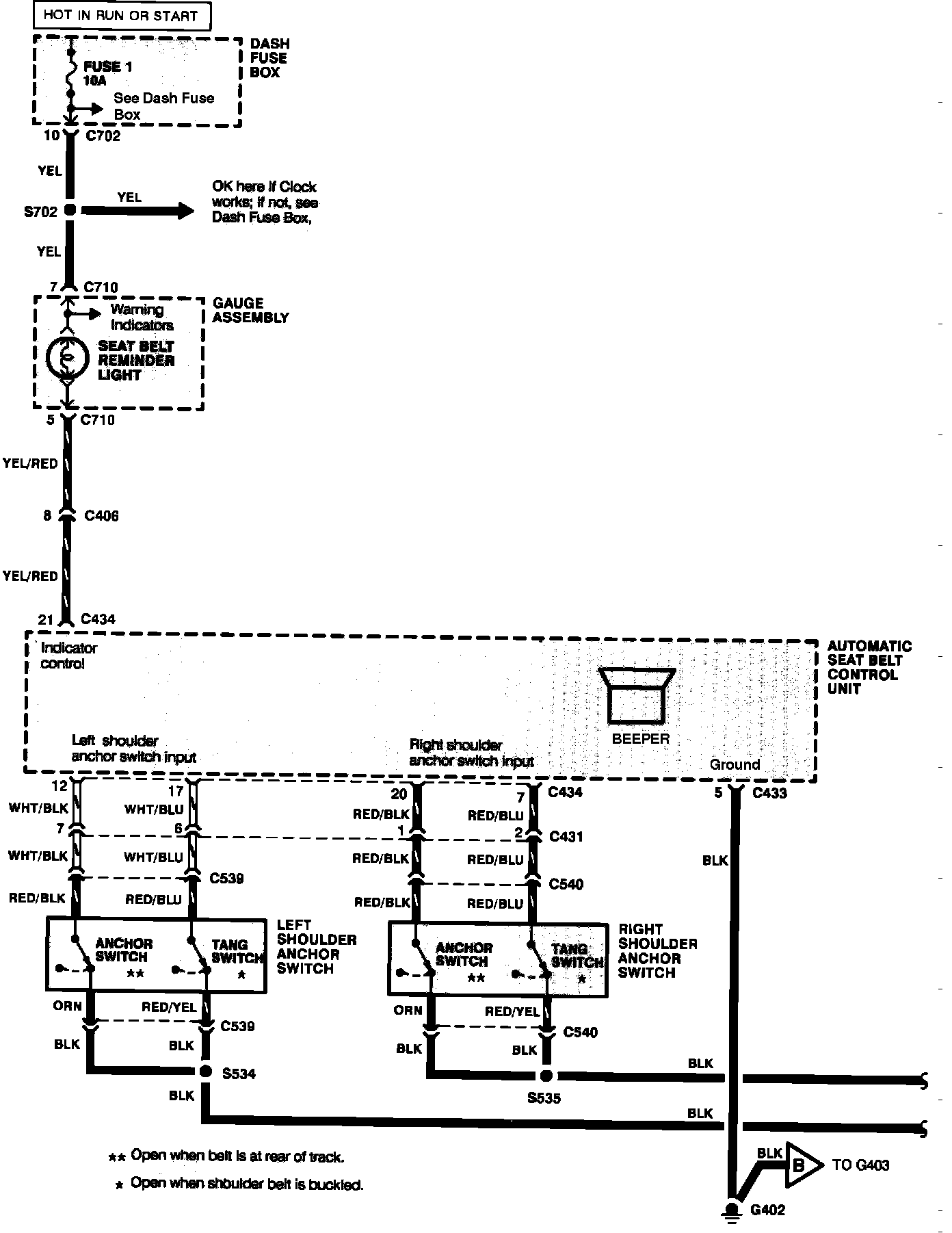

Automatic Shoulder Seat Belt:

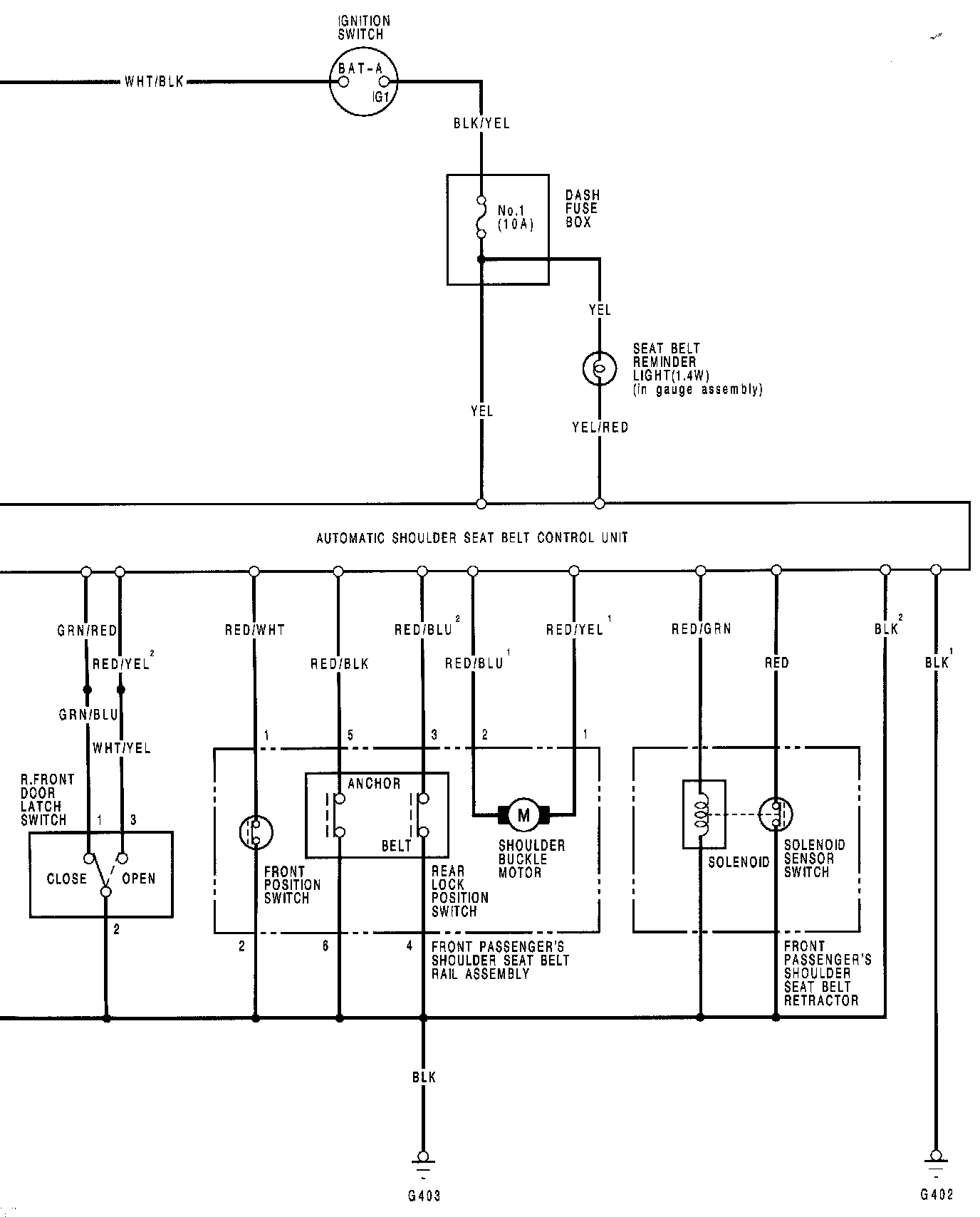

Automatic Shoulder Seat Belt:

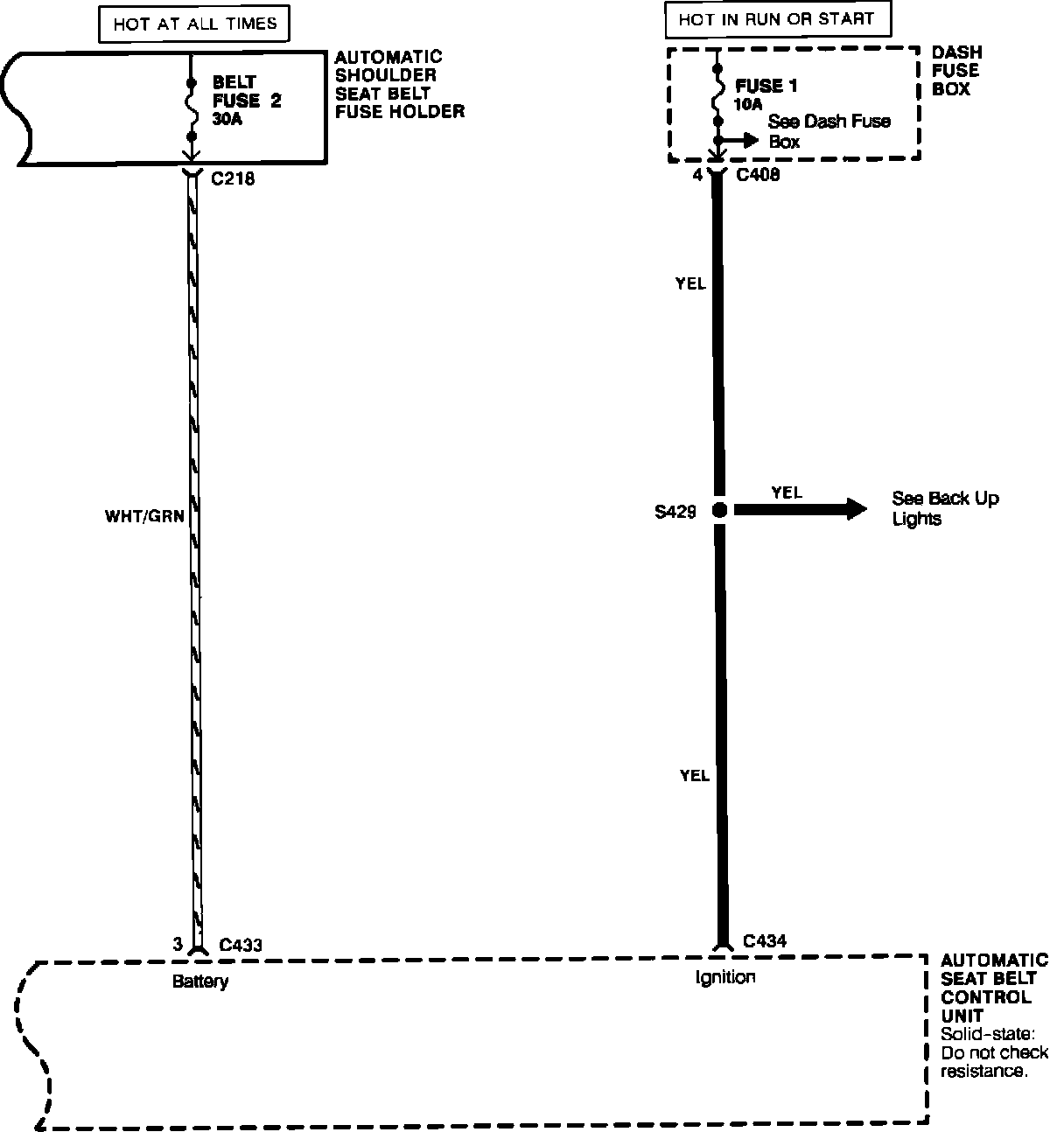

Automatic Shoulder Seat Belt:
