Hatchback and Sedan

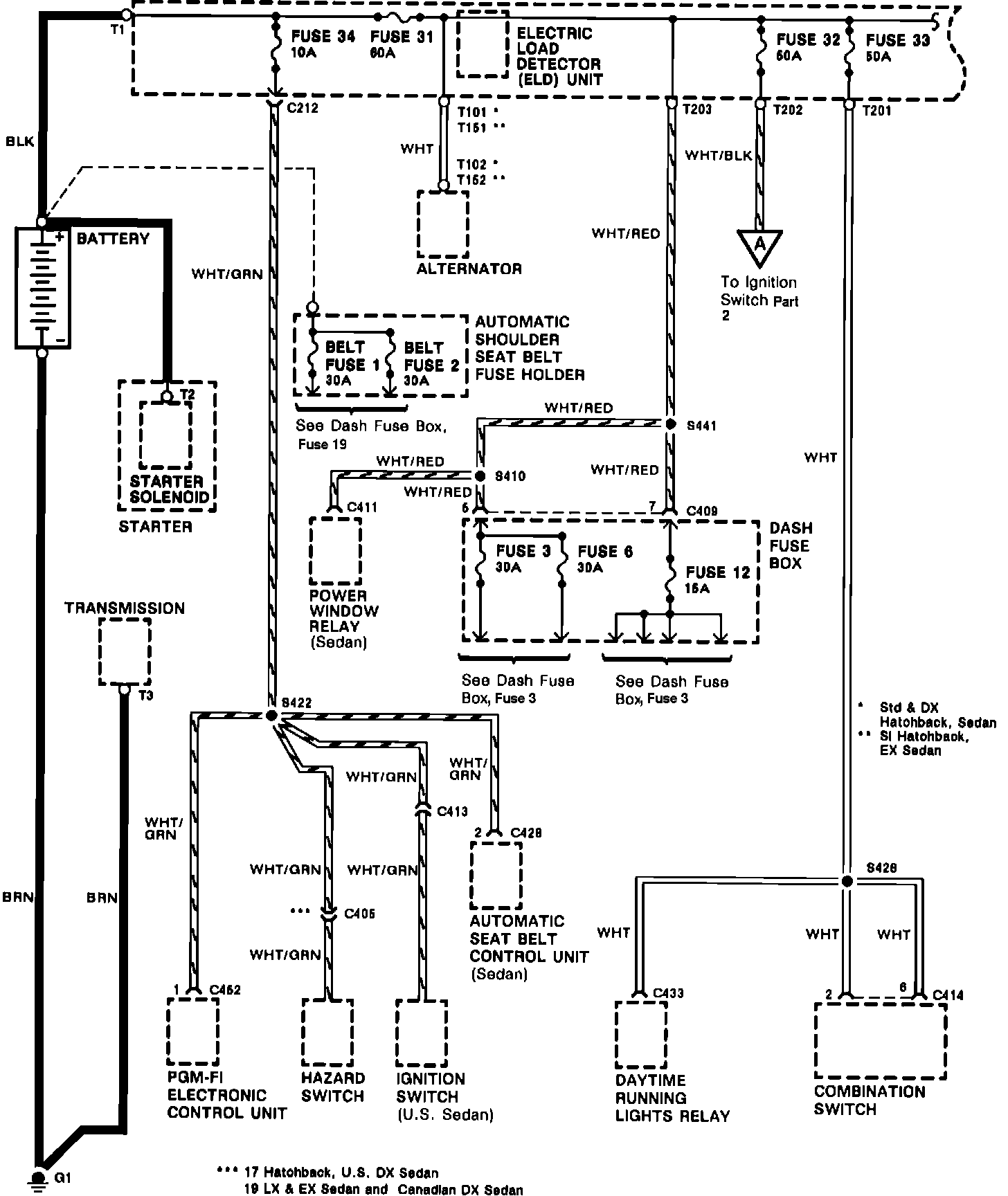

Power Distribution:

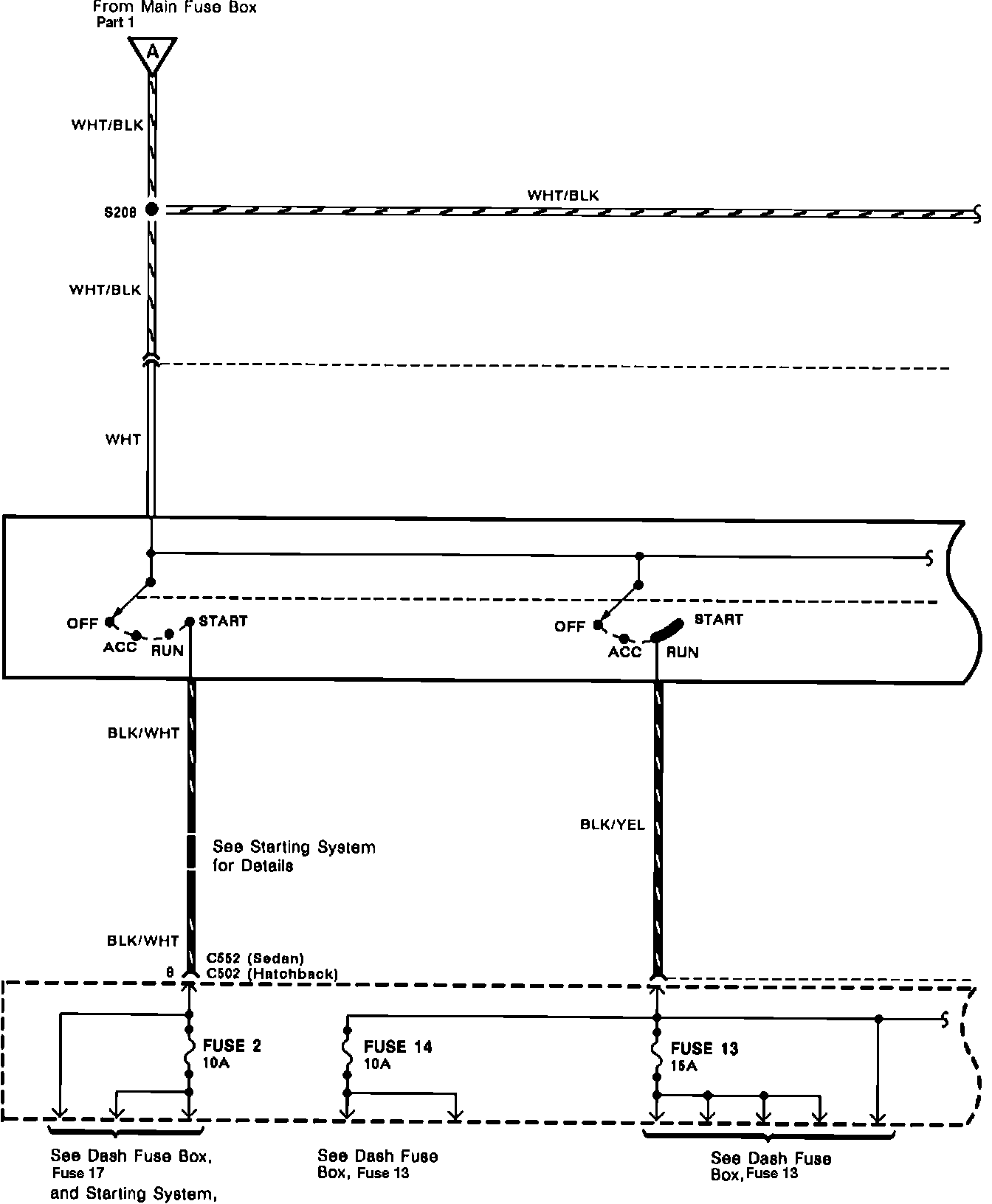

Power Distribution:

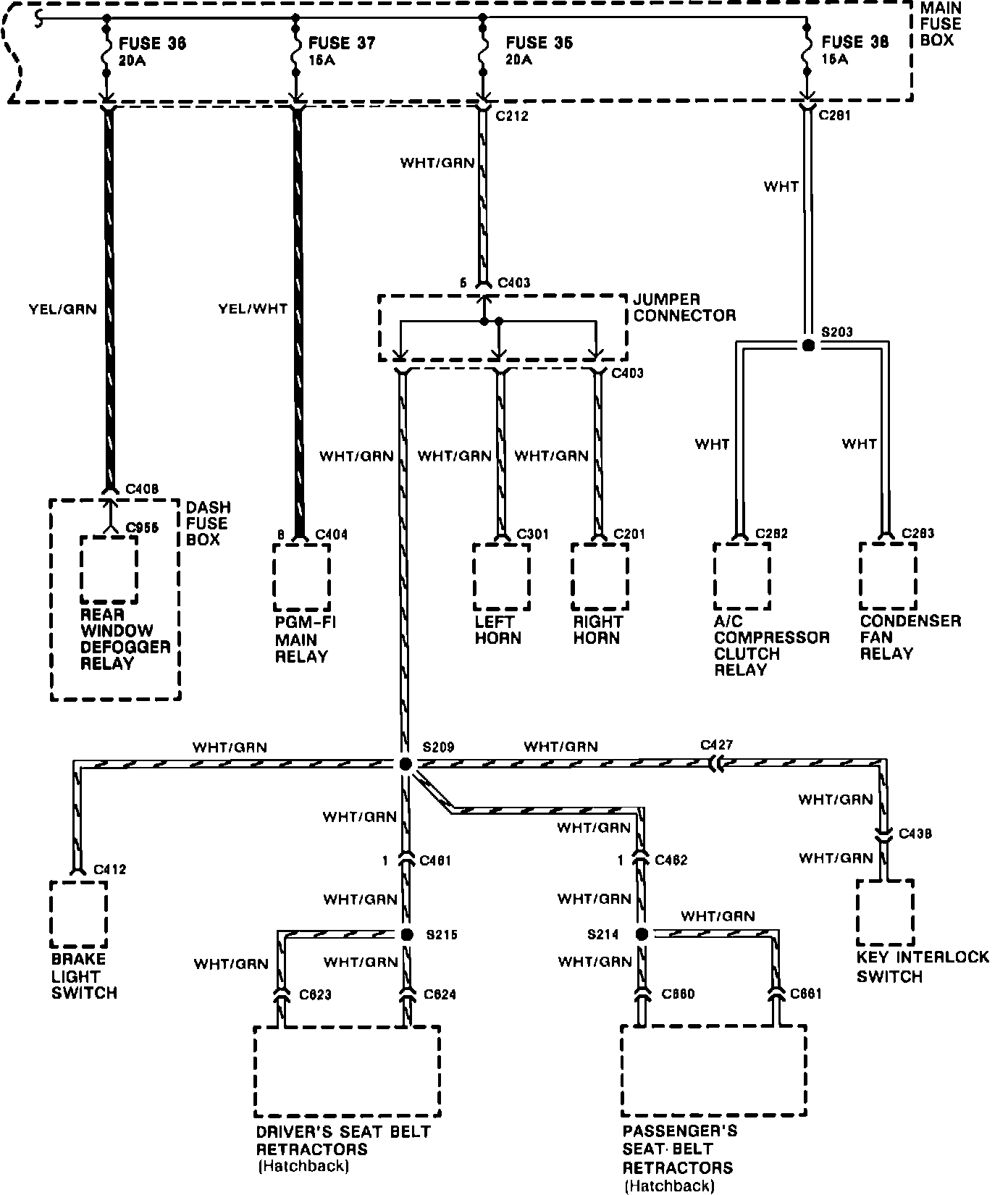

Power Distribution:



Power Distribution:
