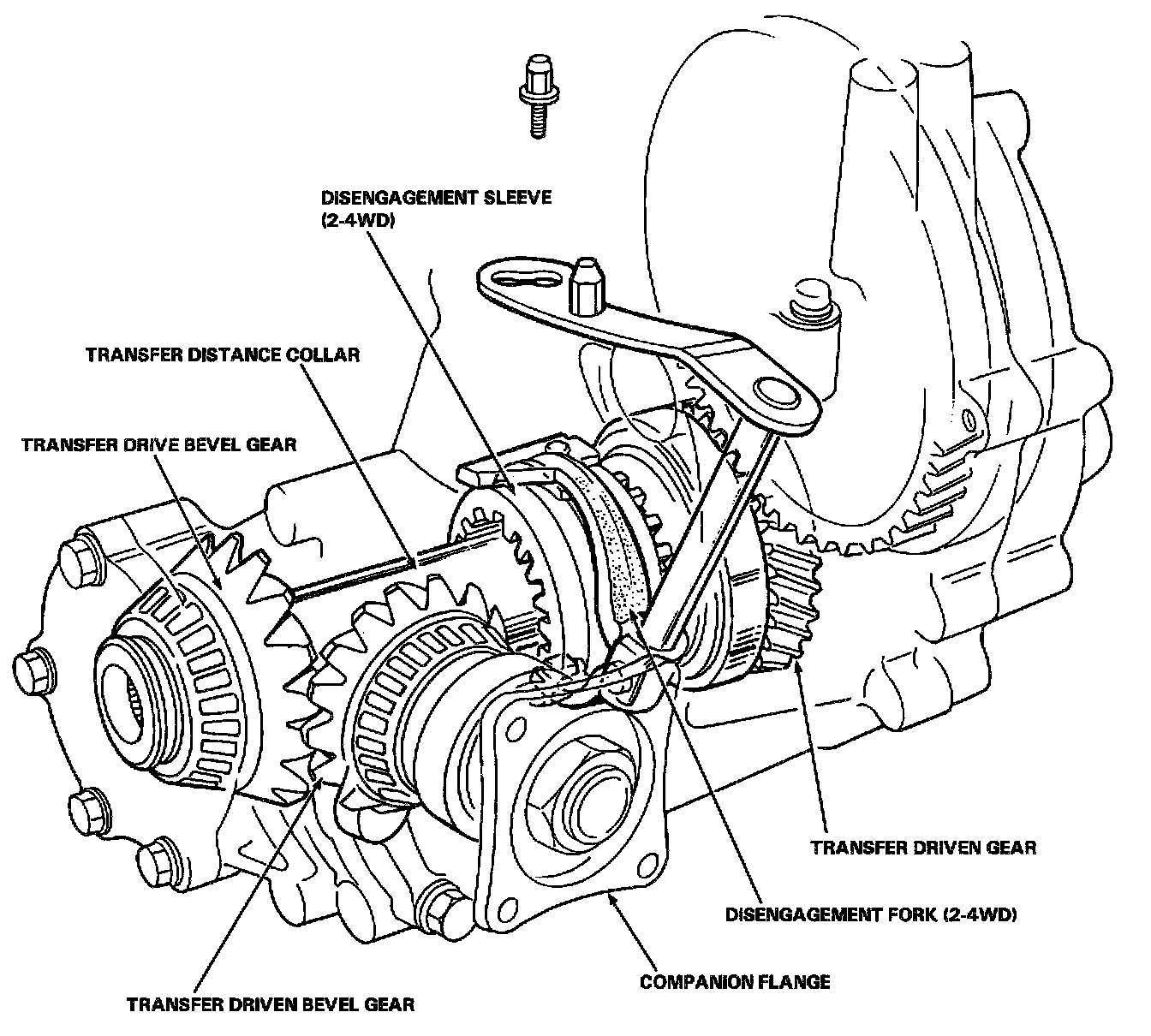

Transfer

The transfer transmits the power from the front differential through the propeller shaft to the rear differential.
Since the transfer drive gear has more teeth than the driven gear, a speed increase is effected in this unit.
The bevel gears are of a spiral design and run on taper roller bearings.
