Honda
>>
1991
>>
Prelude L4-1958cc DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radiator Cooling Fan Motor
>>
With Air Conditioning
With Air Conditioning

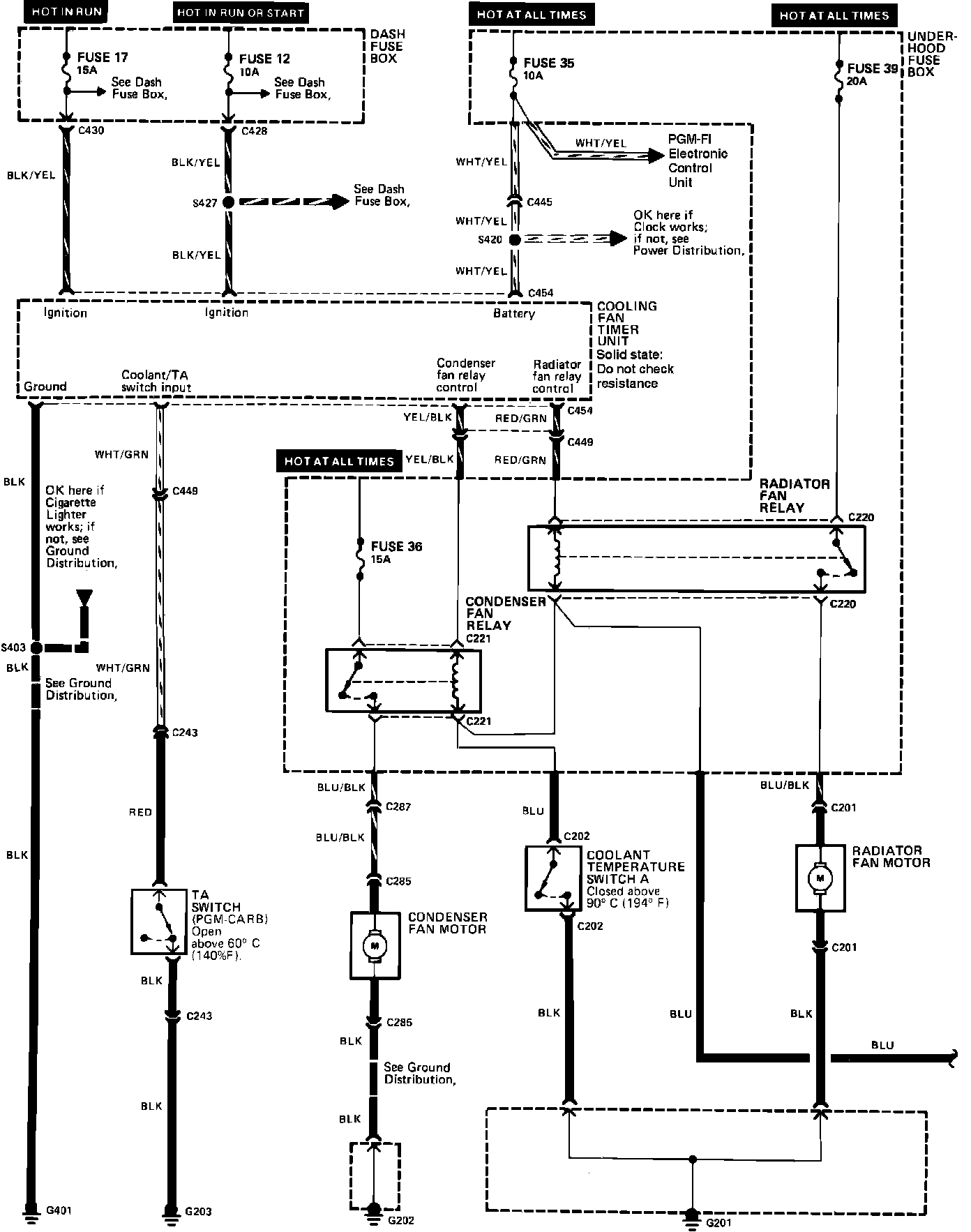

Air Conditioning & Heater (Compressor & Fan Controls) & Cooling Fan:
