Receiver Dryer: Locations

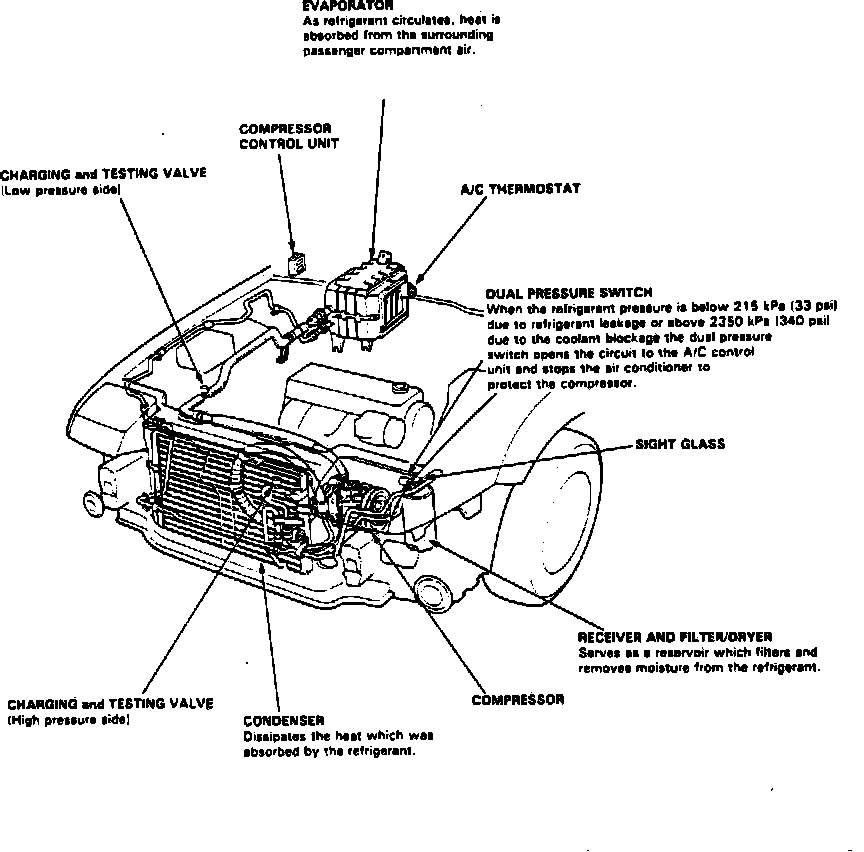

Air Conditioner System Components (Part 1 Of 2).:

Air Conditioner System Components (Part 2 Of 2).:

LH Side Of Engine Compartment

Applicable to: 1991
