Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
1991
>>
Prelude L4-2056cc DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Headlamp Reminder Indicator
Headlamp Reminder Indicator

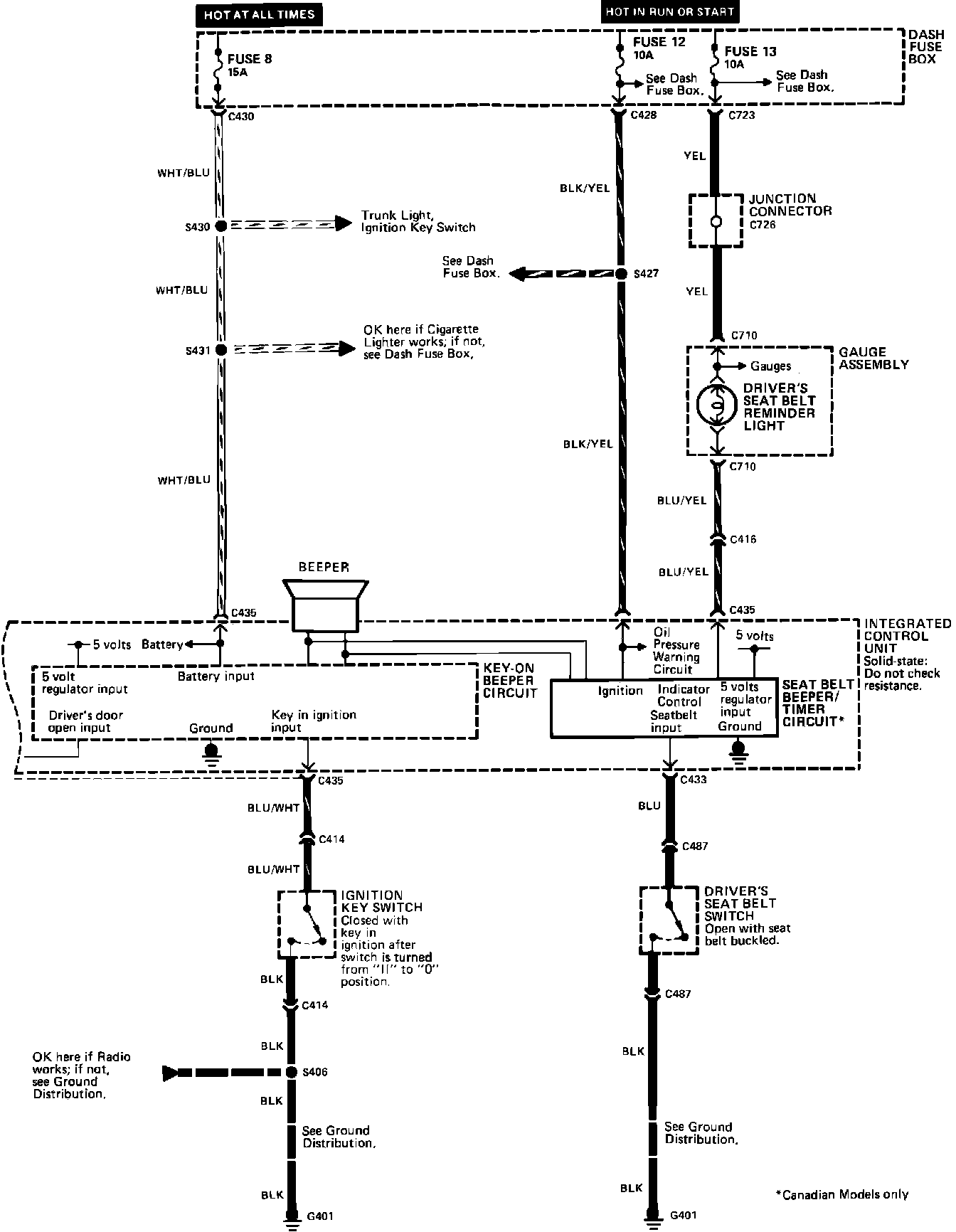

Key-On, Lights-On & Seat Belt Warning:
Key-On, Lights-On & Seat Belt Warning:
