Home >> Honda >> 1991 >> Prelude L4-2056cc DOHC >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Part 2 of 6

Part 2 of 6

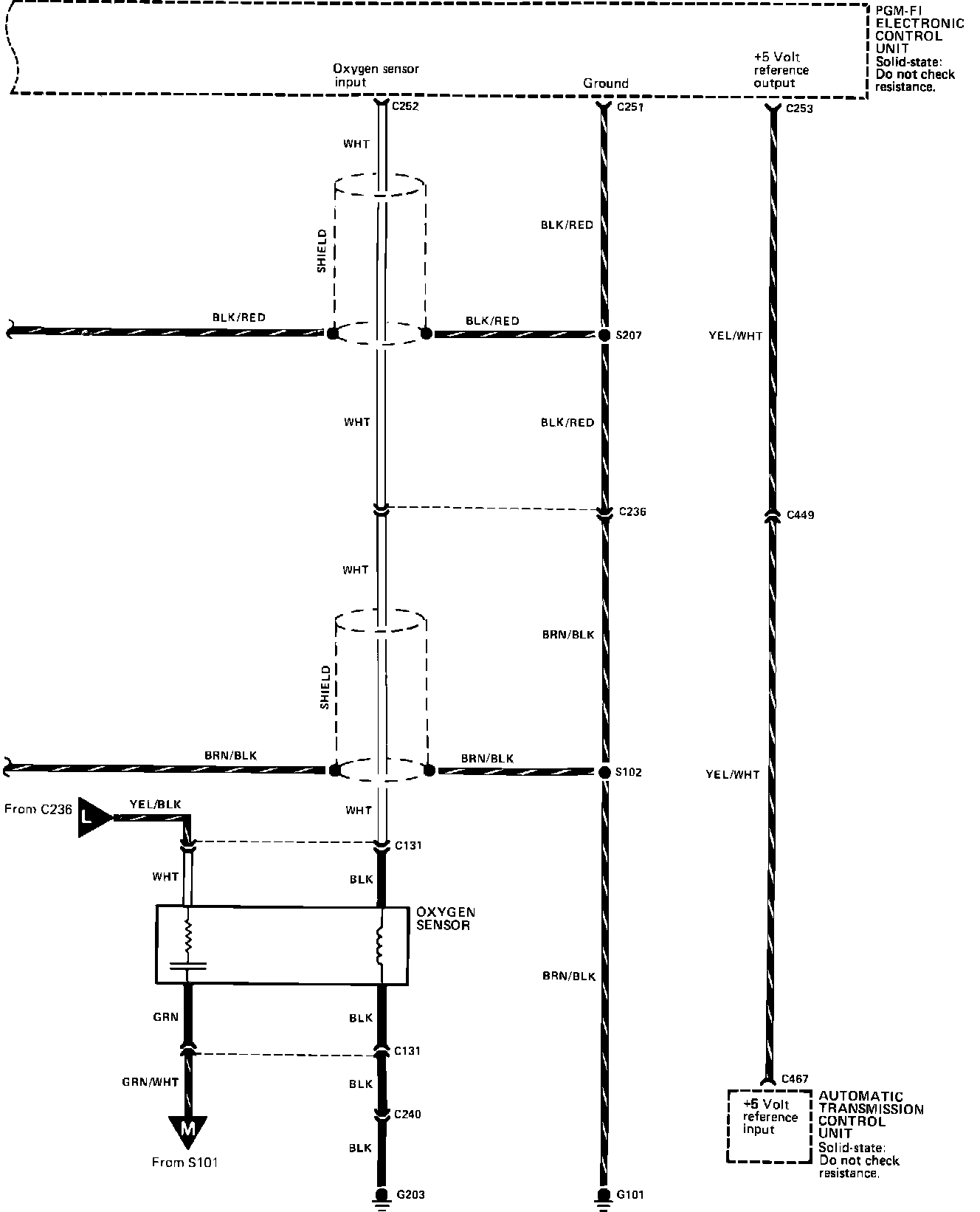

Fuel Injection:



Fuel Injection:
