Home >> Honda >> 1992 >> Accord L4-2156cc 2.2L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Air Bag Systems >> System Diagram

System Diagram

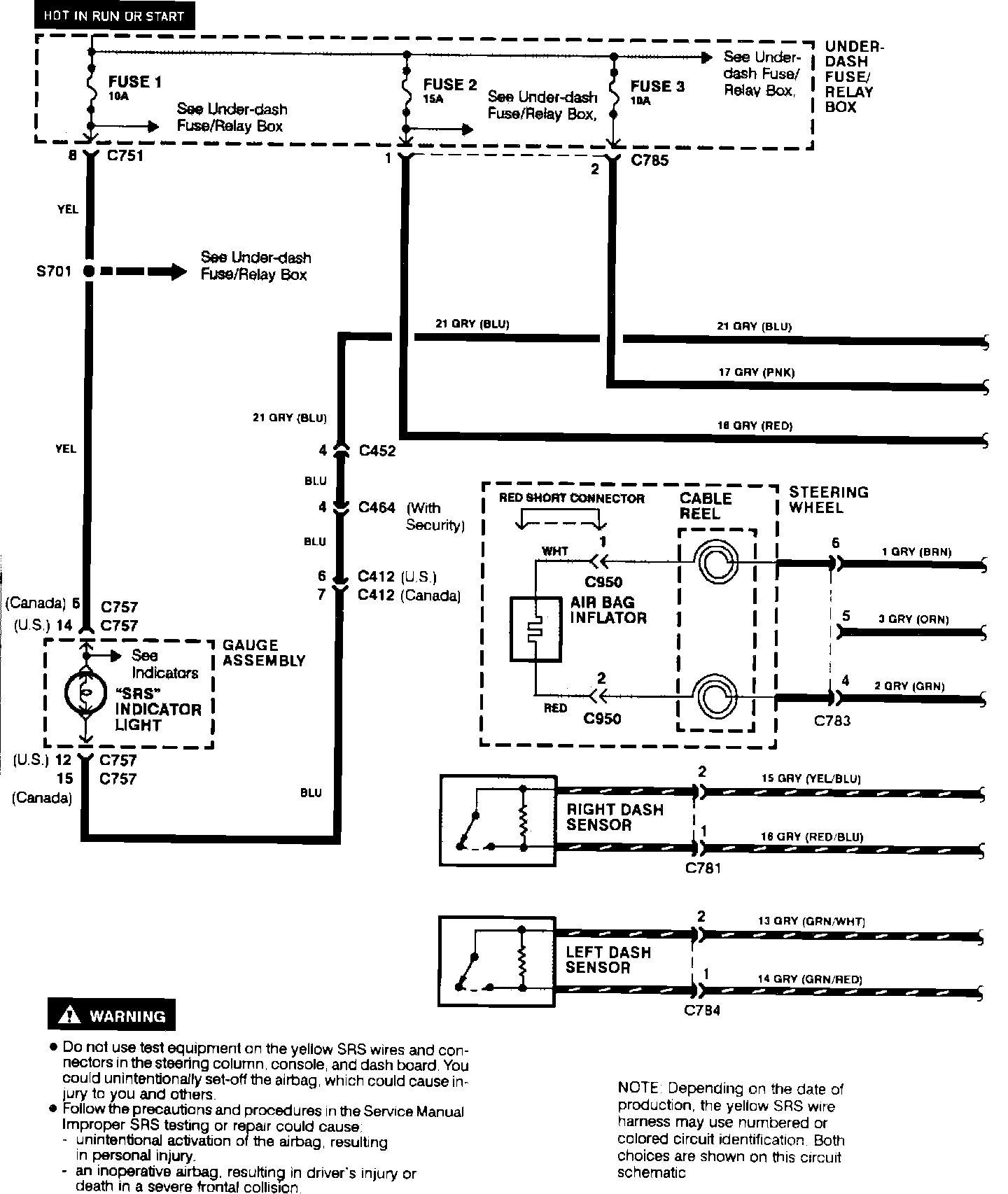

Fig. 4 SRS System Circuit Wiring Diagram:

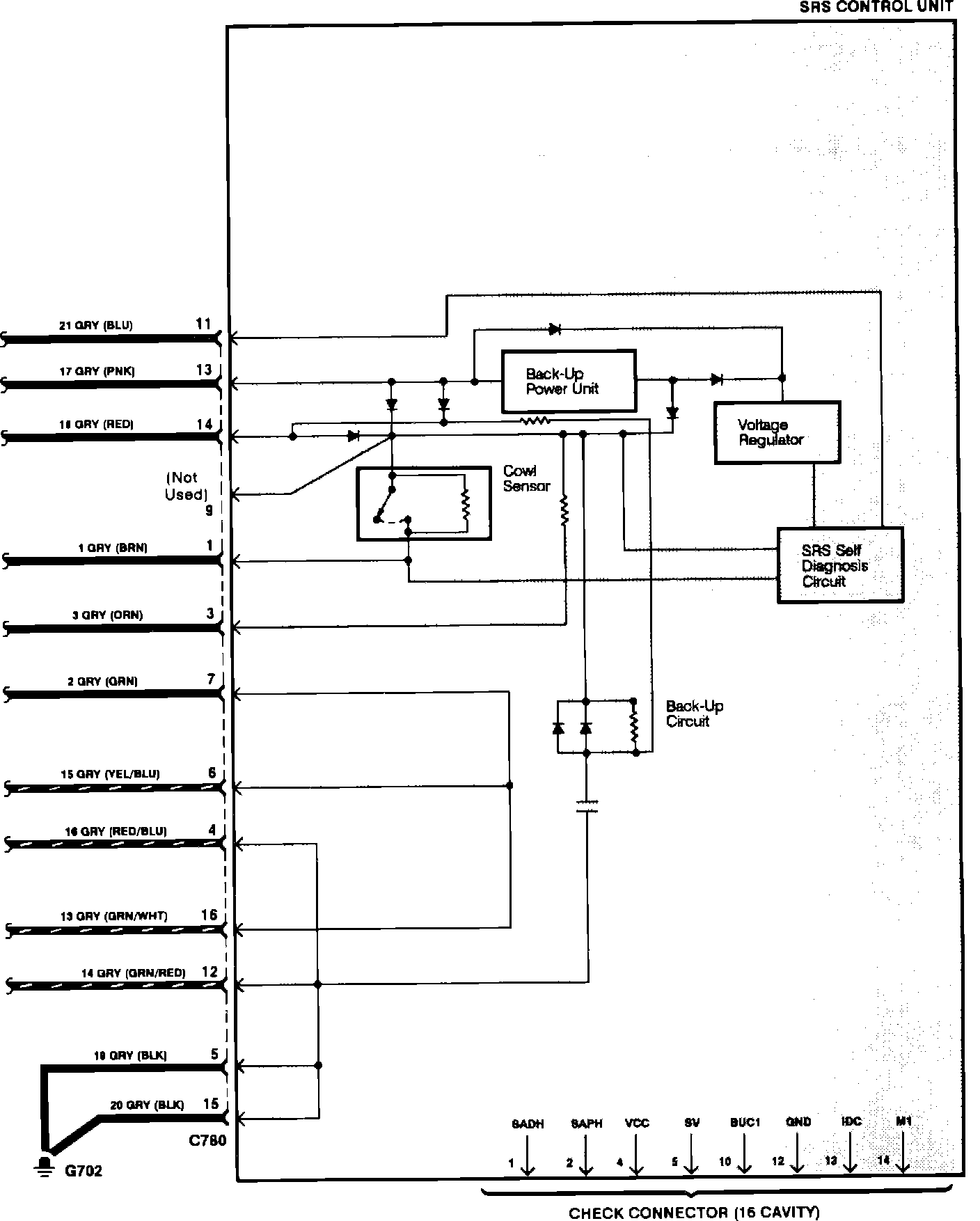

Supplemental Restraint System:



Supplemental Restraint System:
