Wiring Schematics

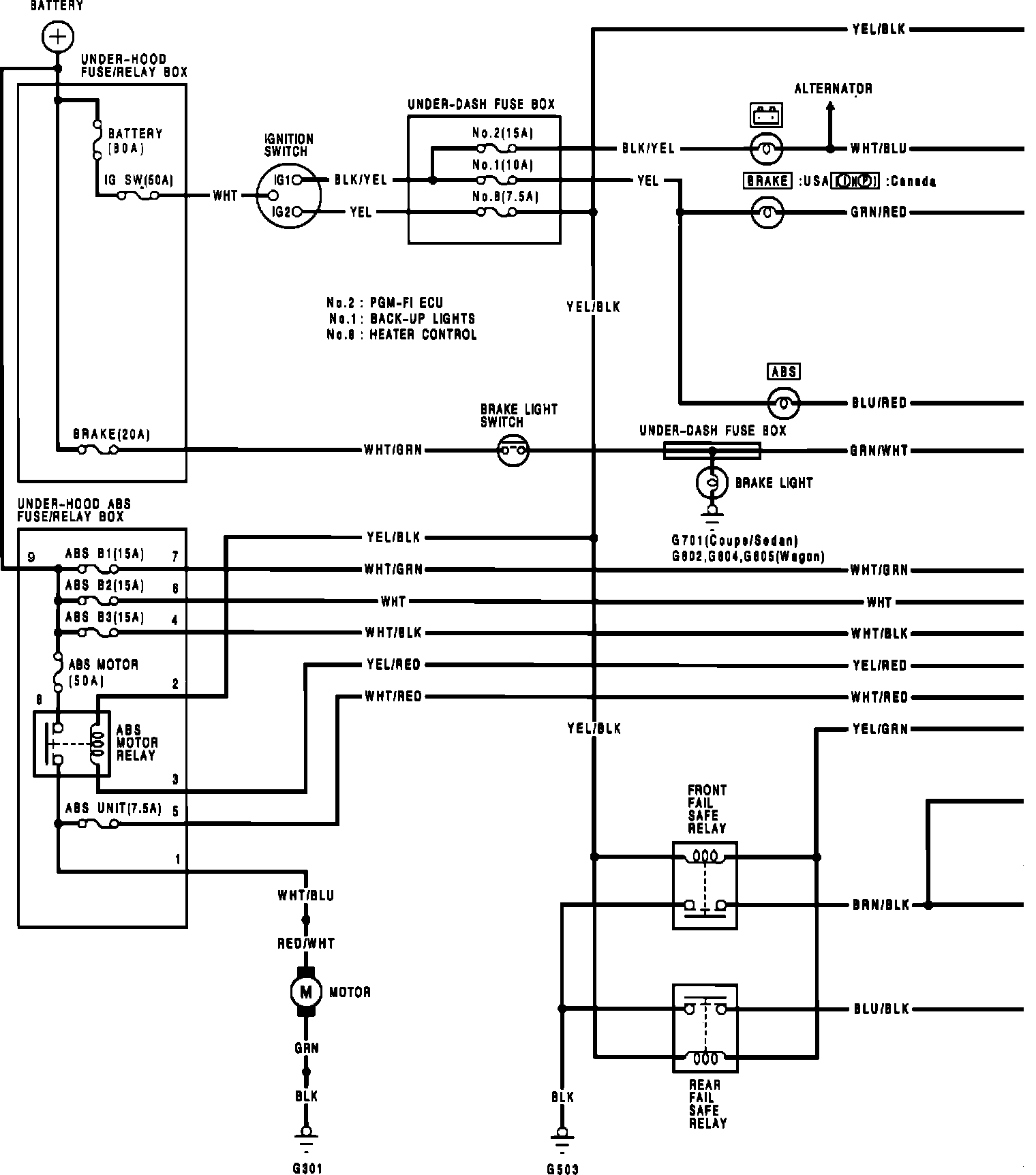

Fig. 16 ABS Wiring Circuit 1992 Accord (Part 1 Of 2):

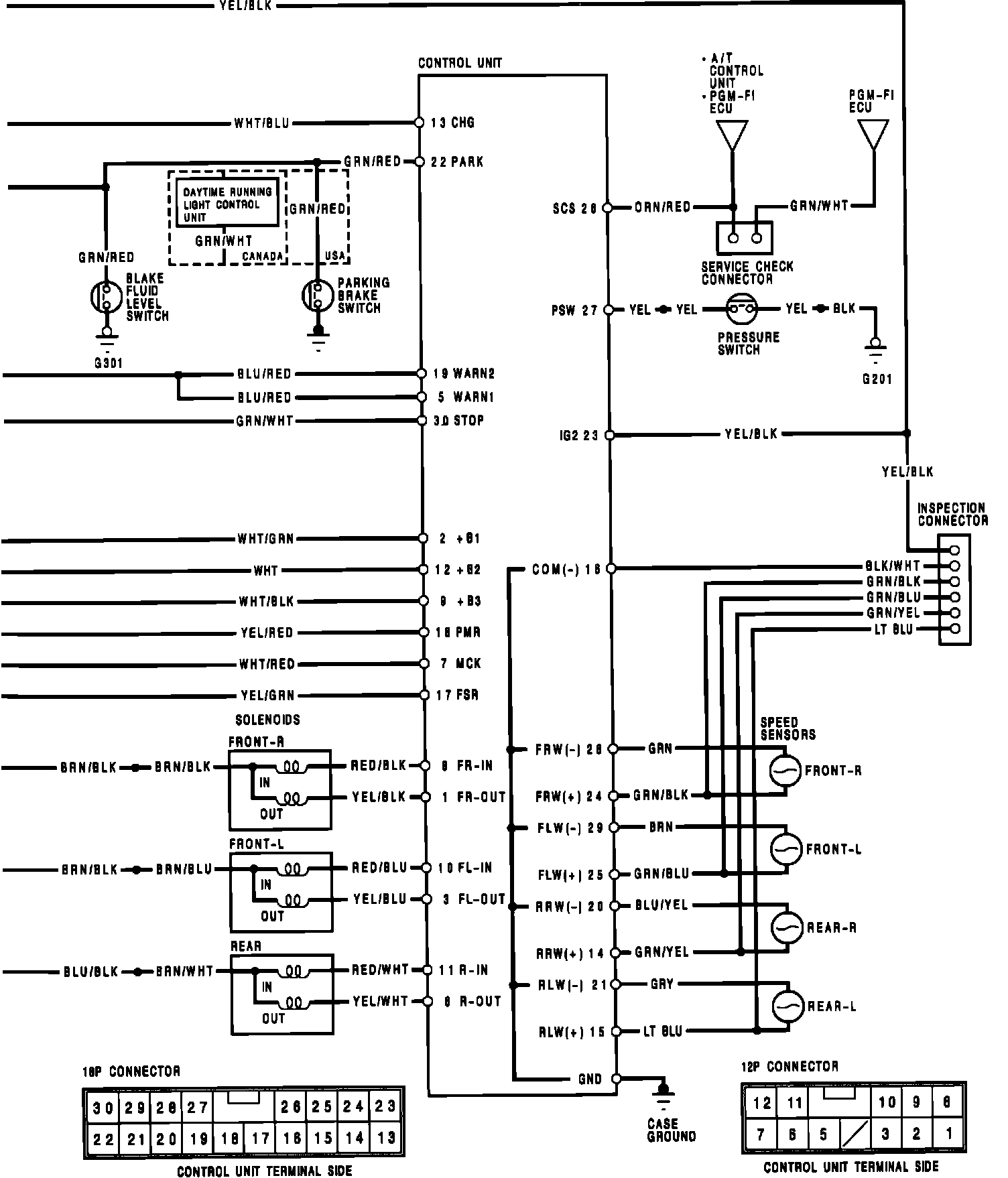

Fig. 16 ABS Wiring Circuit. 1992 Accord (Part 2 Of 2):
