Coupe and Sedan

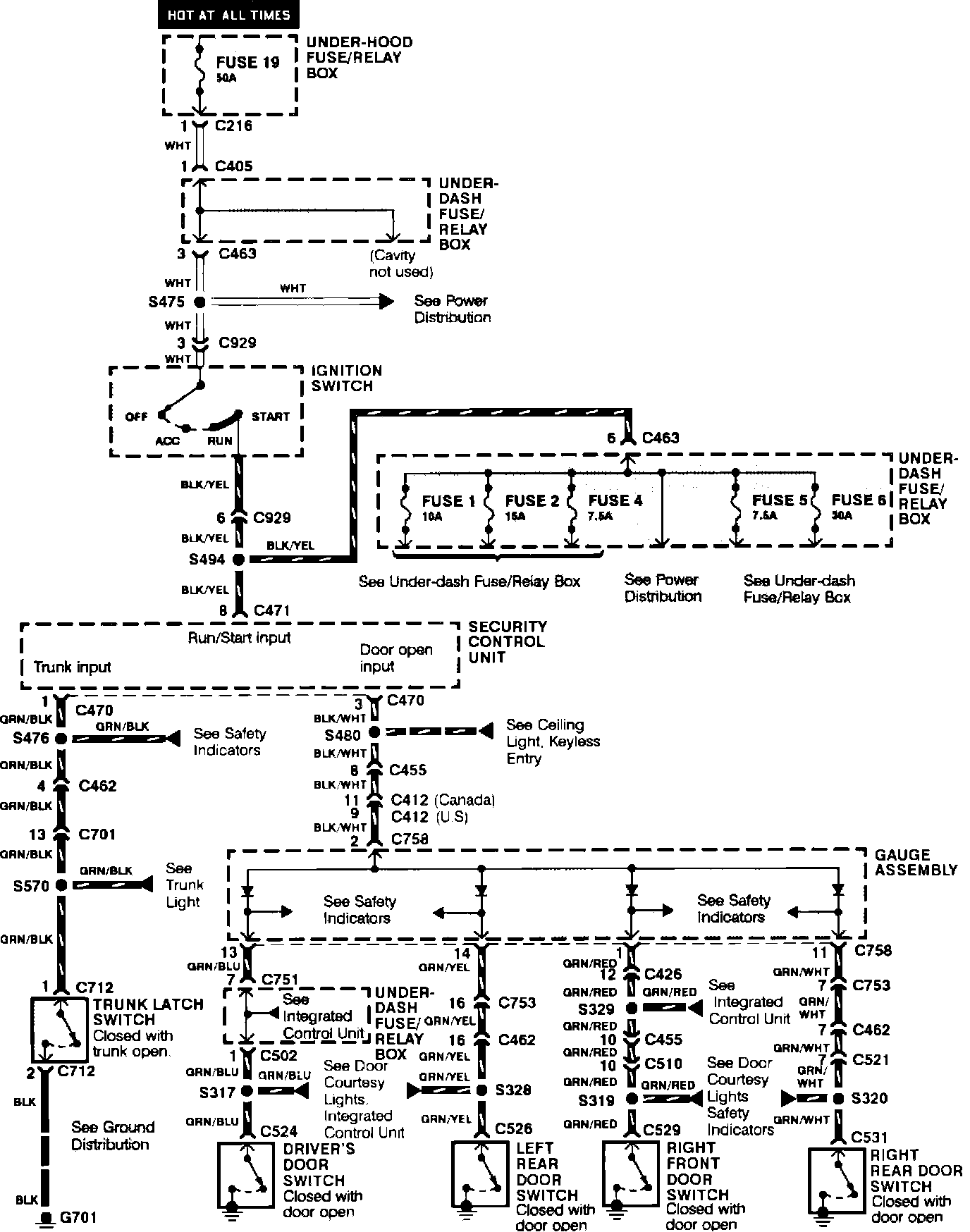

Security System (Coupe & Sedan):

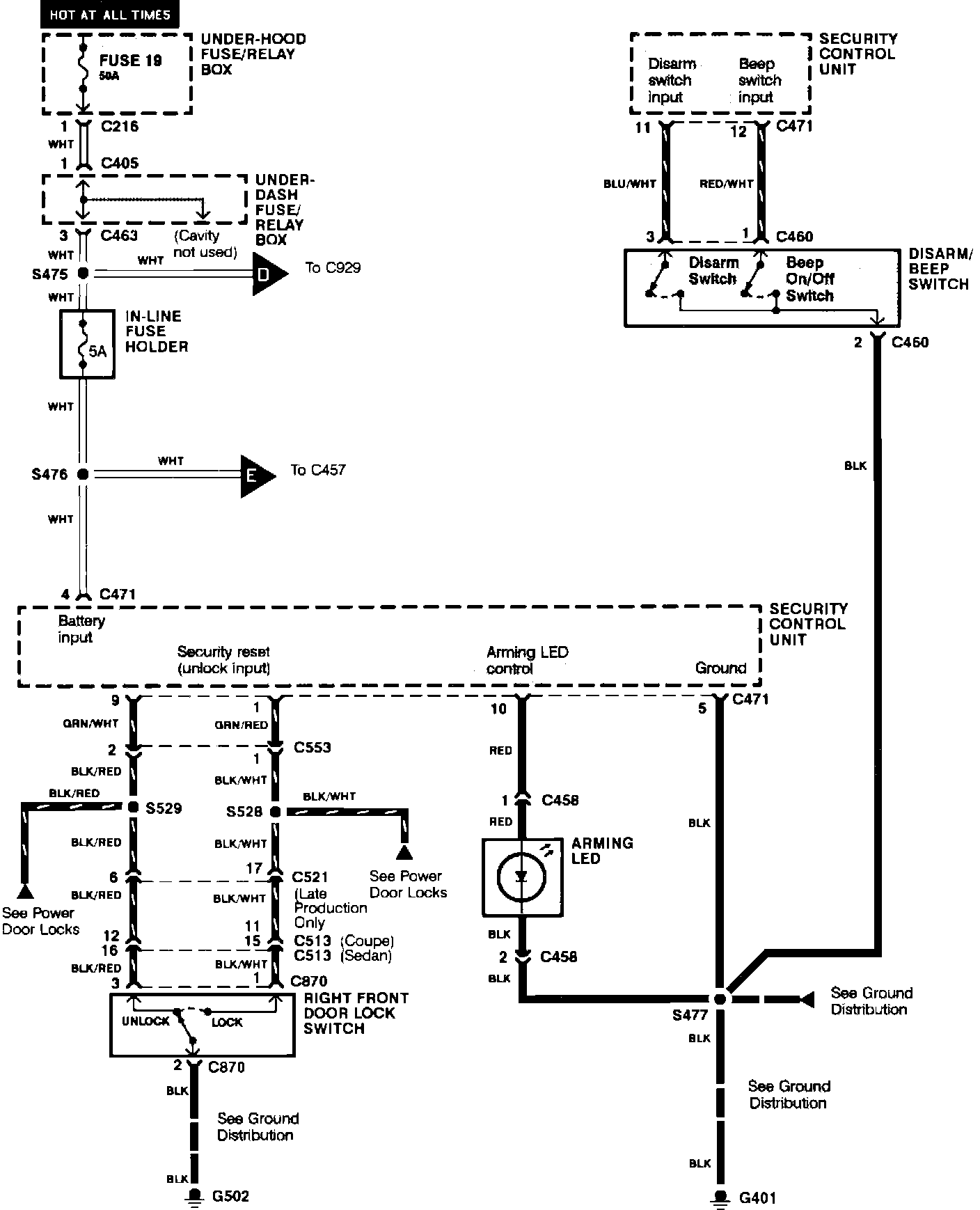

Security System (Coupe & Sedan):

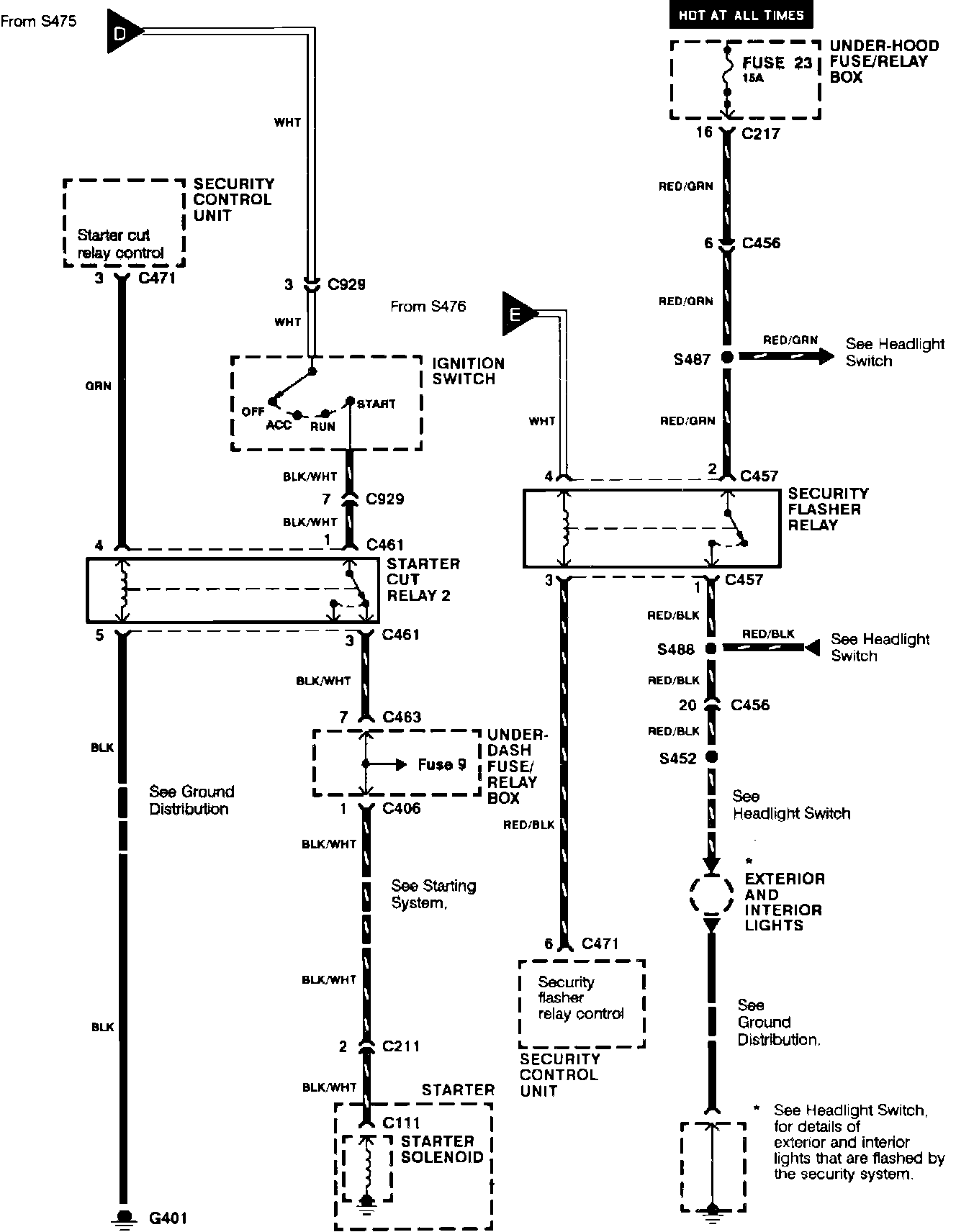

Security System (Coupe & Sedan):



Security System (Coupe & Sedan):
