Home >> Honda >> 1992 >> Accord L4-2156cc 2.2L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antitheft and Alarm Systems >> Wagon (LX)

Wagon (LX)

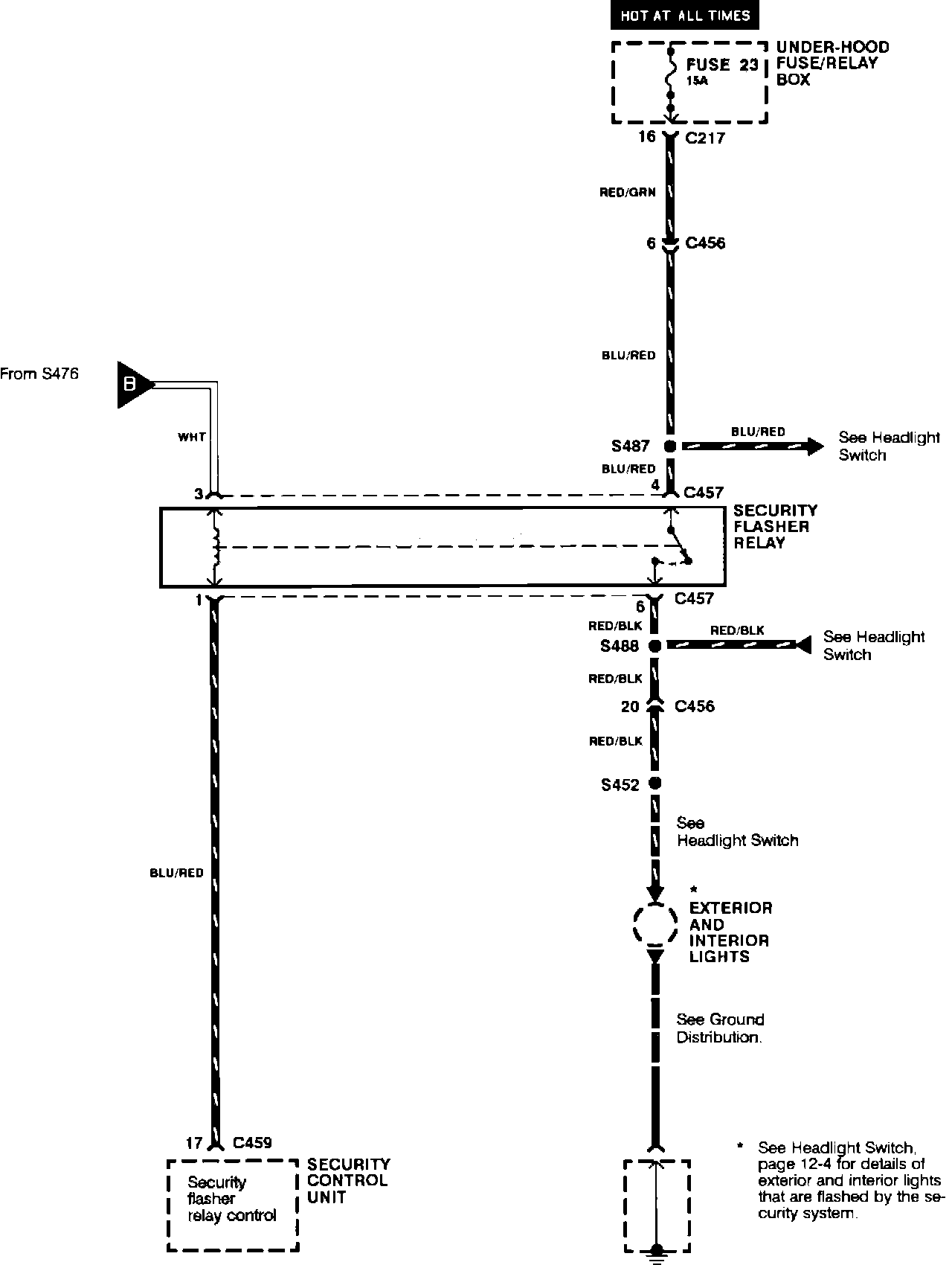

Security System (LX Wagon):



Security System (LX Wagon):



Security System (LX Wagon):



Security System (LX Wagon):
