Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
1992
>>
Accord L4-2156cc 2.2L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cruise Control
>>
With Air Bag
With Air Bag

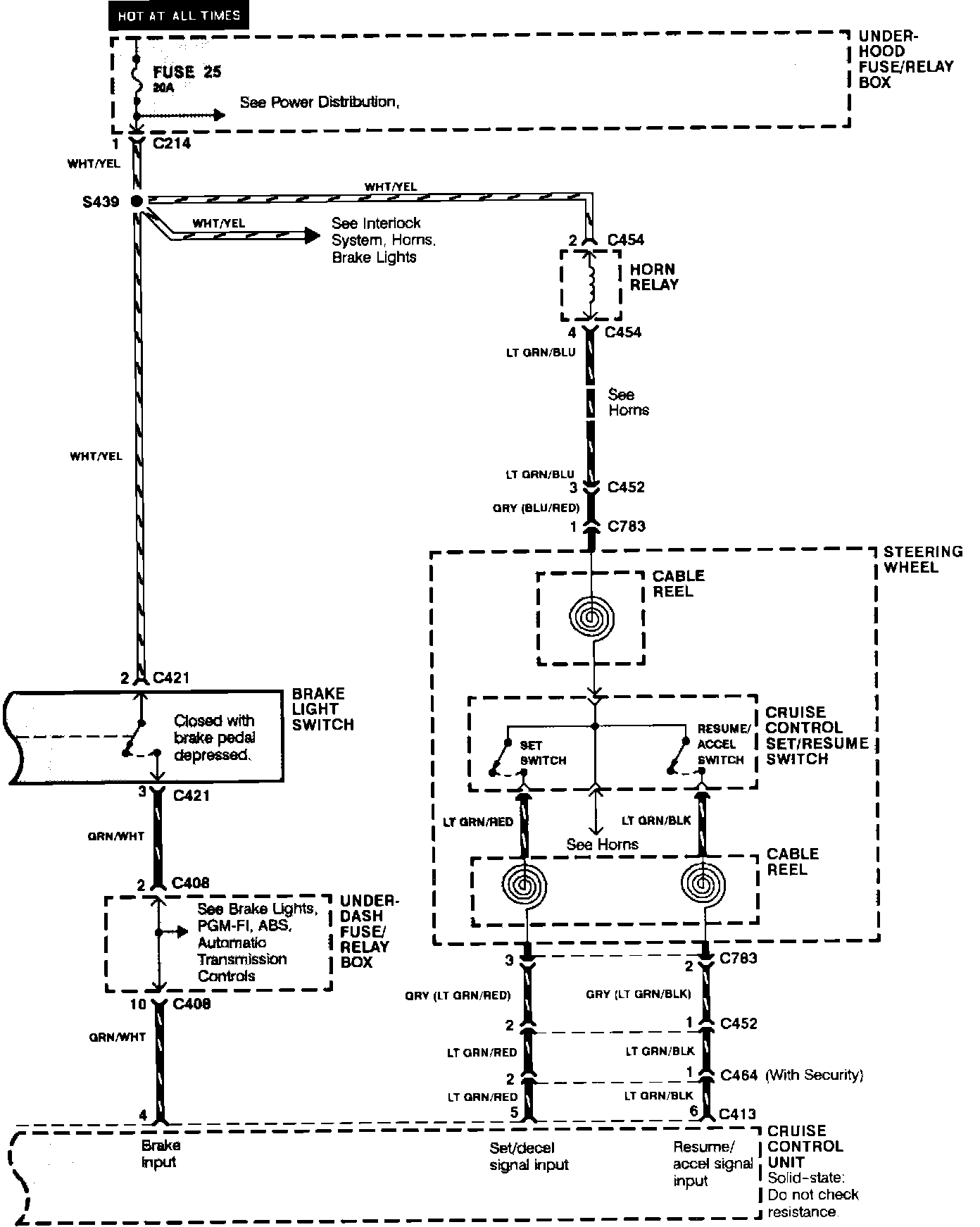

Cruise Control With SRS - 1 Of 4:

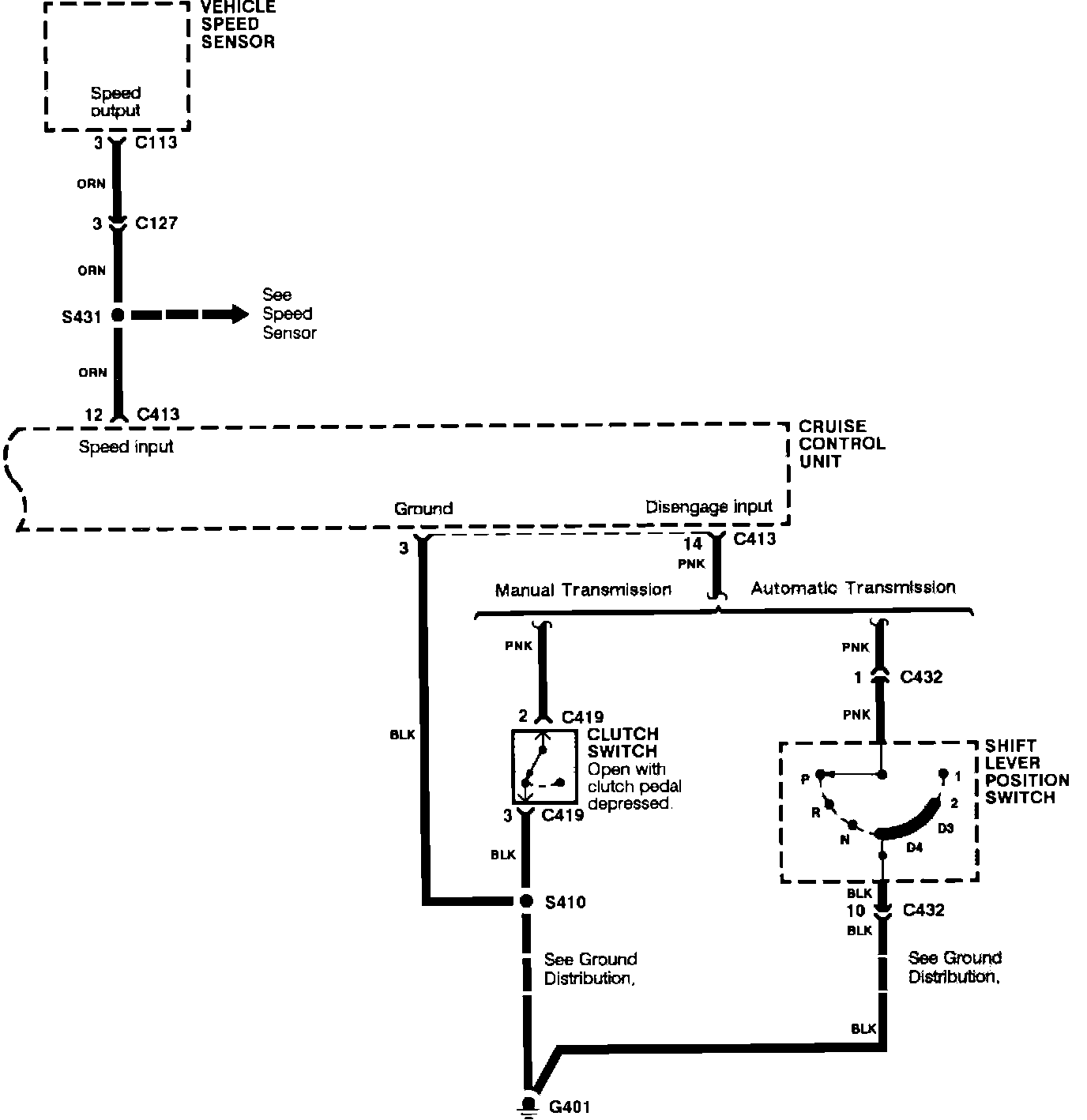

Cruise Control - 4 Of 4:

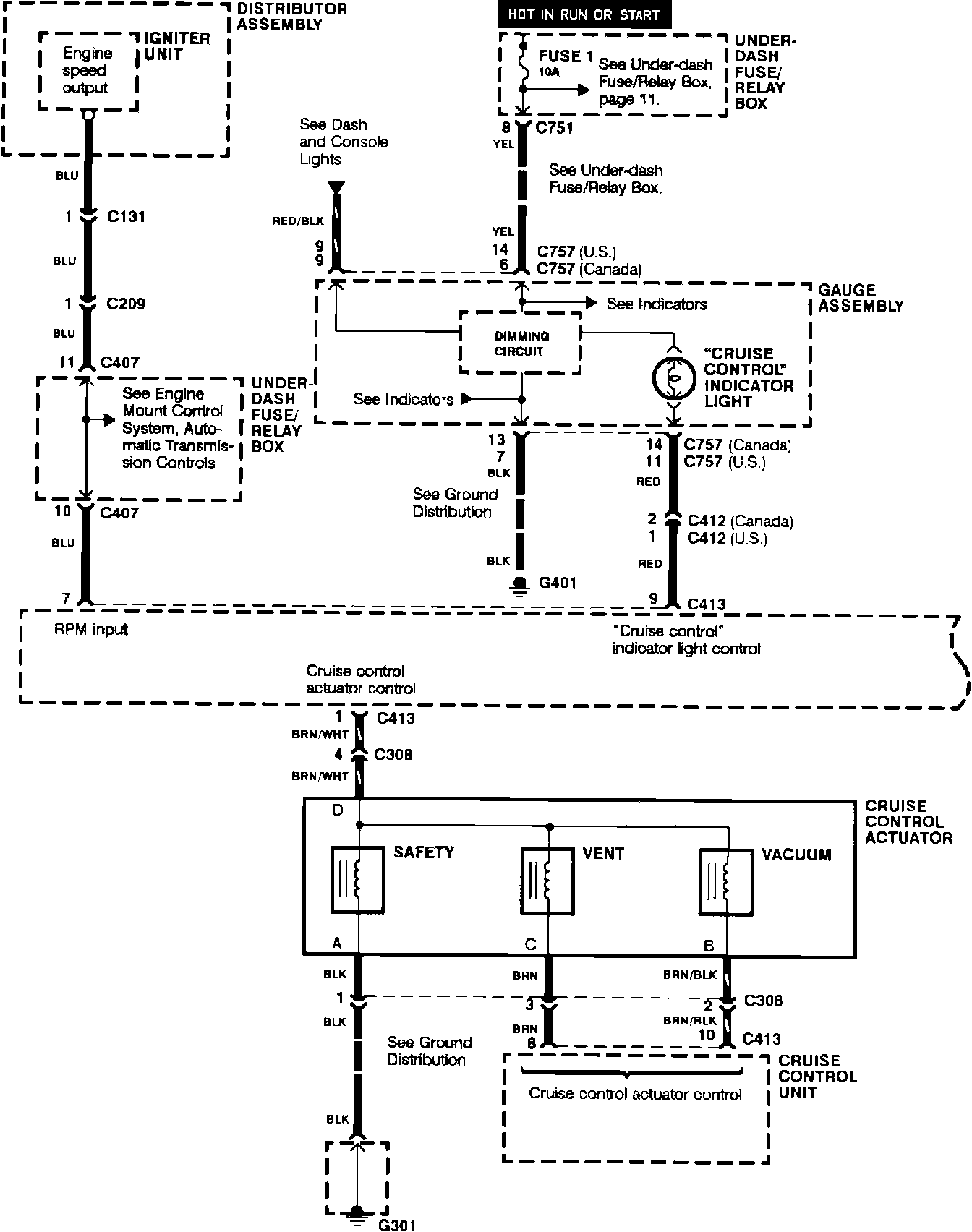

Cruise Control - 3 Of 4:
Cruise Control With SRS - 2 Of 4:
