Home >> Honda >> 1992 >> Accord L4-2156cc 2.2L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power Locks >> Coupe and Sedan

Coupe and Sedan

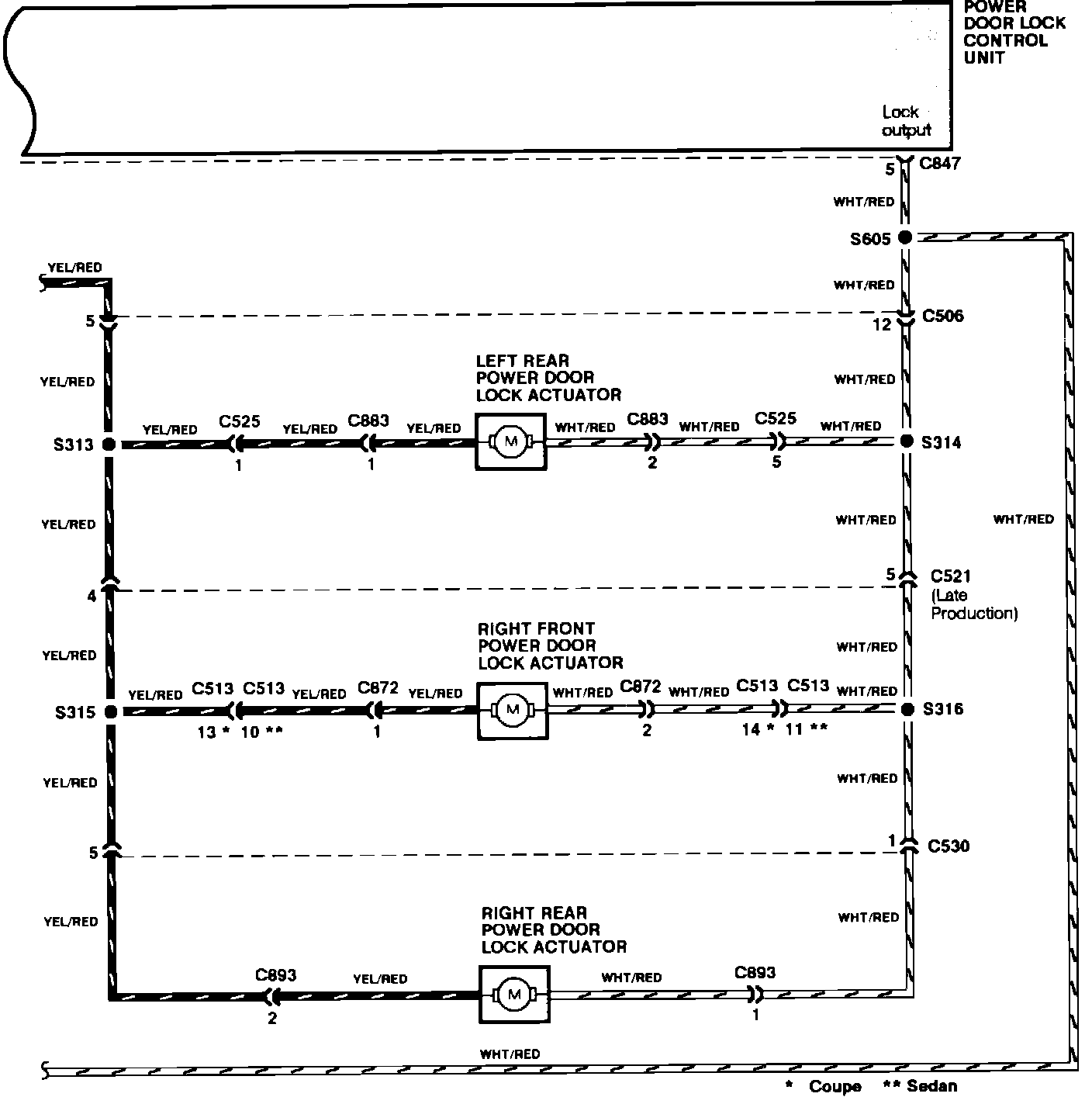

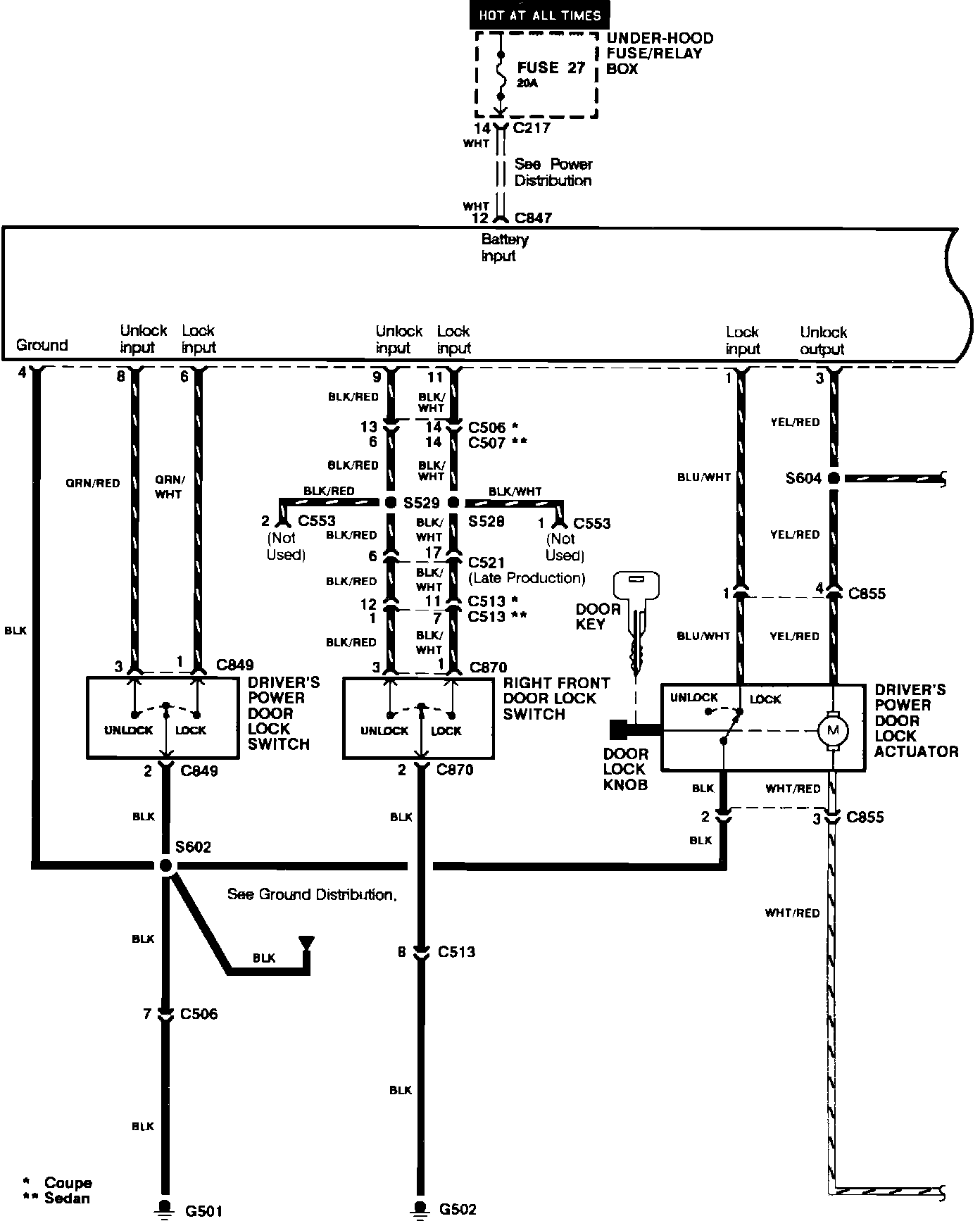

Power Door Locks (Coupe And Sedan):



Power Locks (Coupe & Sedan):
