Turn Signals
>>
Coupe and Sedan
Coupe and Sedan
Indicators:

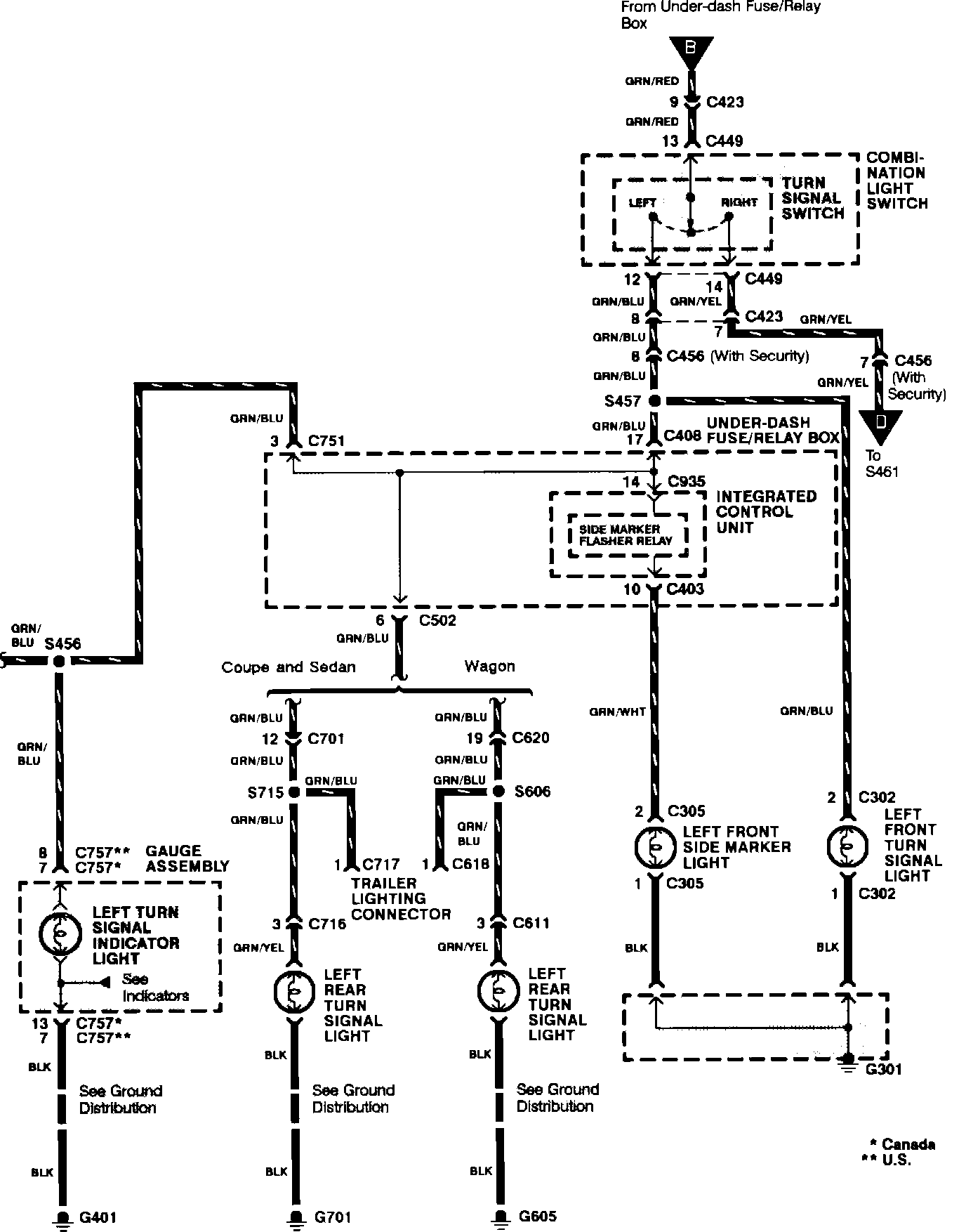

Turn Signal, Front Side Marker, And Hazard Lights:
Turn Signal, Front Side Marker, And Hazard Lights:
Turn Signal, Front Side Marker, And Hazard Lights:
