Home >> Honda >> 1992 >> Accord L4-2156cc 2.2L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Windows >> Front Door

Front Door

Driver's Door:

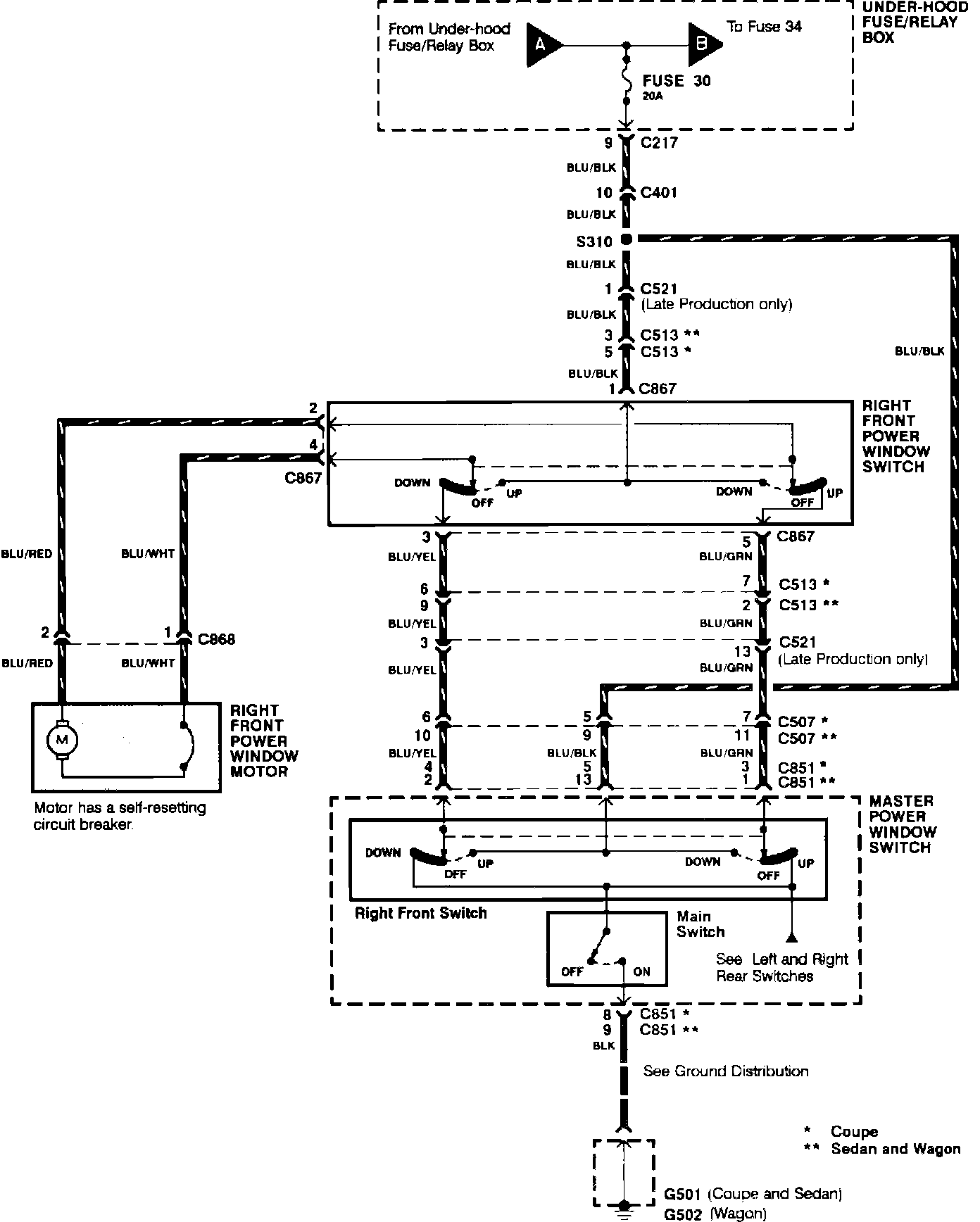

Power Windows (Right Front Door):
