Terminals

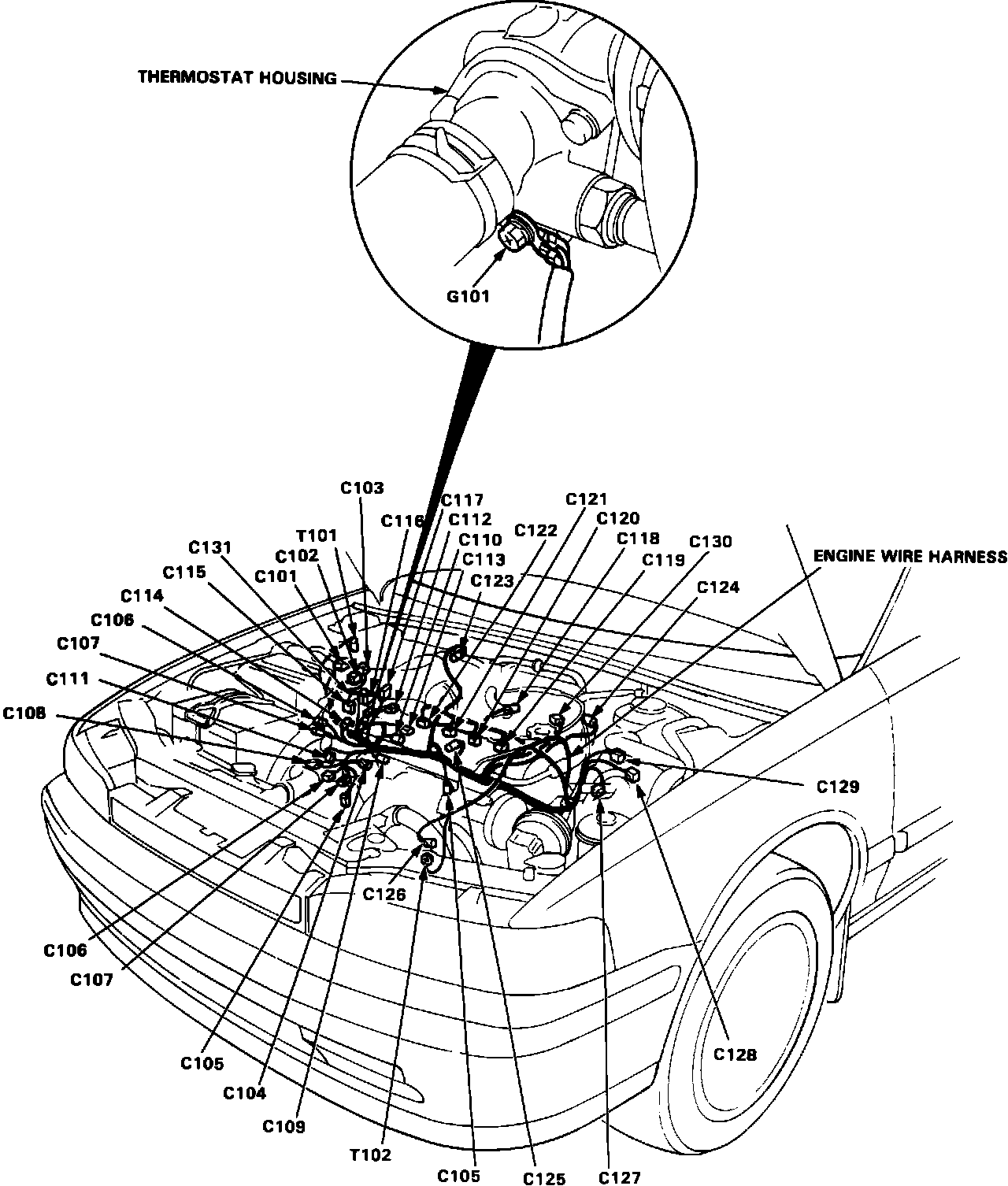

Engine Wire Harness:

T1: Right rear corner of engine compartment, on under-hood fuse/relay box
T2: Right side of engine, on starter solenoid
T3: Lower right front of engine compartment, on transmission
T4: Top left front of engine, on valve cover
T5: Top left front of engine, on power steering pump bracket
T101: Right rear corner of engine compartment, on under-hood fuse/relay box
T102: Lower left front of engine, on alternator
