Instrument Panel and Dash Components Removal and Installation

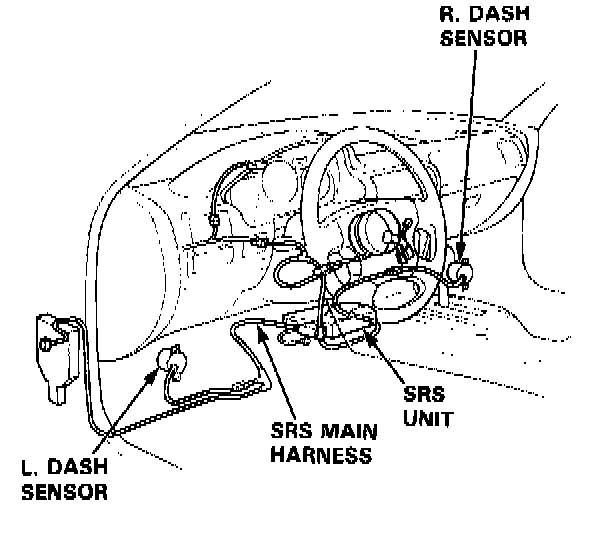

NOTE: SRS wire harnesses are routed near the dashboard and steering column.

CAUTION:
- All SRS electrical wiring harnesses are covered with yellow outer insulation.
- When disconnecting the SRS wire harness, install the short connector on the airbag, then disconnect the wire harness.
- Replace the entire affected SRS harness assembly if there is an open circuit or damage to the wiring.

NOTE: Take care not to scratch or score the dashboard and instrument panel.

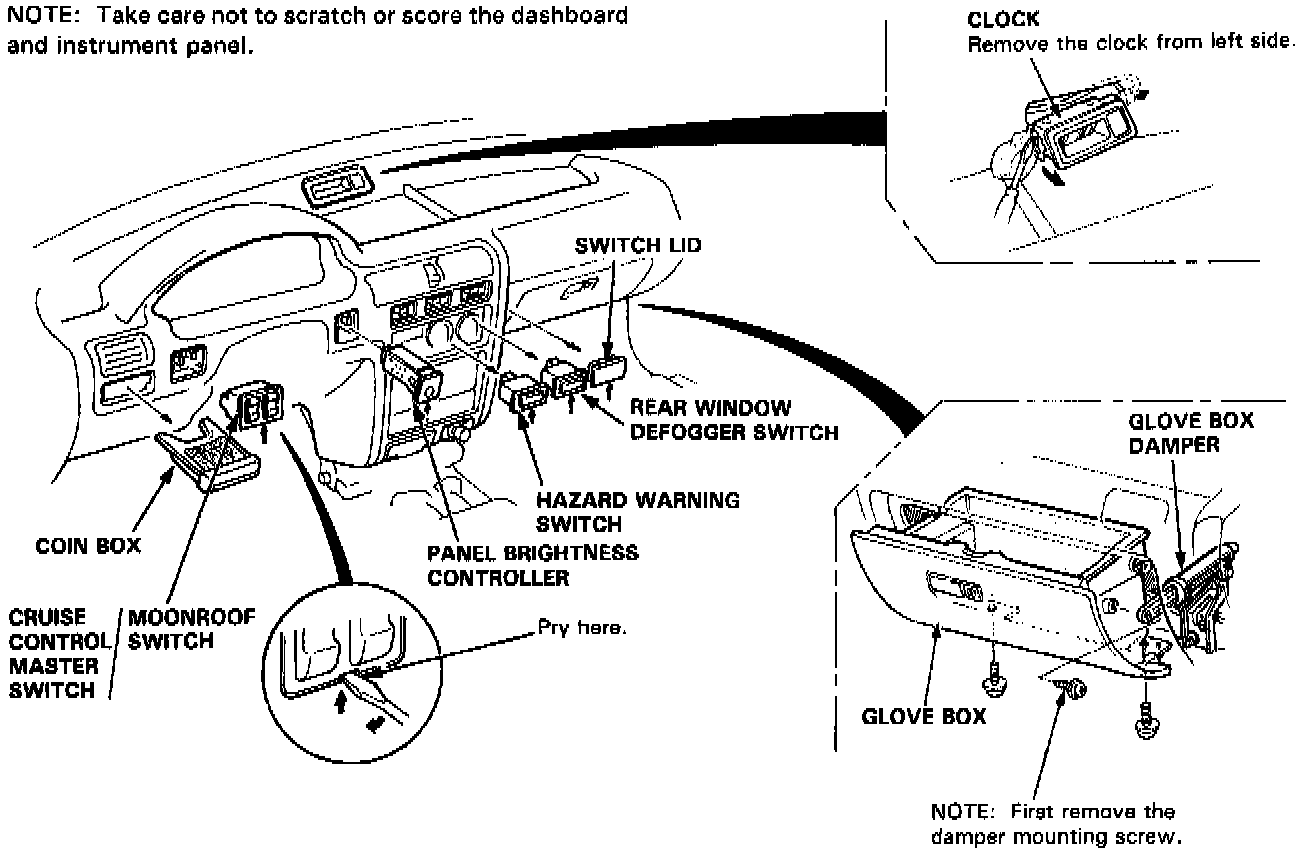

Instrument Panel Components:

Instrument Panel:

INSTRUMENT PANEL REMOVAL
1. Remove the following:
- Console
- Ashtray and ashtray holder
- Stereo cassette/radio
- Coil box, cruise control master switch, moon roof switch and panel brightness controller
- Side and center air vents
2. Remove the 12 mounting screws and disconnect the connectors.
