Dash, Glove Box Vanity Mirror and Console Lights

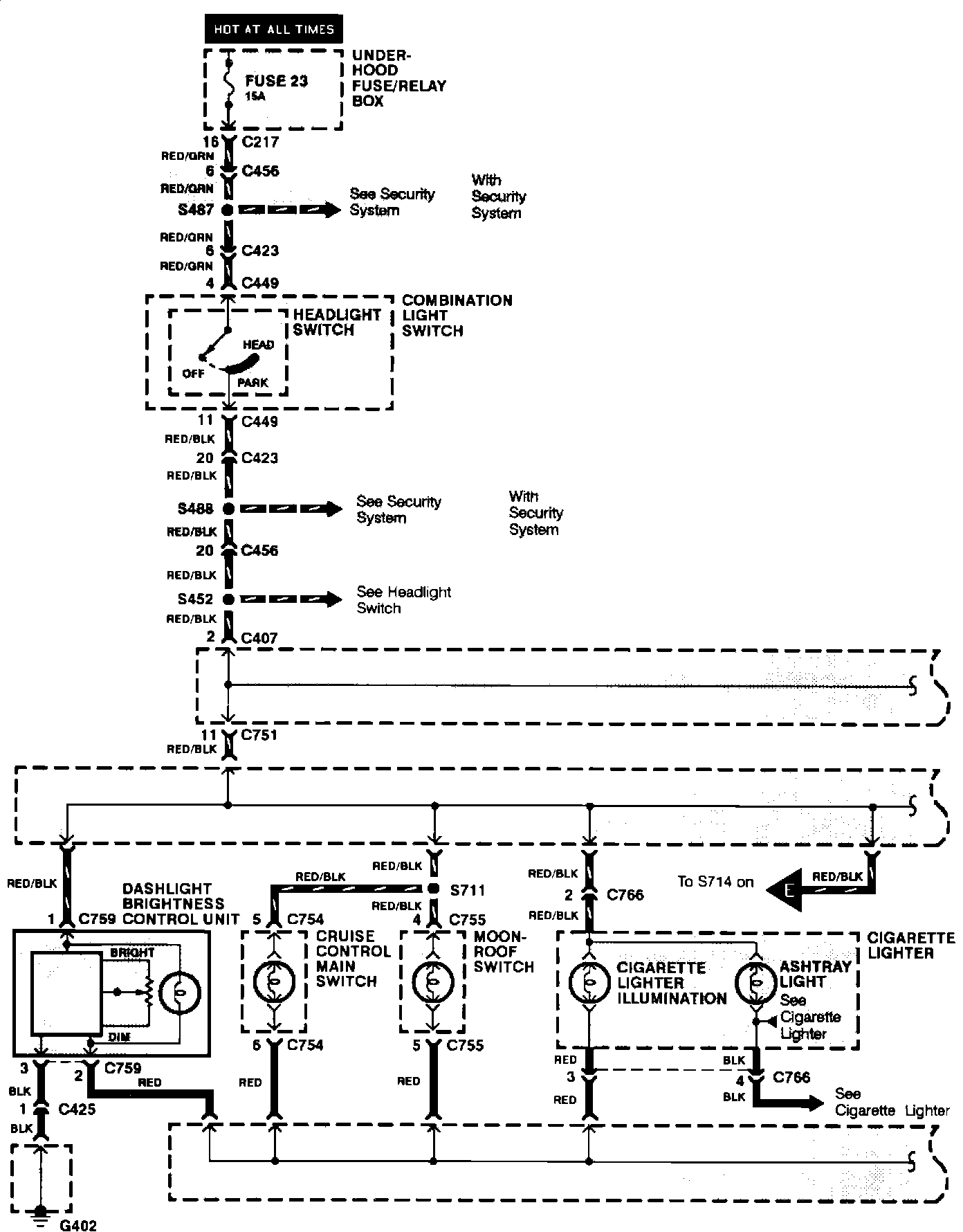

Dash, Glove Box, Vanity Mirror, And Console Lights:



Dash, Glove Box, Vanity Mirror, And Console Lights:



Dash, Glove Box, Vanity Mirror, And Console Lights:
