Power Distribution

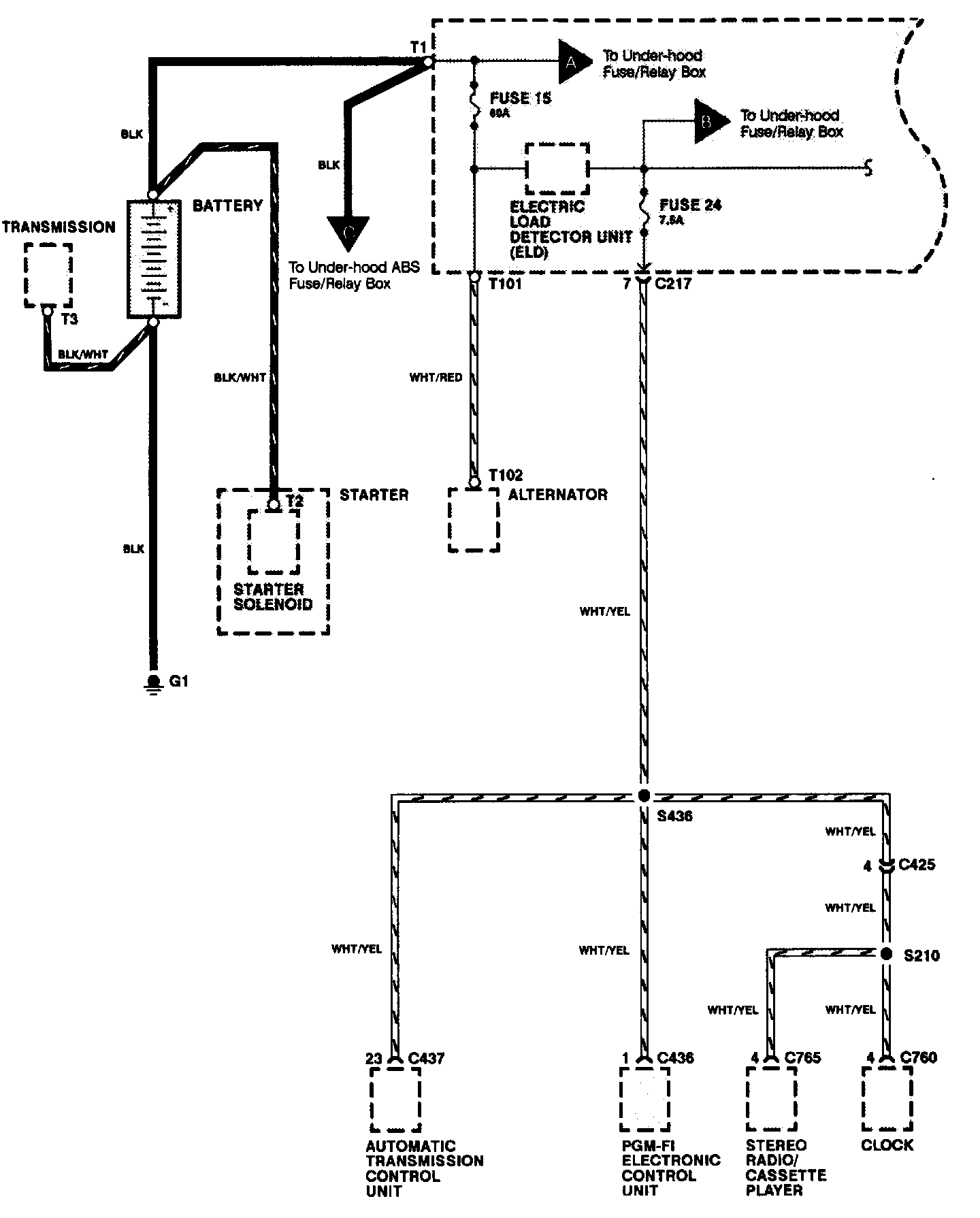

Part 1 Of 11 - Fuse 15, 24:

Part 2 Of 11 - Fuse 17, 18, 23:

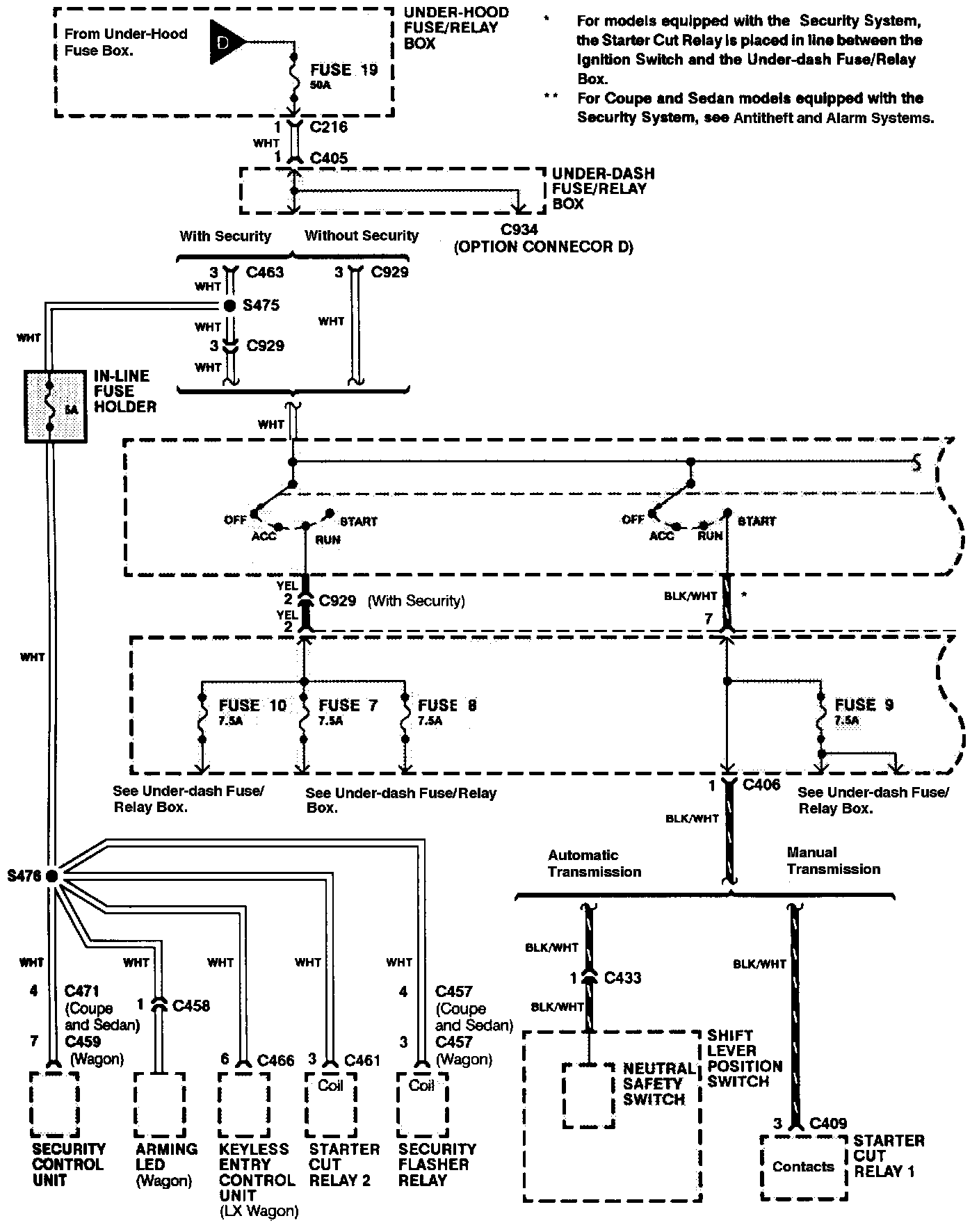

Part 3 Of 11 - Fuse 7, 8, 9, 10, 19:

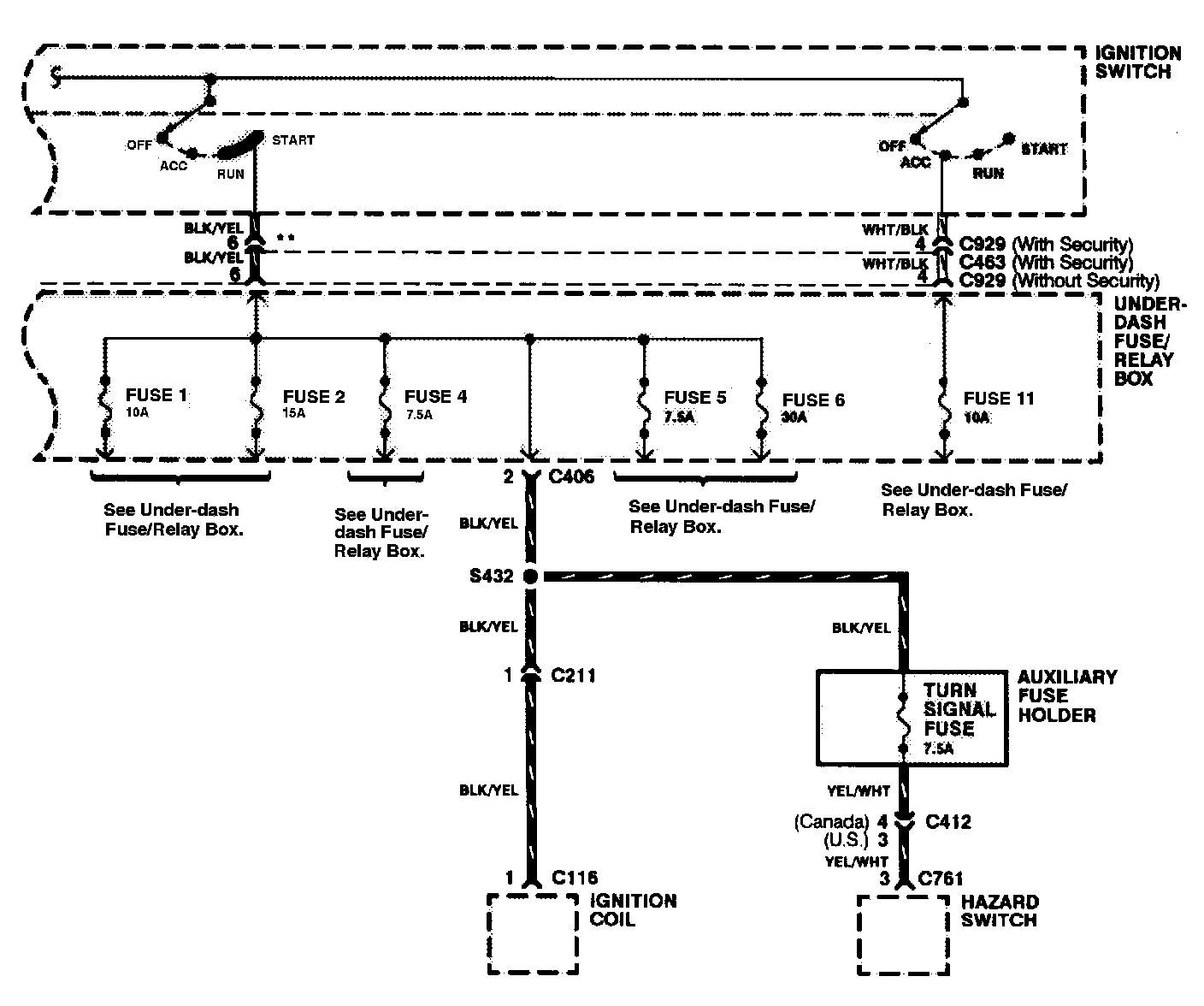

Part 4 Of 11- Fuse 1, 2, 4, 5, 6, 11:

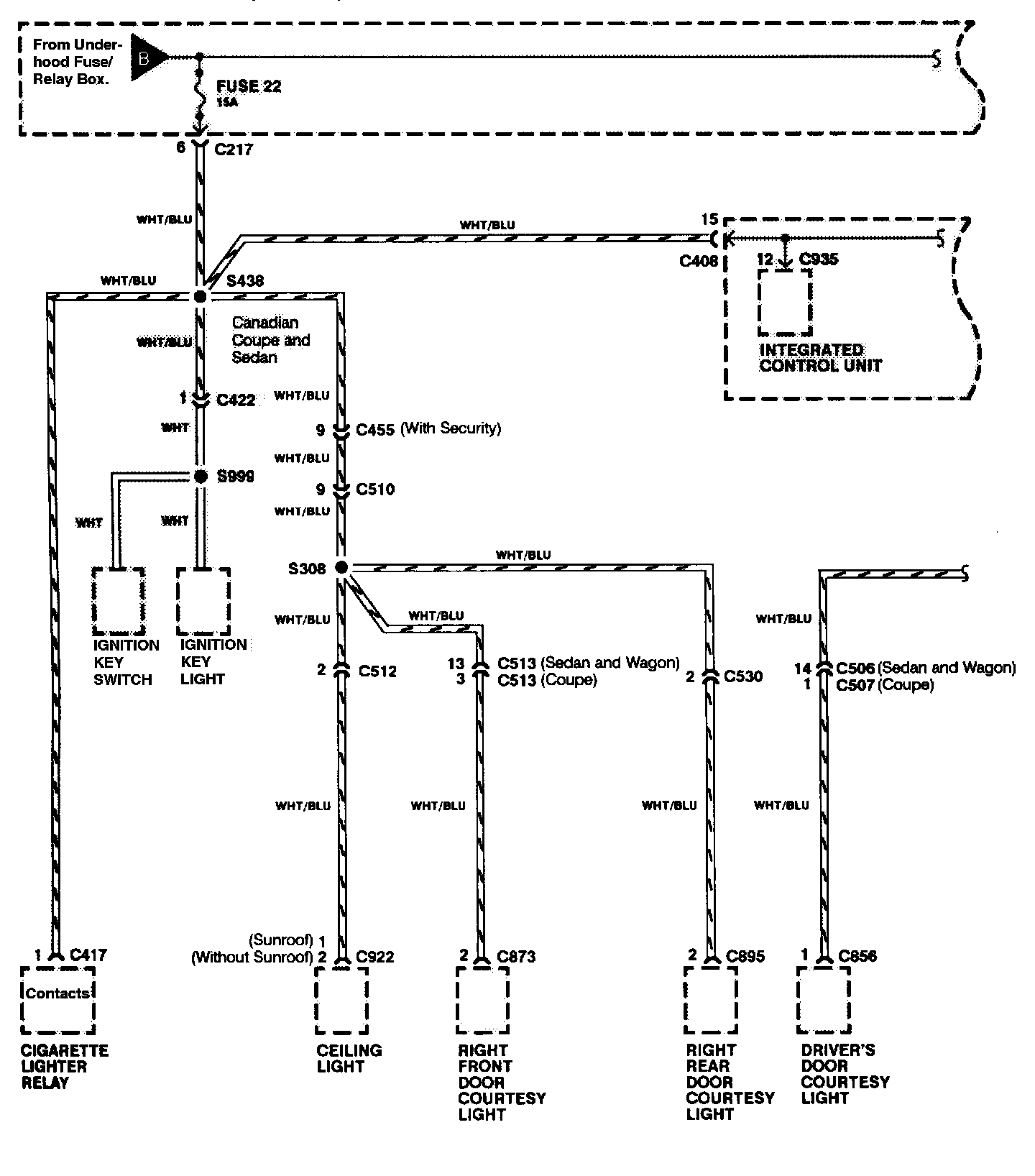

Part 5 Of 11 - Fuse 22:

Part 6 Of 11 - Fuse 20, 28:

Part 7 Of 11 - Fuse 30, 33:

Part 8 Of 11 - Fuse 27, 32, 34:

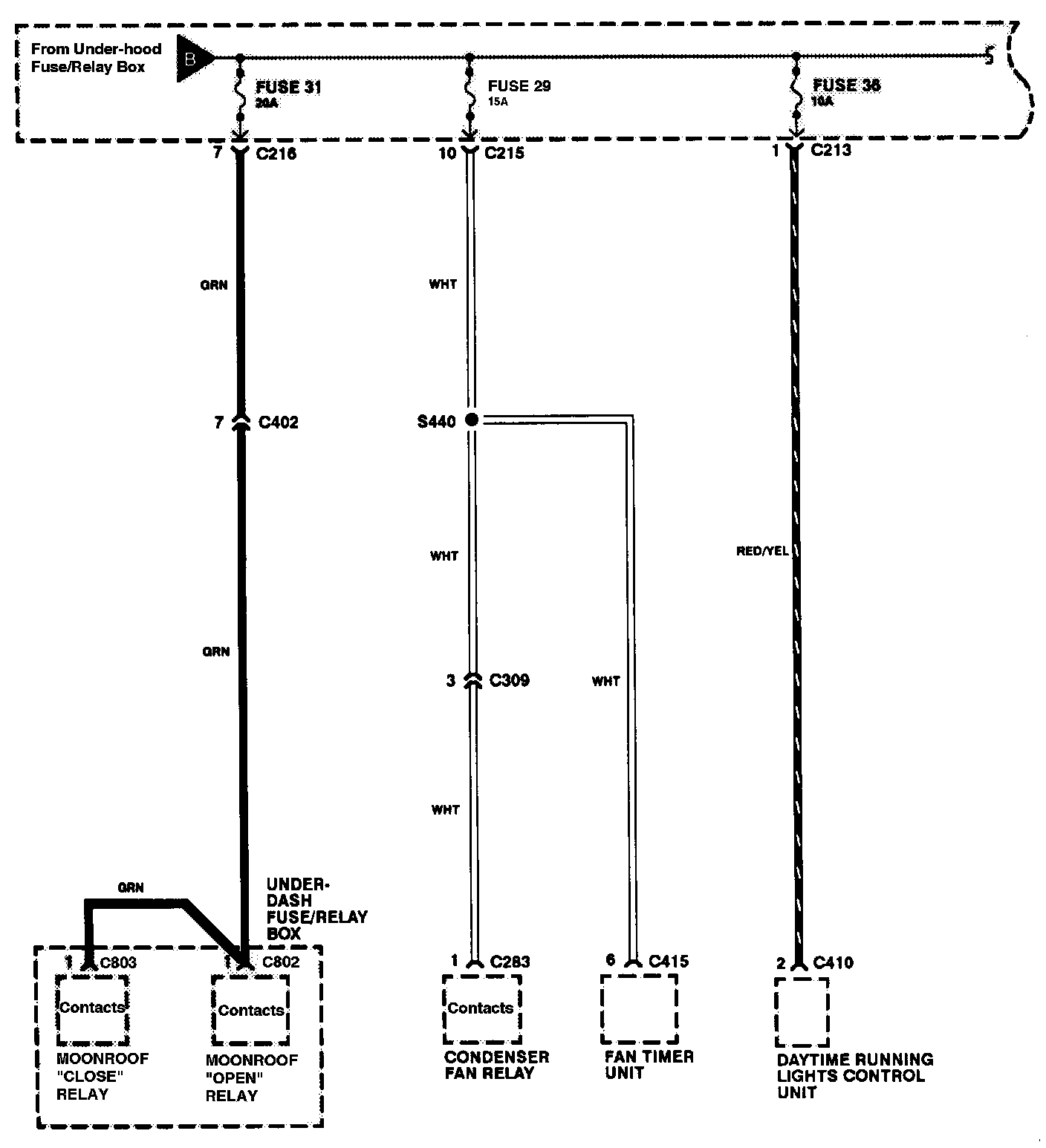

Part 9 Of 11 Fuse 29, 31, 36:

Part 10 Of 11 - Fuse 37, 38, 39:

Part 11 Of 11 - ABS 1, 2, 3 And ABS Motor:
