Accord L4-2156cc 2.2L SOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Locations
>>
Sedan
>>
G501, G502, G503
G501, G502, G503

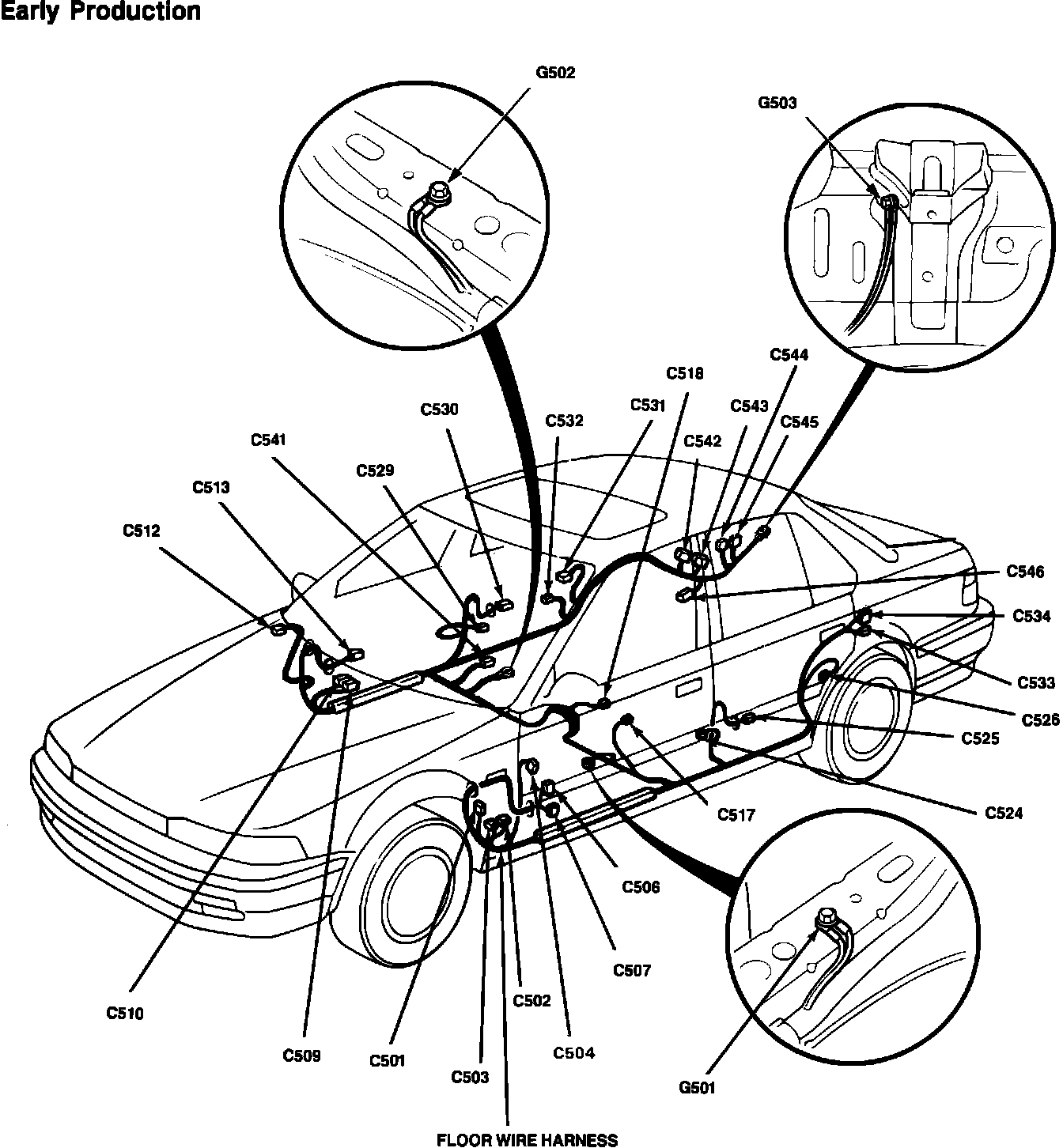

Floor Wire Harness (Sedan):

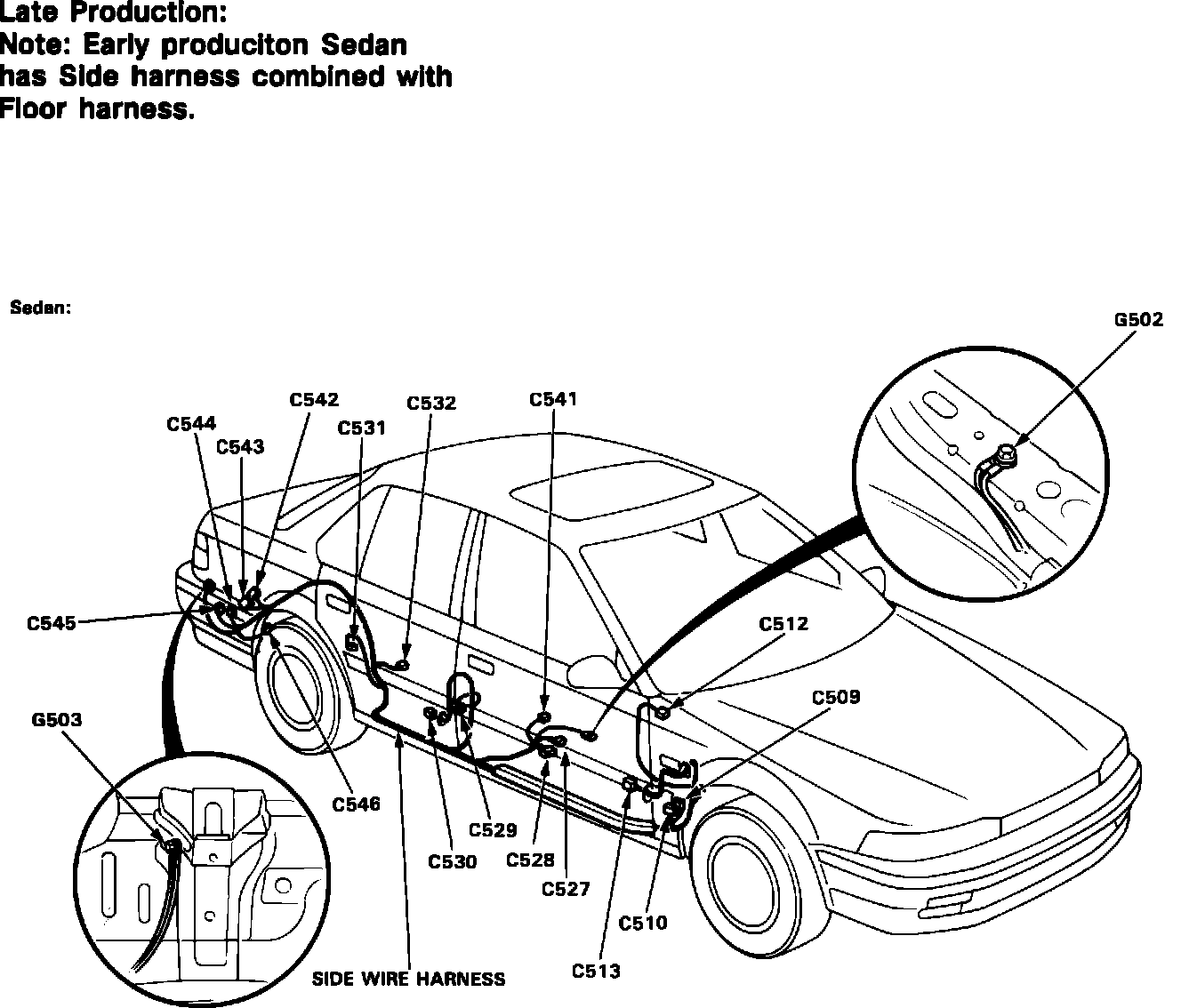

Side Wire Harness (Sedan):
