Computers and Control Systems: Locations

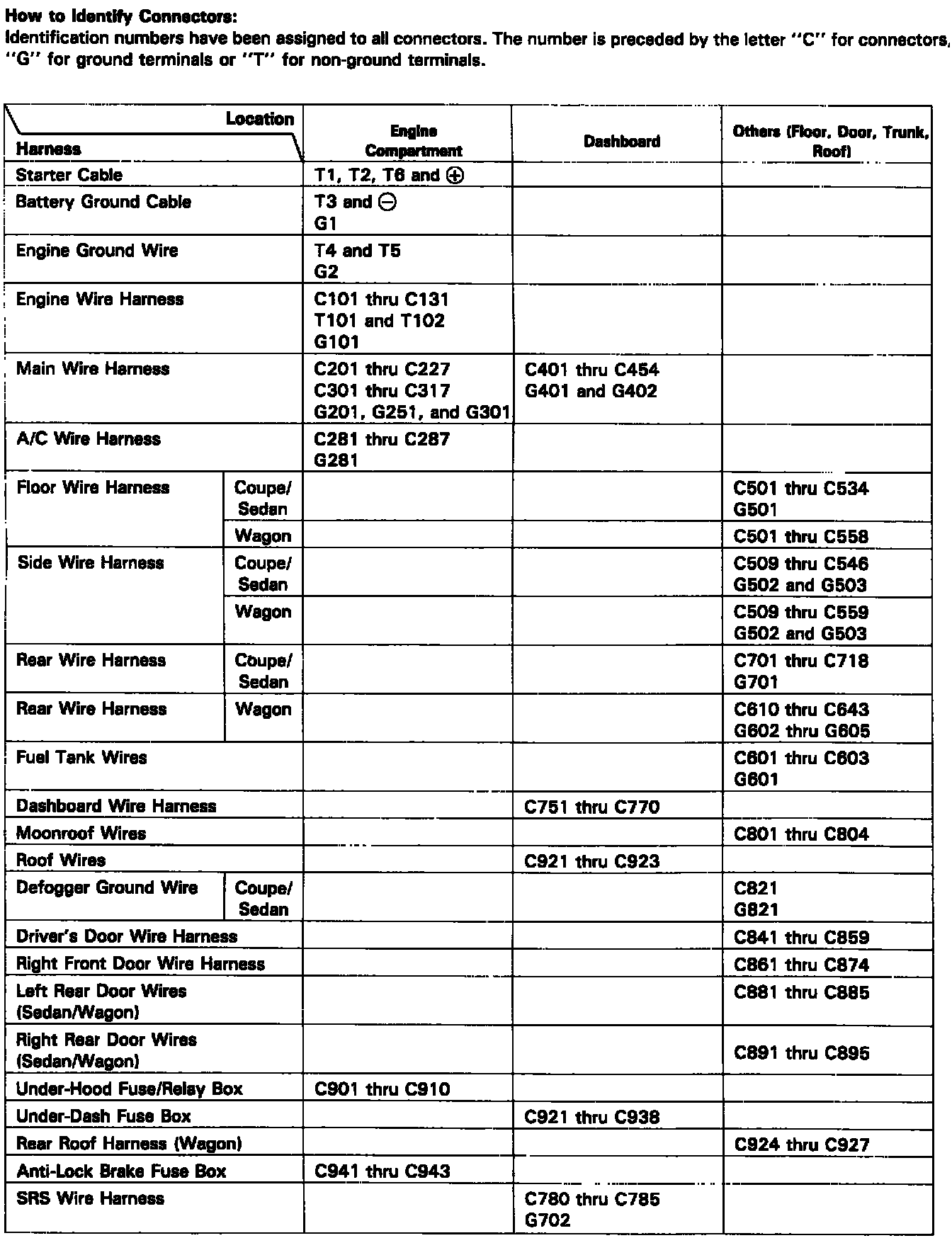

Connector Identification and Wire Harness Routing

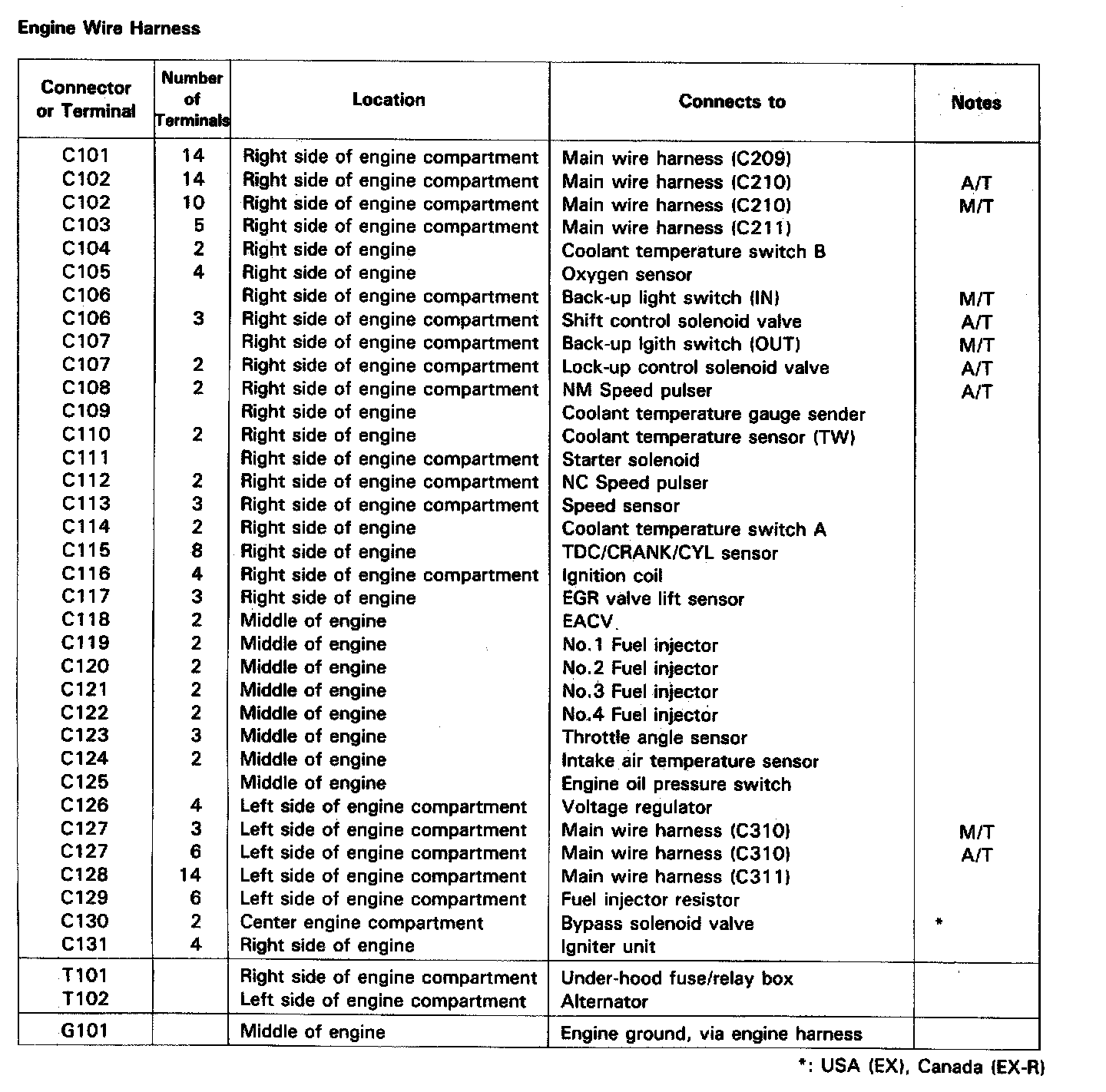

Engine Wire Harness

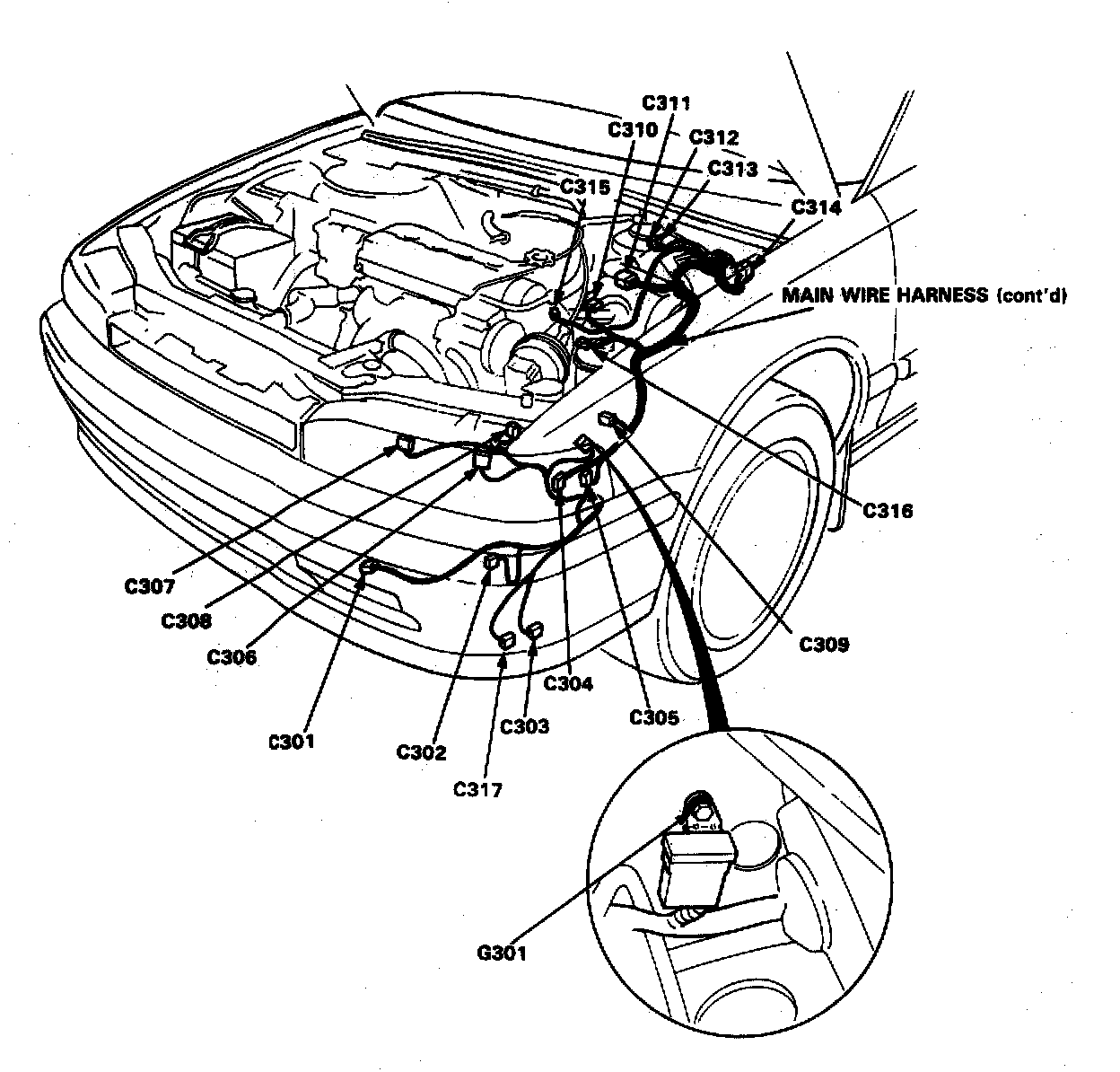

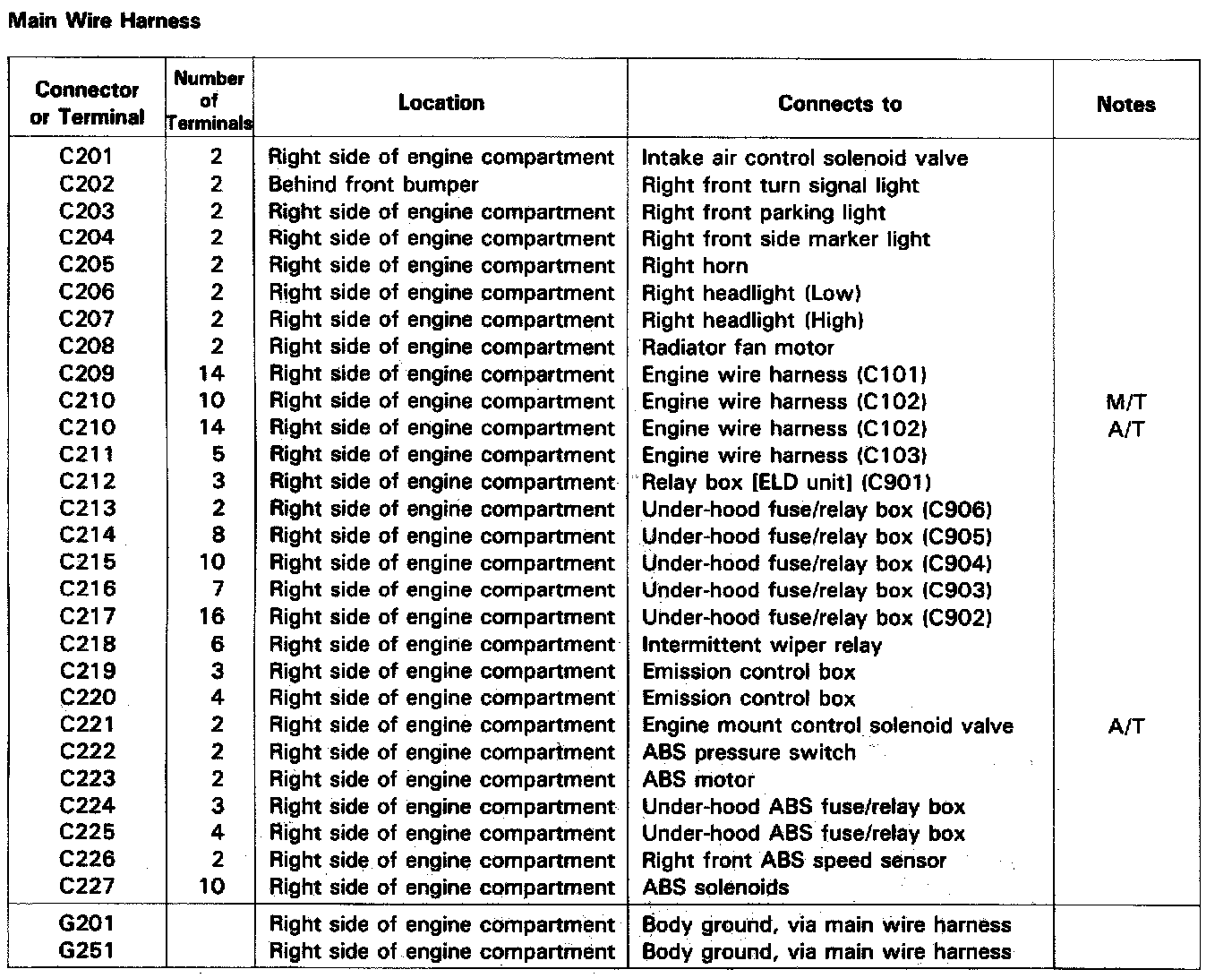

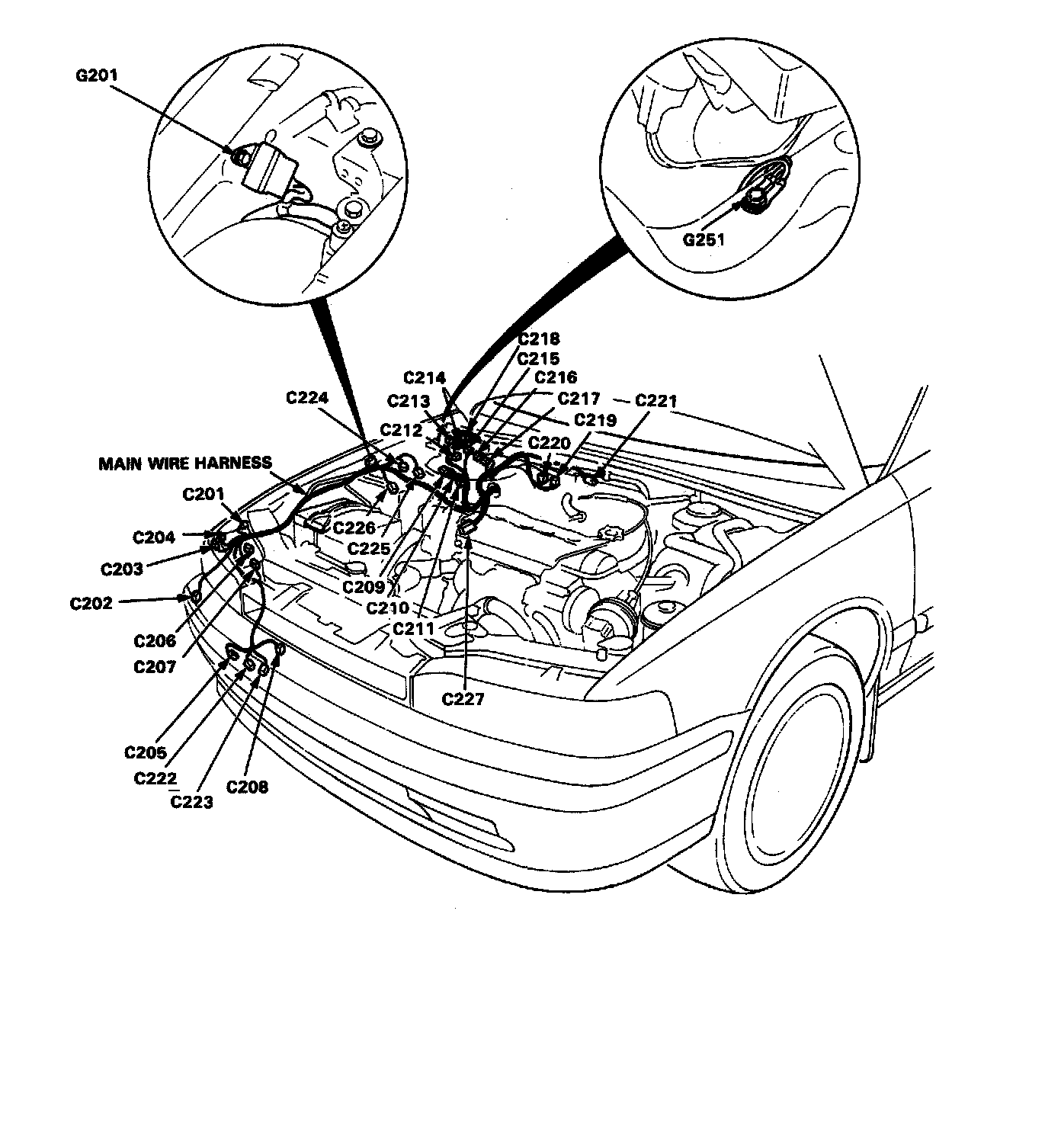

Main Wire Harness
Floor Wire Harness (Coupe/Sedan)

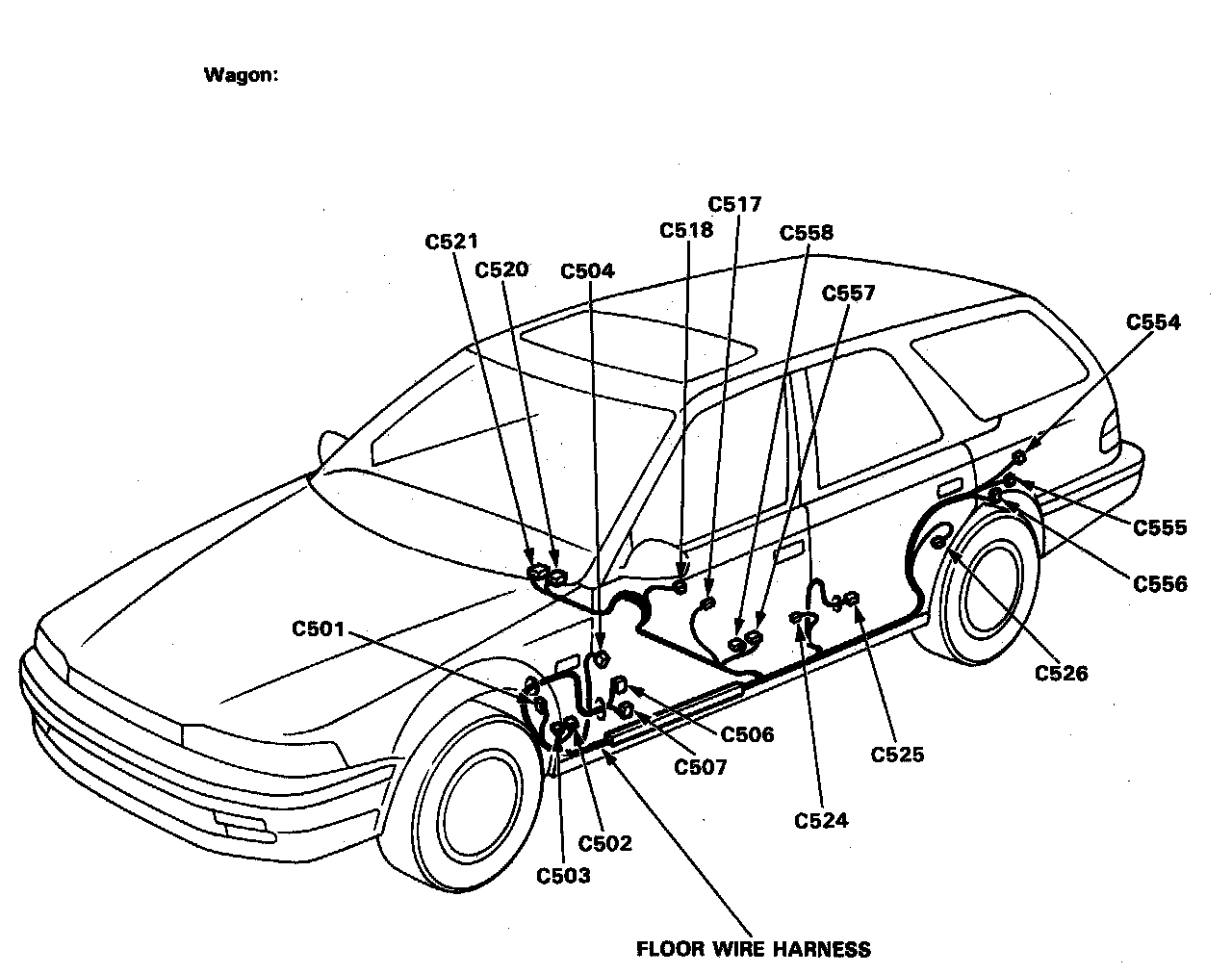

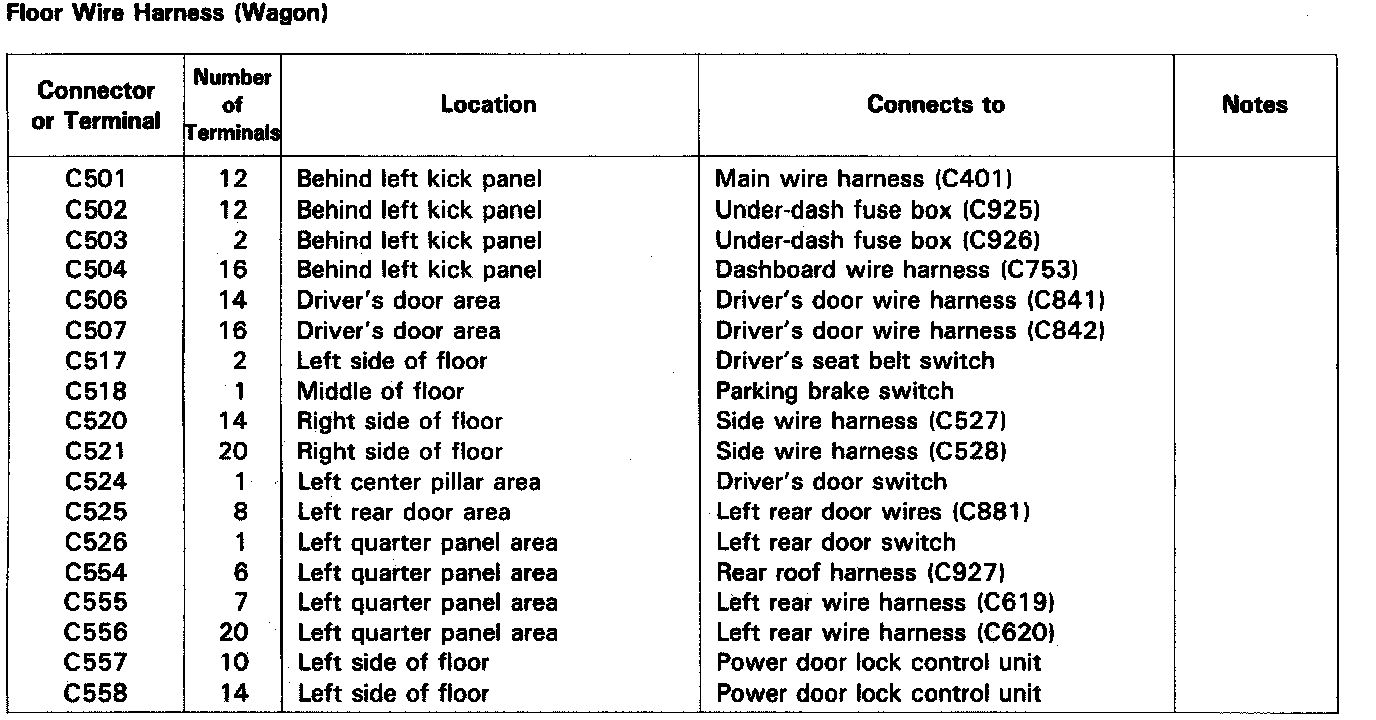

Floor Wire Harness (Wagon)

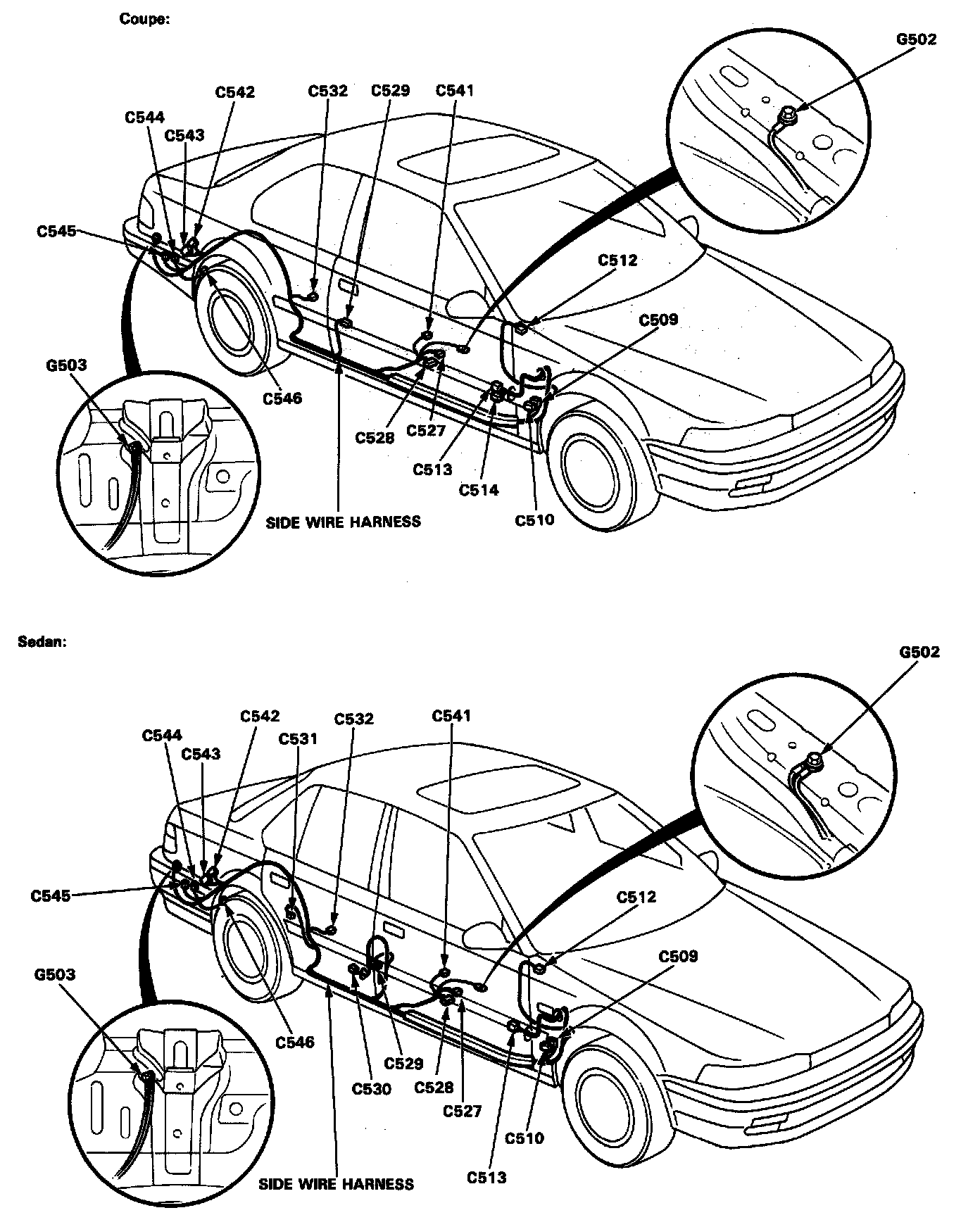

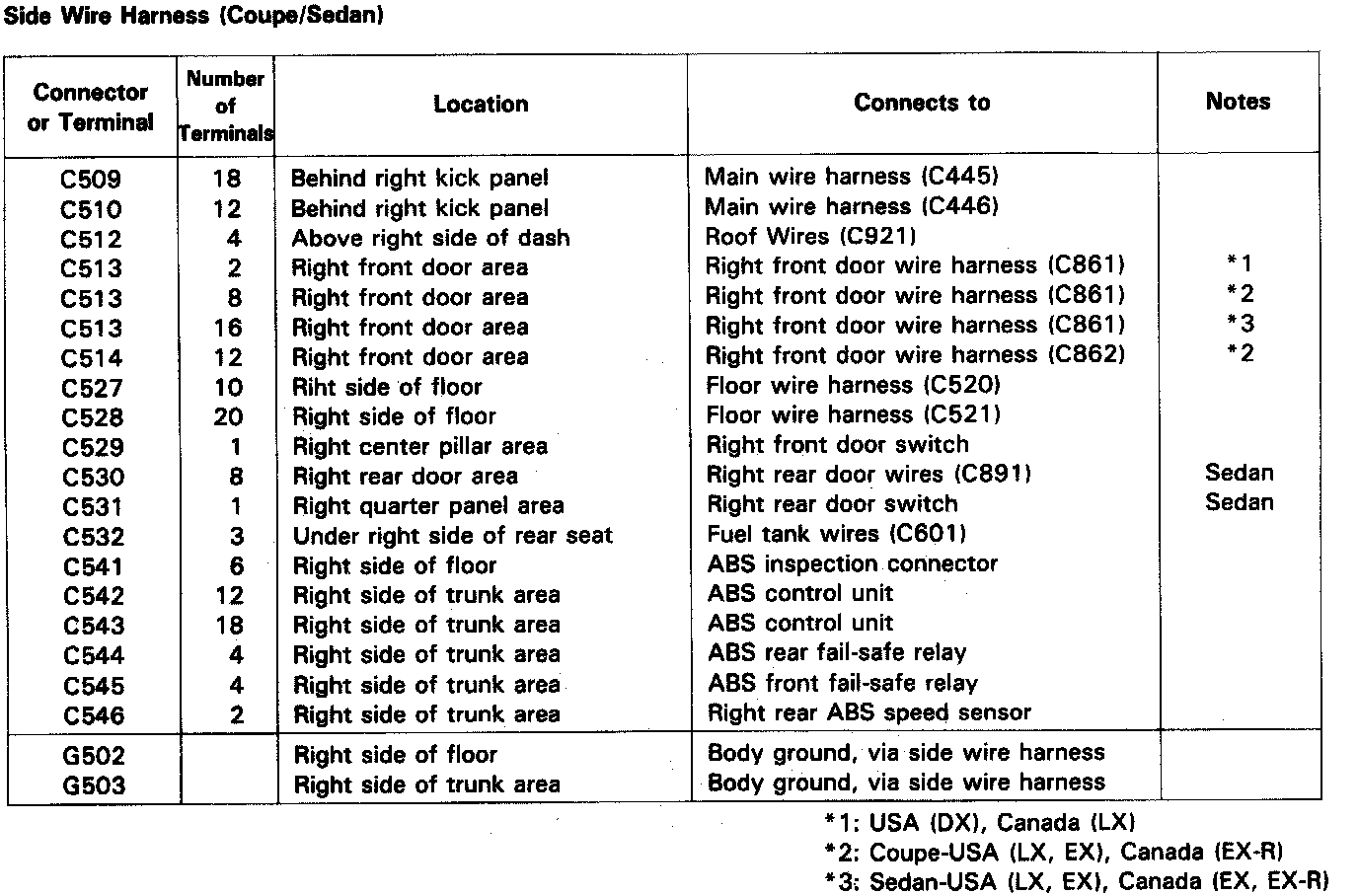

Side Wire Harness (Coupe/Sedan)

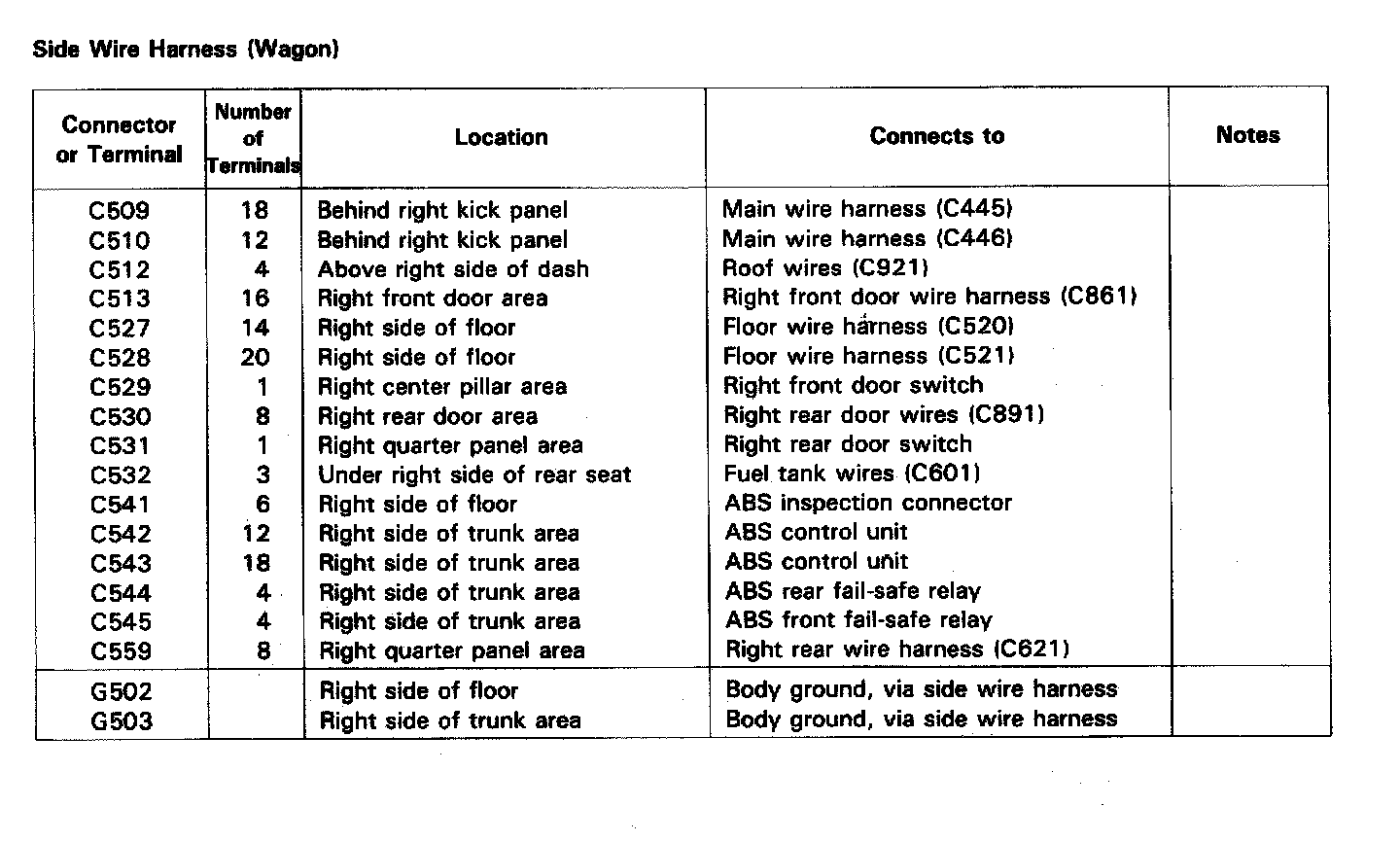

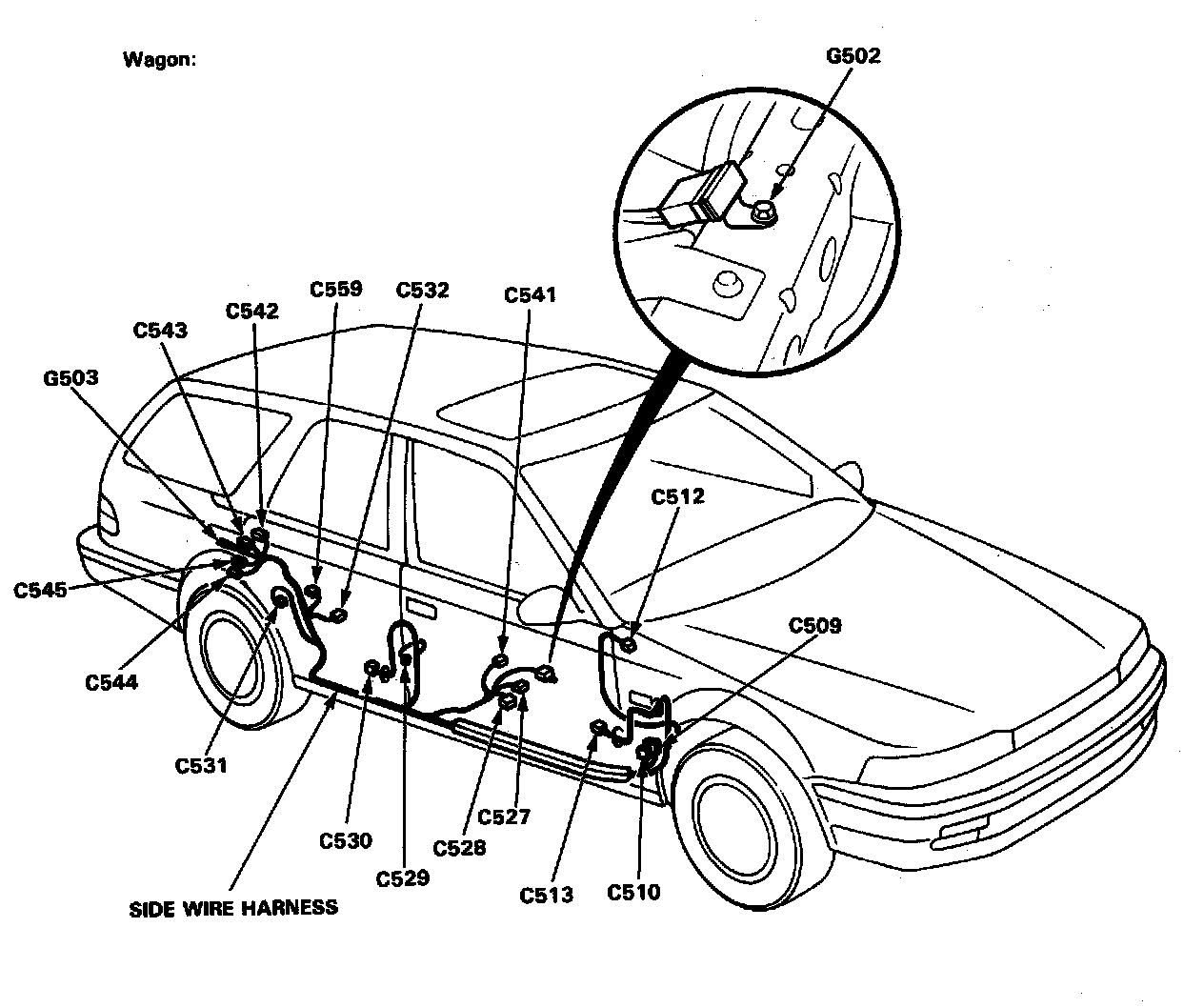

Side Wire Harness (Wagon)

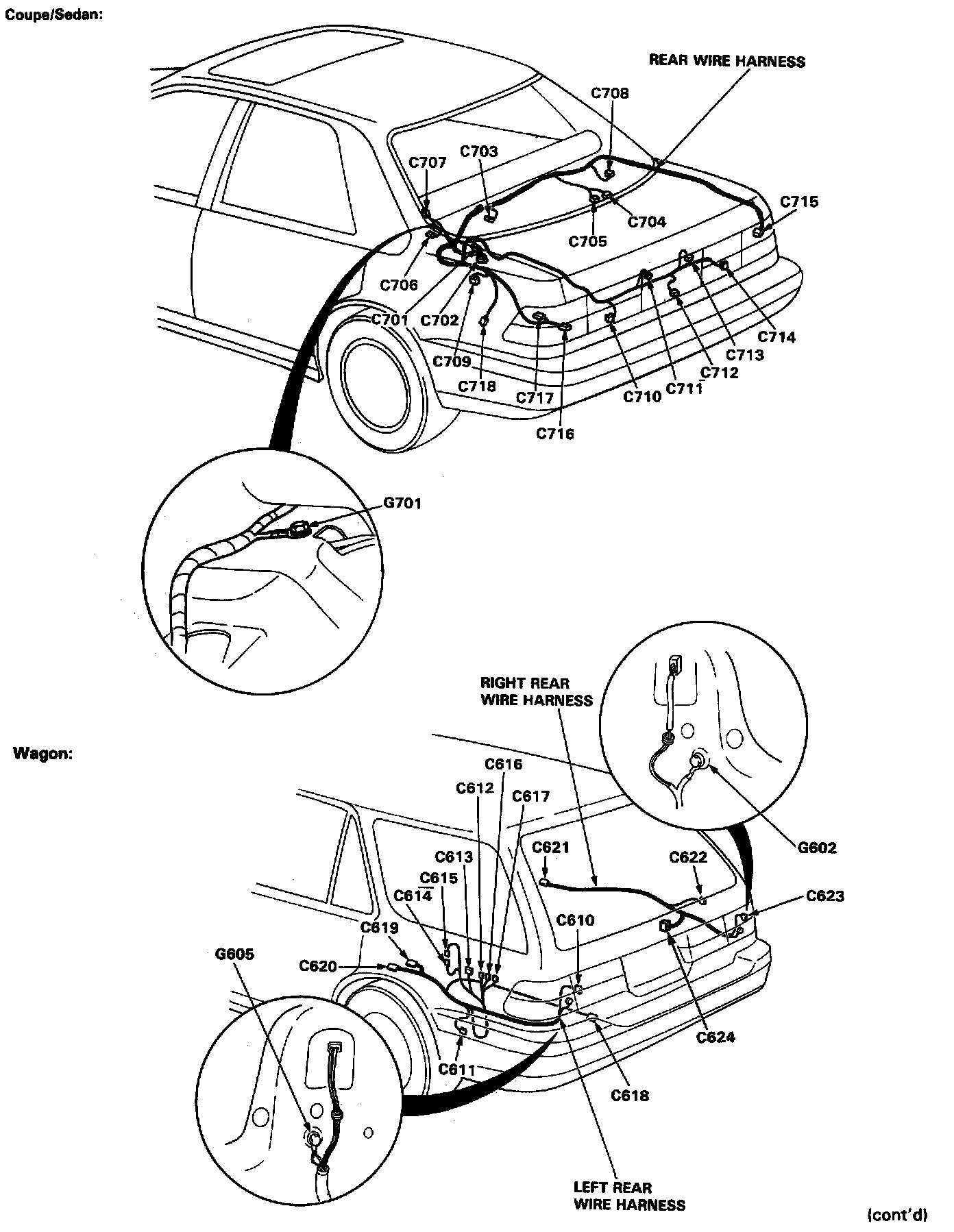

Rear Wire Harness (Coupe/Sedan/Wagon)

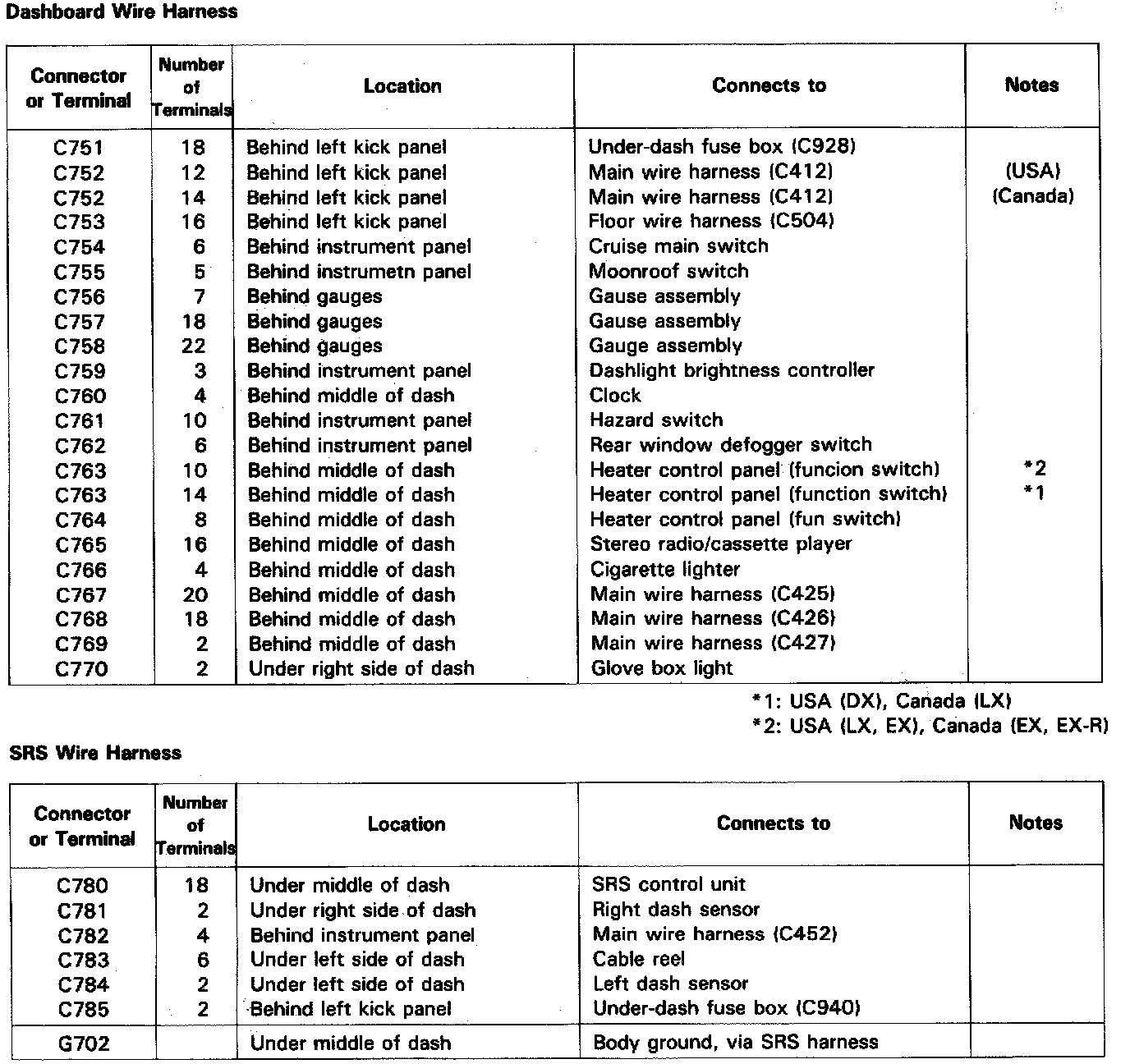

Dashboard / SRS Wire Harness

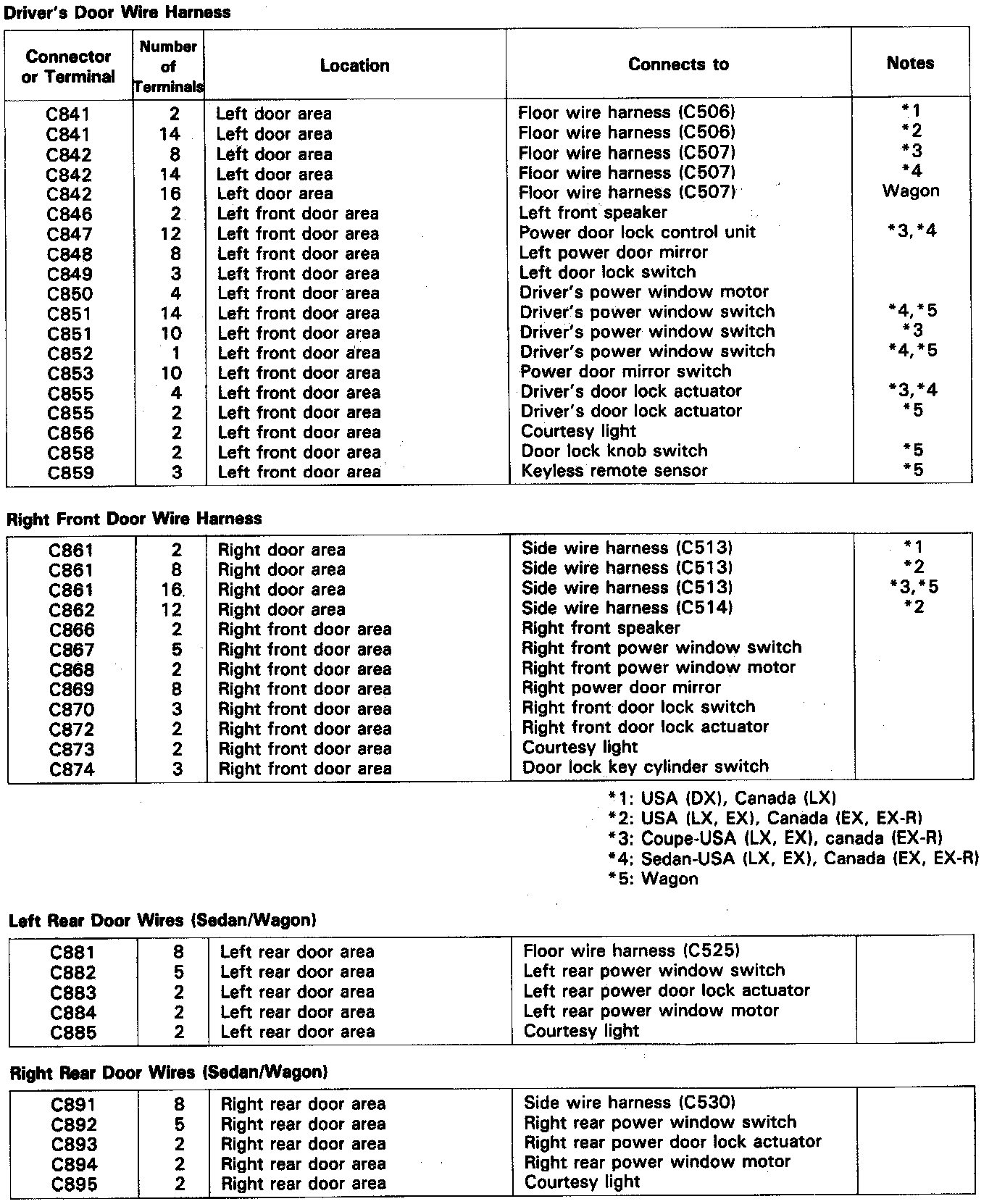

Door Wire Harness

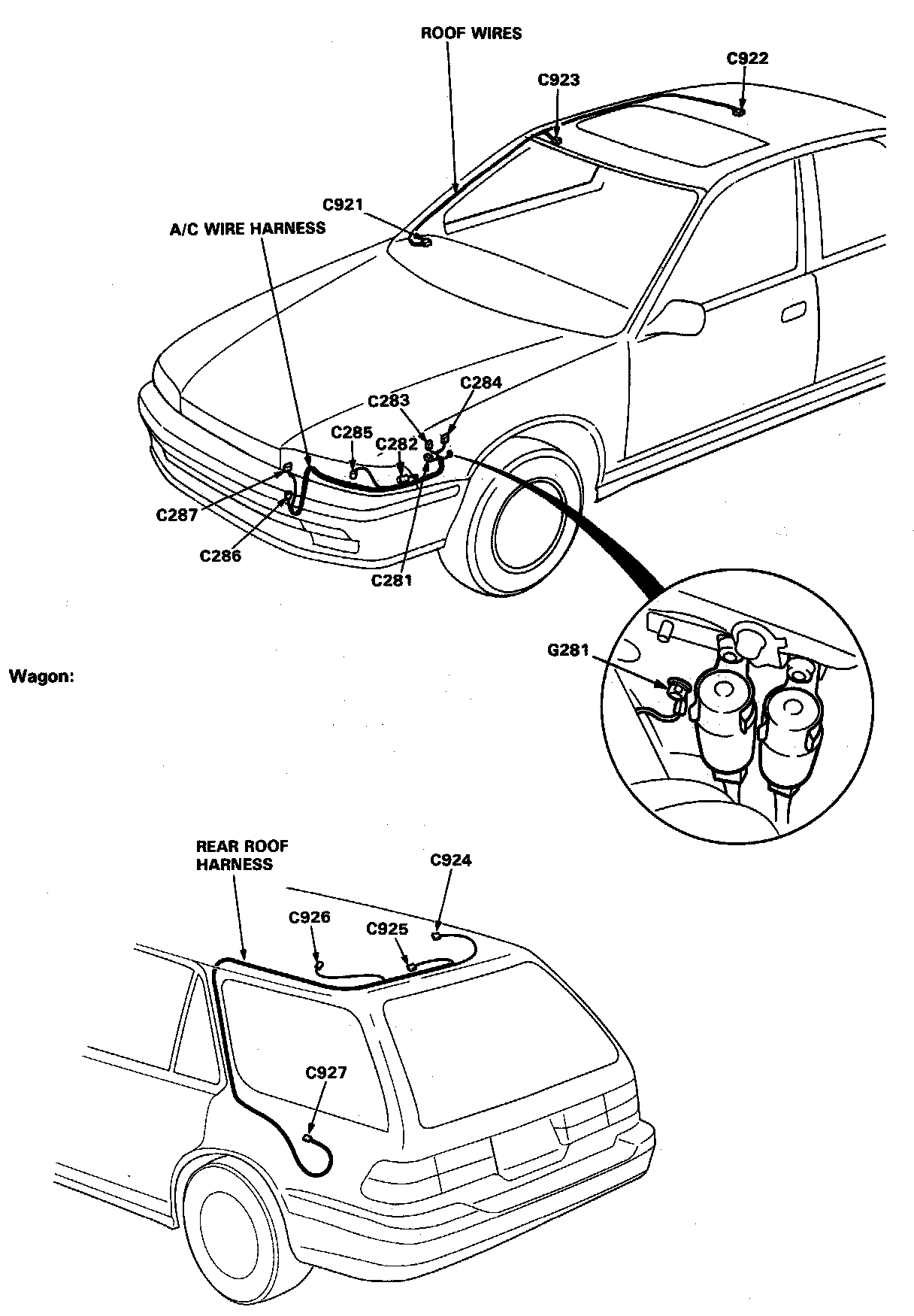

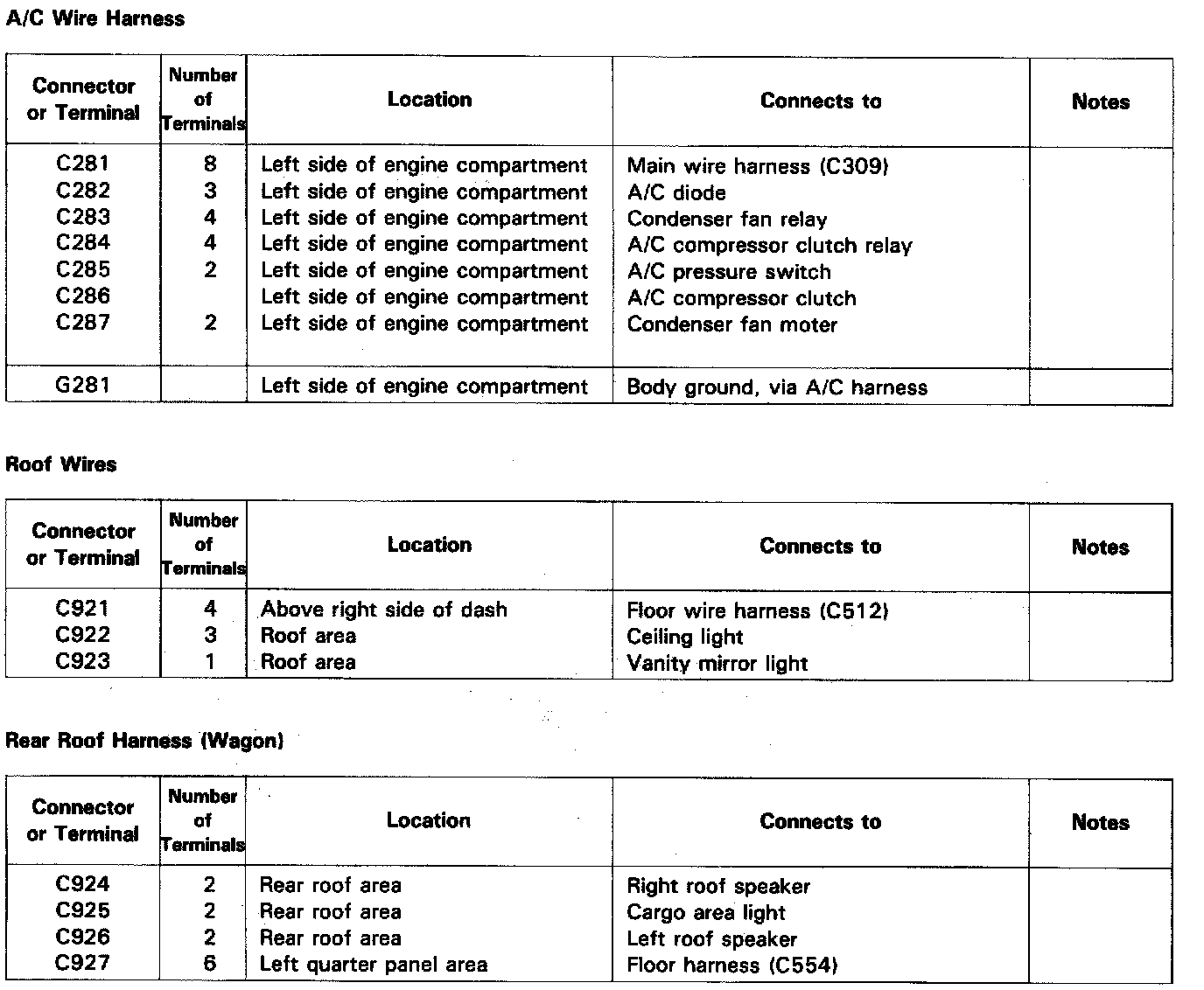

A/C and Roof Wire Harness

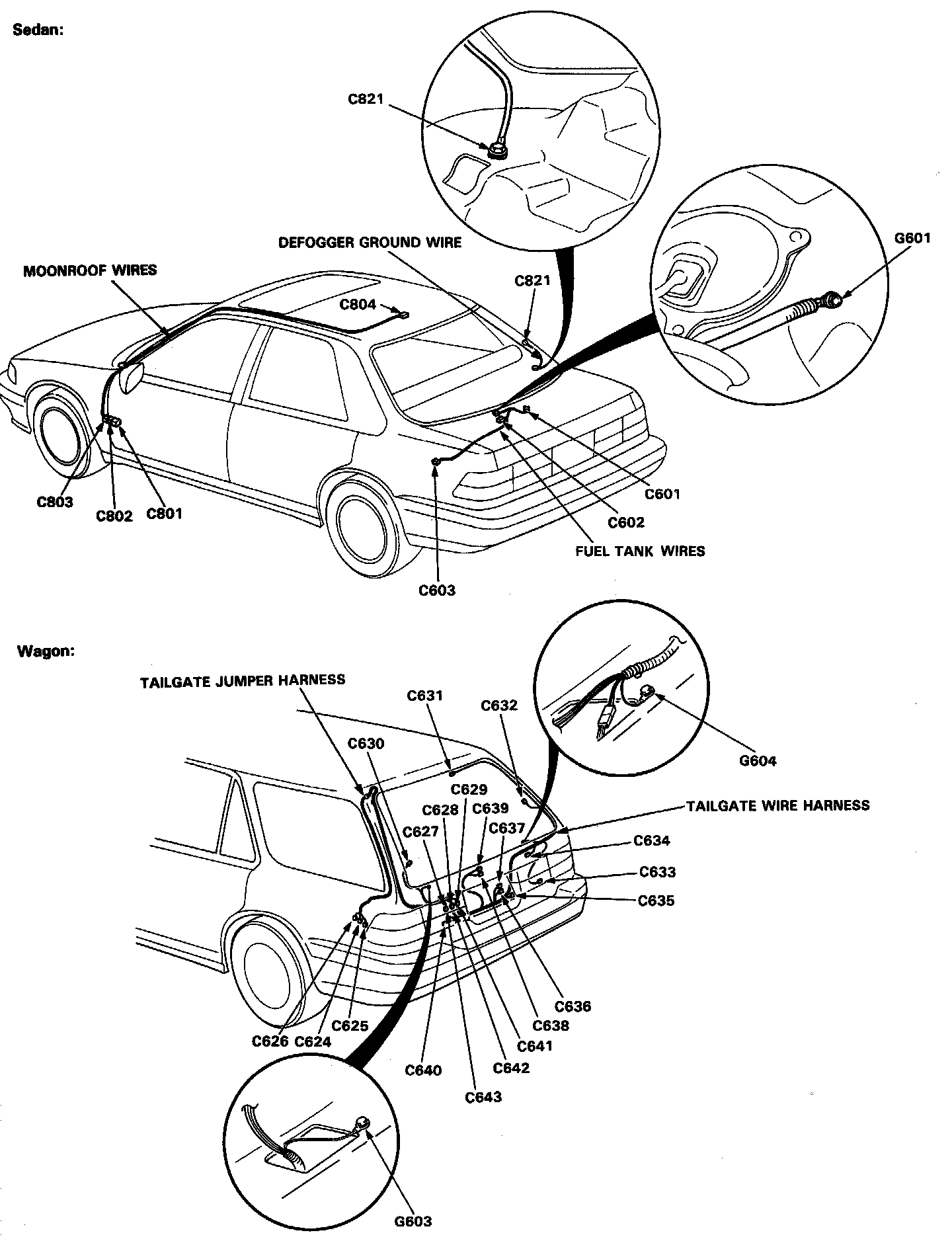

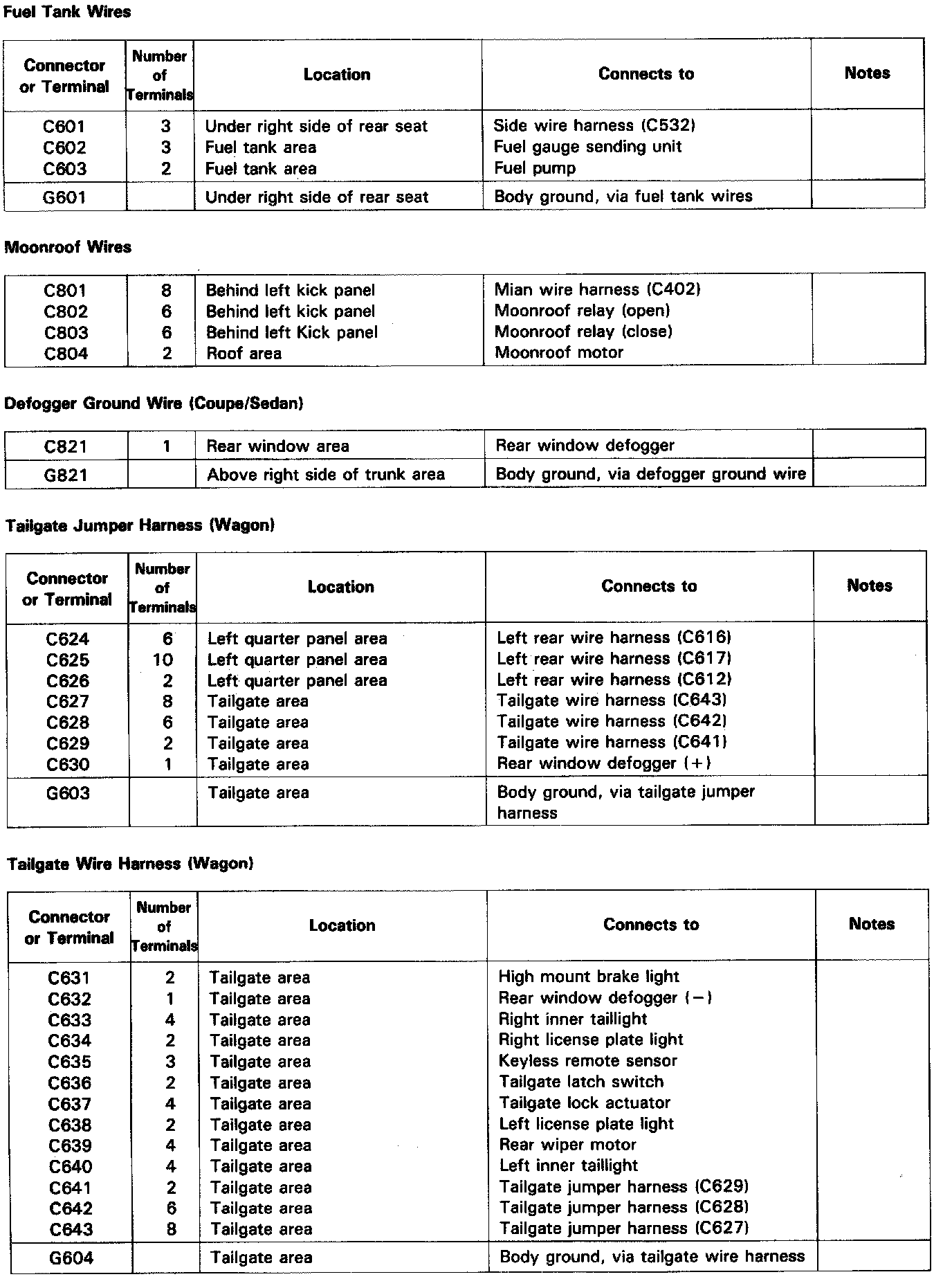

(Fuel Tank / Moonroof / Defogger / Tailgate) Wire Harness
