Home >> Honda >> 1992 >> Accord L4-2156cc 2.2L SOHC >> Repair and Diagnosis >> Windows and Glass >> Windows >> Diagrams >> Electrical Diagrams >> Rear Door

Rear Door

Power Windows (Right Rear Door):

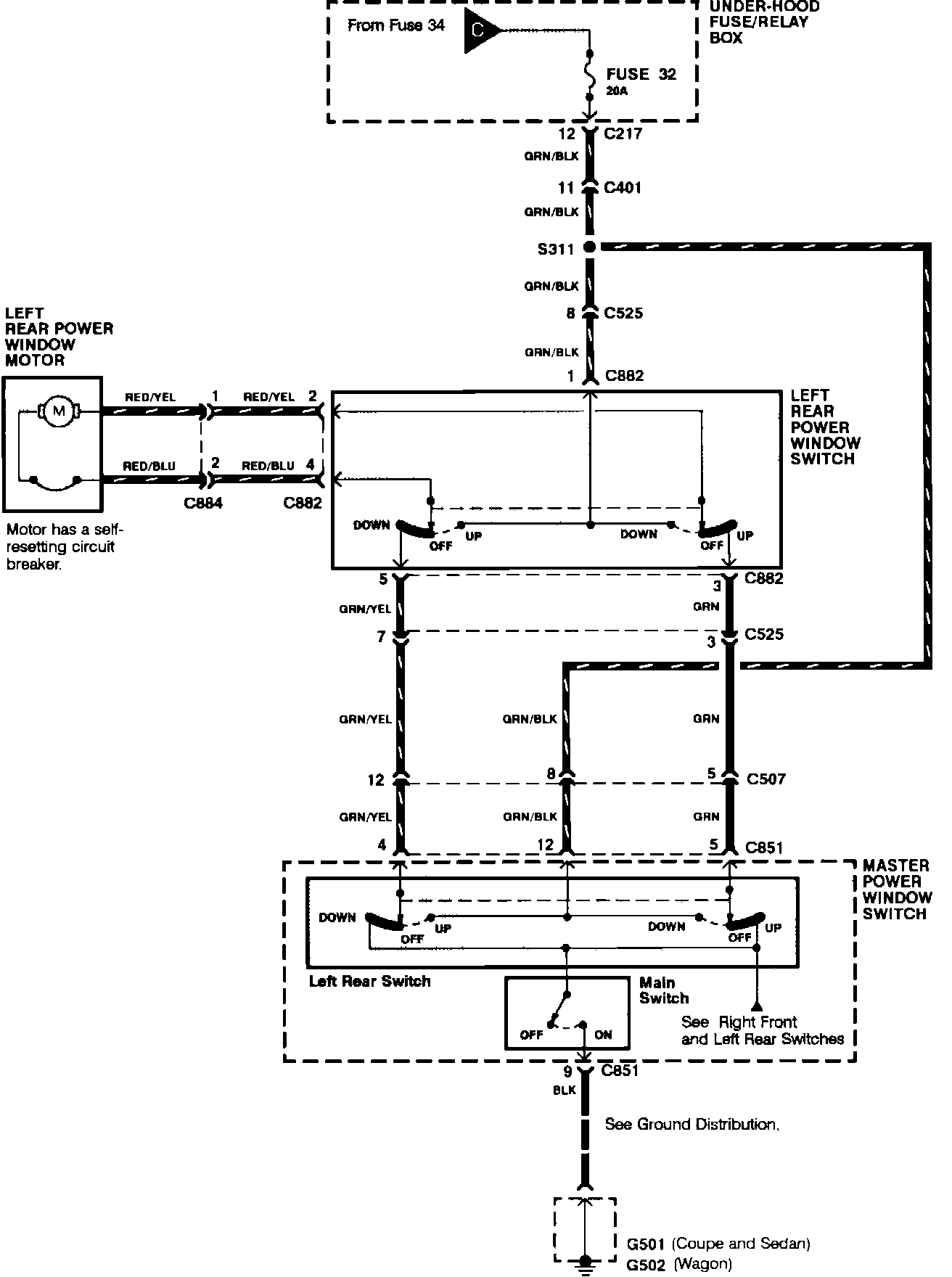

Power Windows (Left Rear Door):
