Home >> Honda >> 1992 >> Civic L4-1493cc 1.5L SOHC (16 valve) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Horn >> With Air Bag

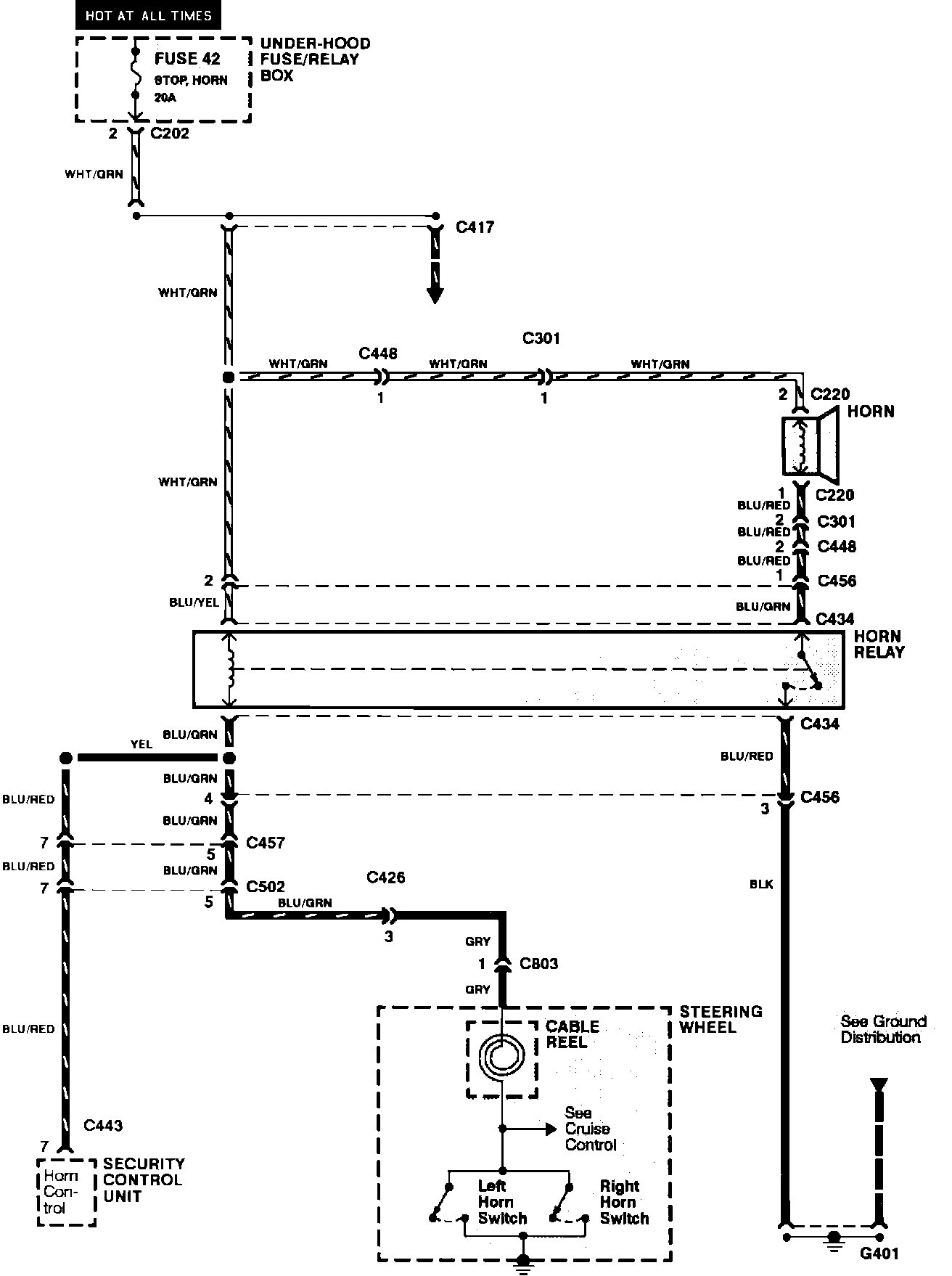

With Air Bag

Horns (Less Alarm):



Horns (With Alarm):
