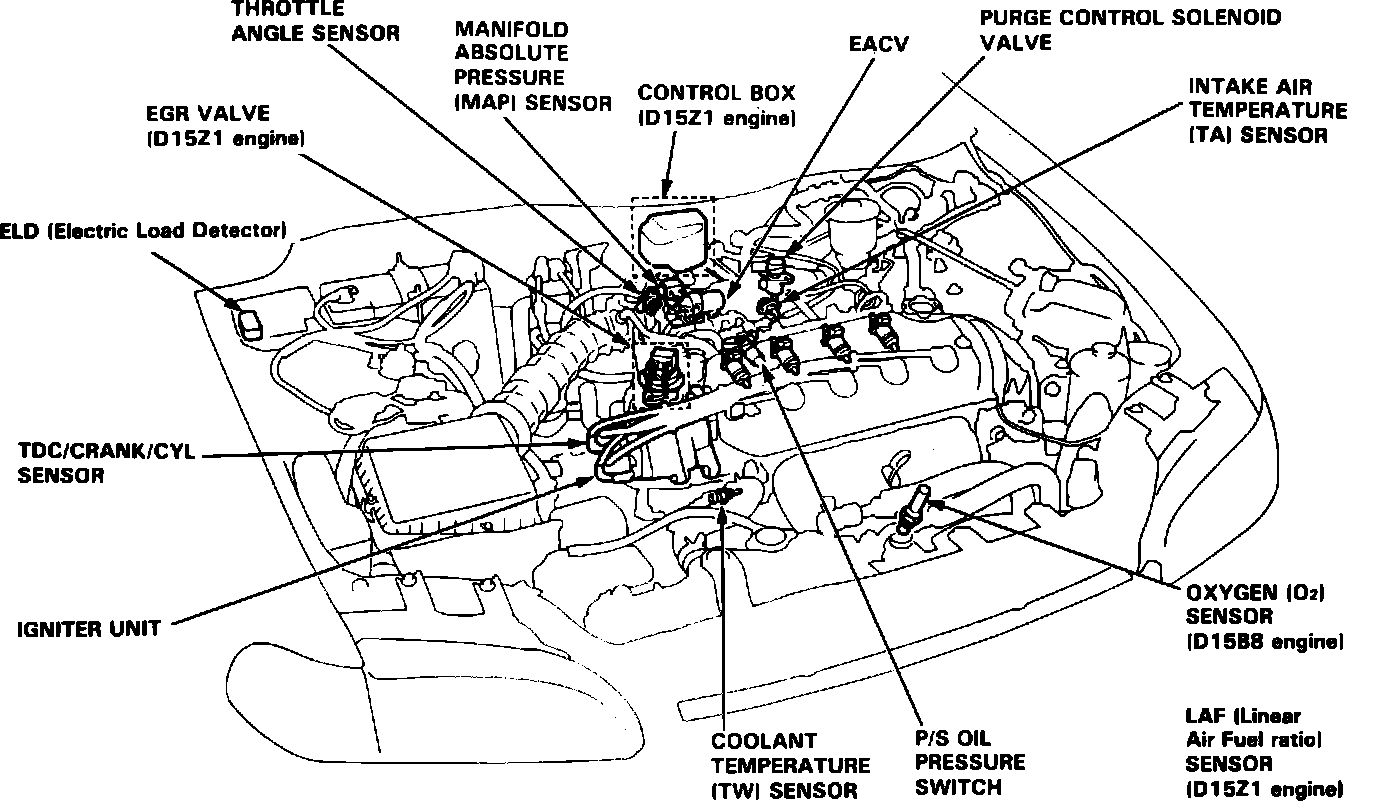

Component Location:
CONTROL BOX
Located on the firewall, center of car. Used only with 16 valve VTEC-E engine.
