Installation

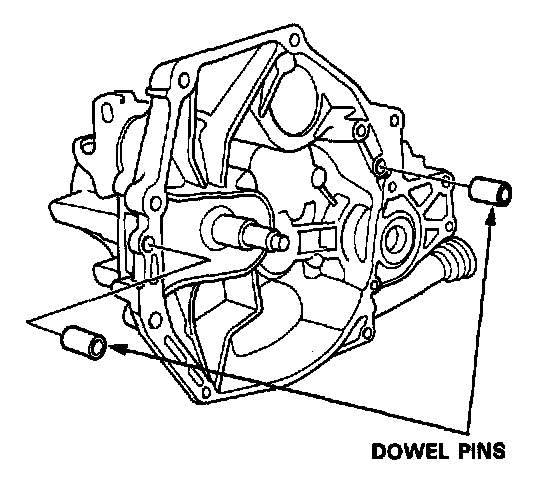

1. Install the dowel pins.




2. Apply grease to the parts as shown.

NOTE: Use only molybdenum disulfide grease in this step.

3. Install the release fork boot.




4. Place the transmission on the transmission jack, and raise it to the engine level.
5. Install the transmission mounting bolts and rear mount bolts.




6. Raise the transmission, then install the transmission side mount.




7. Remove the chain hoist.

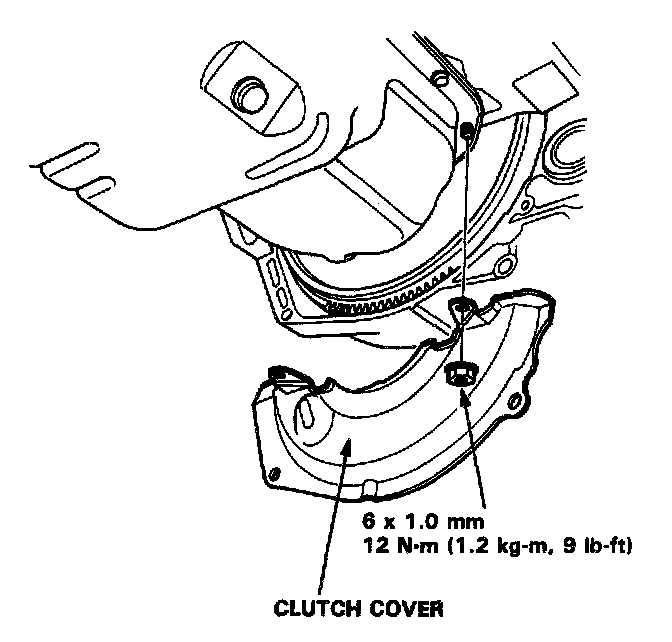

8. Install the clutch cover.




9. Install the front stopper bracket.

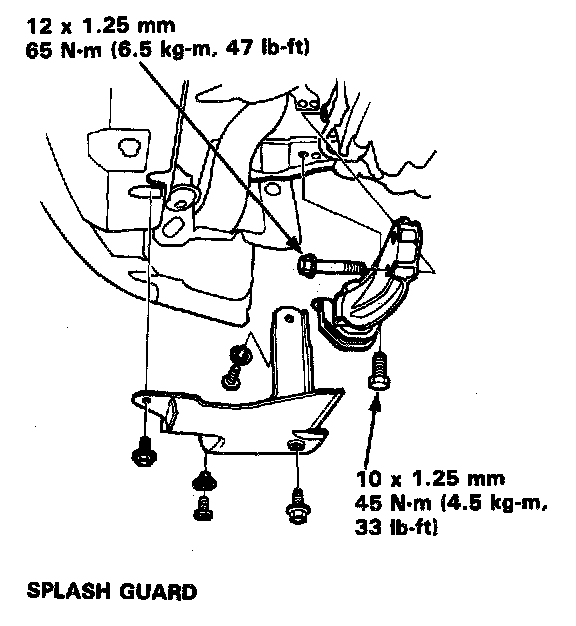

10. Install the splash guard.




11. Install the shift rod, spring pin and clip.
12. Install the torque rod.

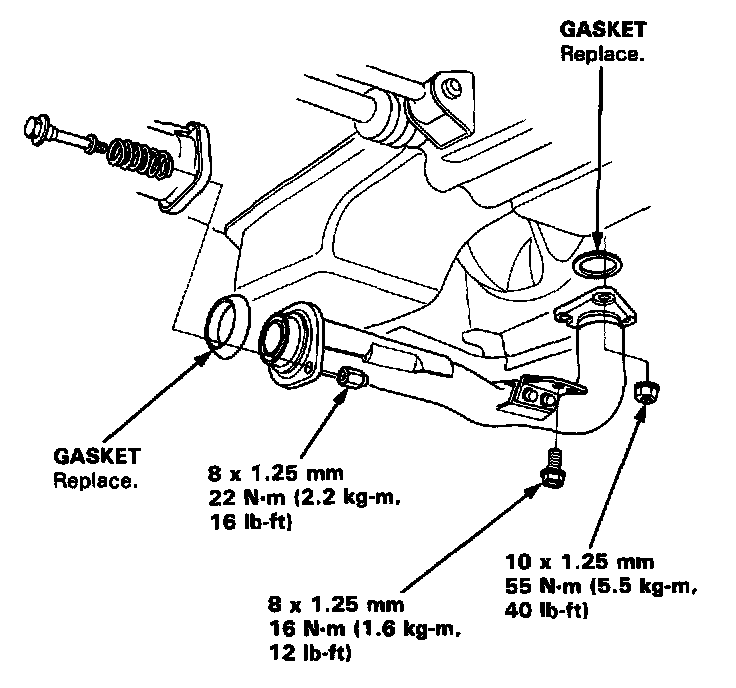

13. Install exhaust pipe A.




14. Install the driveshafts.
15. Install the ball joint onto the lower arm.
16. Install the damper fork.

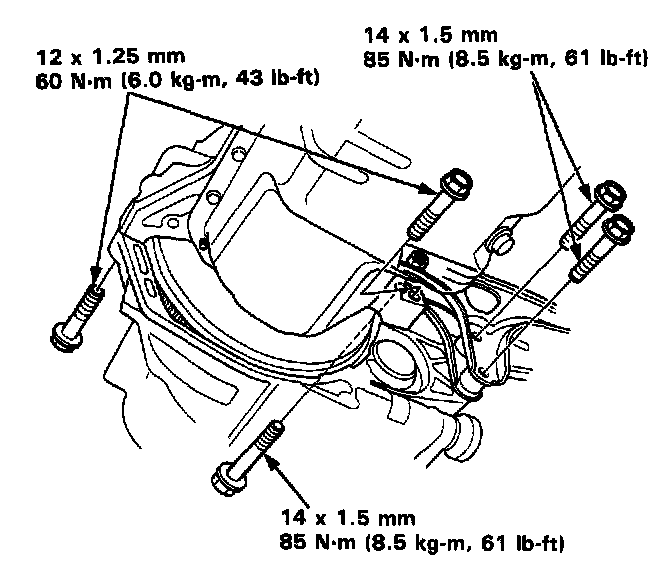

17. Install the transmission attaching bolts.




18. Install the slave cylinder, then install the clutch pipe stay.

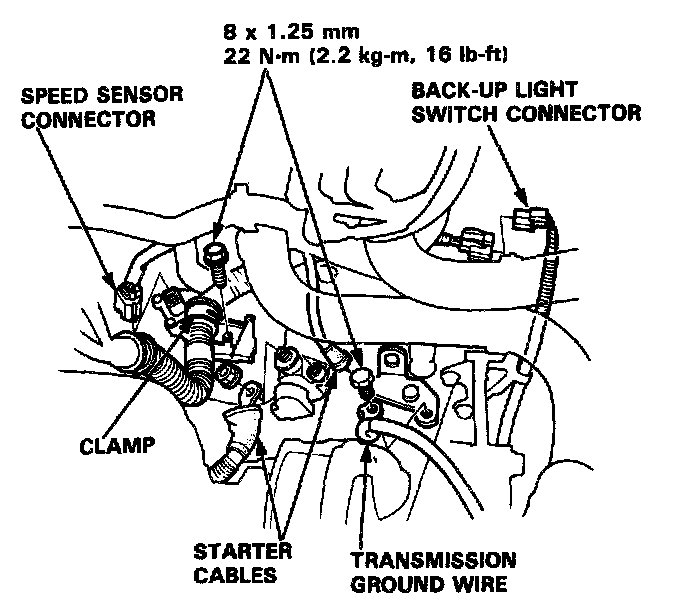

19. Connect the speed sensor and back-up light switch connectors and transmission ground wire.
20. Install the wire harness clamp.




21. Install the resonator, air cleaner case, and air intake hose.
22. Refill the transmission with oil.
23. Connect the positive (+) and negative (-) cables to the battery.
24. Check the clutch operation.
25. Shift the transmission and check for smooth operation.
