Wiper Switch: Testing and Inspection

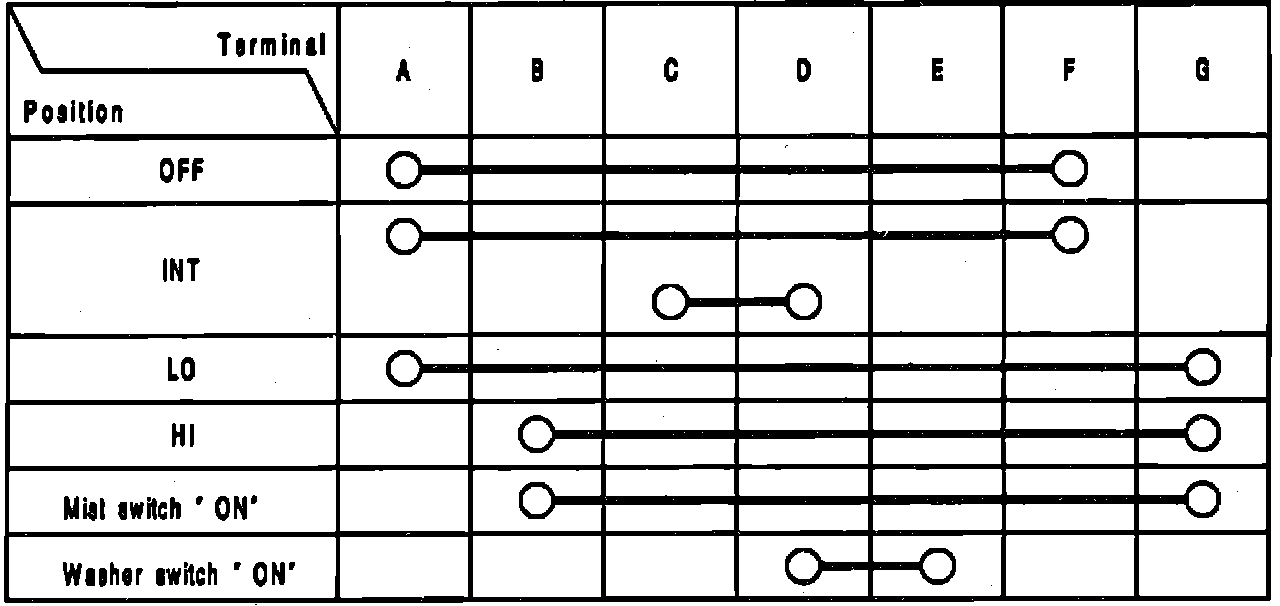

Fig. 6 Wiper/Washer Switch Continuity Chart:

1. On models equipped with airbag, disarm airbag as described under Air Bags and Seat Belts / Air Bags (Supplemental Restraint Systems / Airbag System Disarming).
2. Remove steering column covers.
3. Disconnect 8-pin and 6-pin connectors from wiper switch.
4. Check for continuity between terminals in each switch position according to the table in Fig. 6. Replace switch as necessary.
