Home >> Honda >> 1992 >> Civic L4-1493cc 1.5L SOHC (8 valve) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> CX, DX, LX, Ex. SI >> Power and Brake Light Switch Input

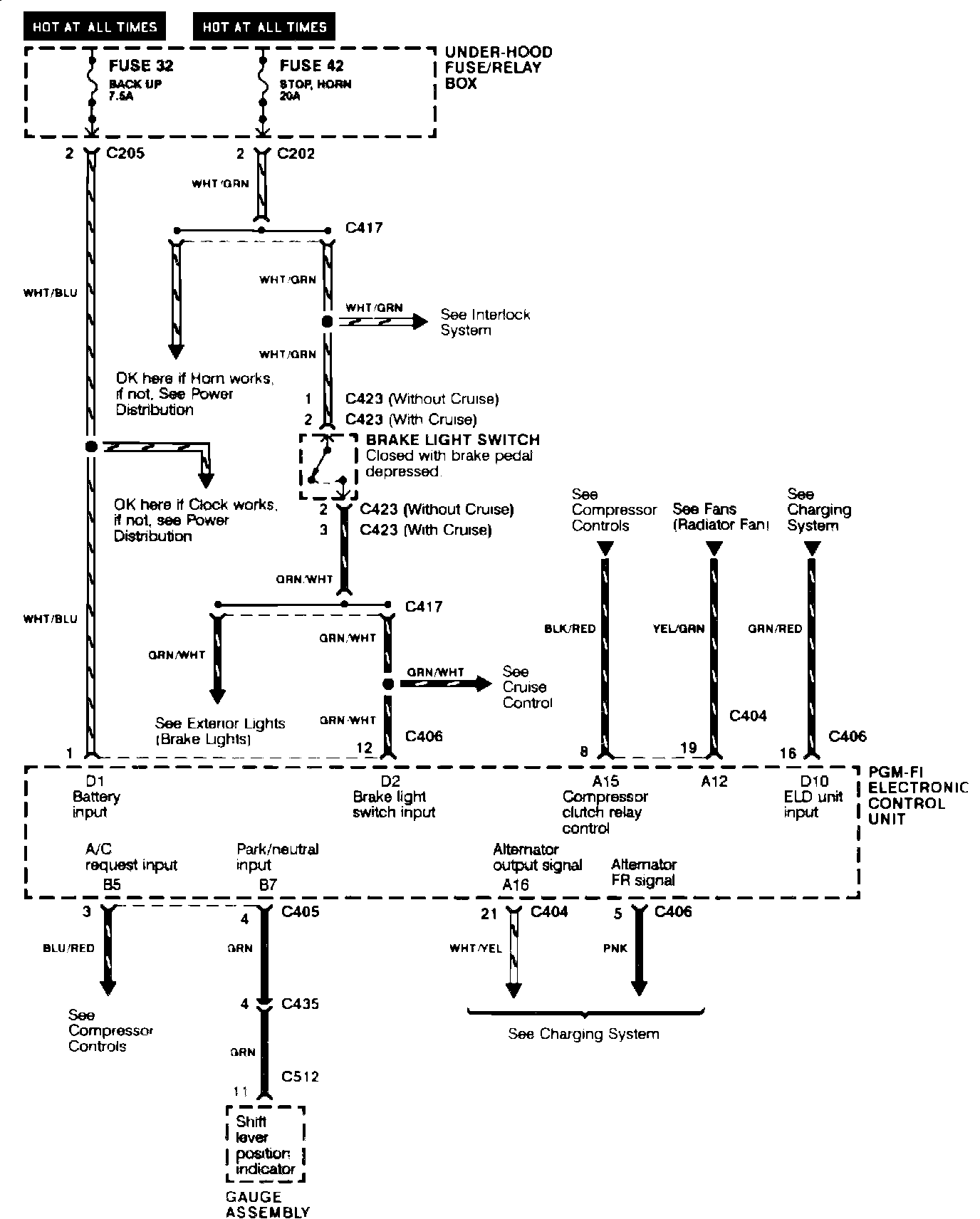

Power and Brake Light Switch Input
