Component Tests and General Diagnostics

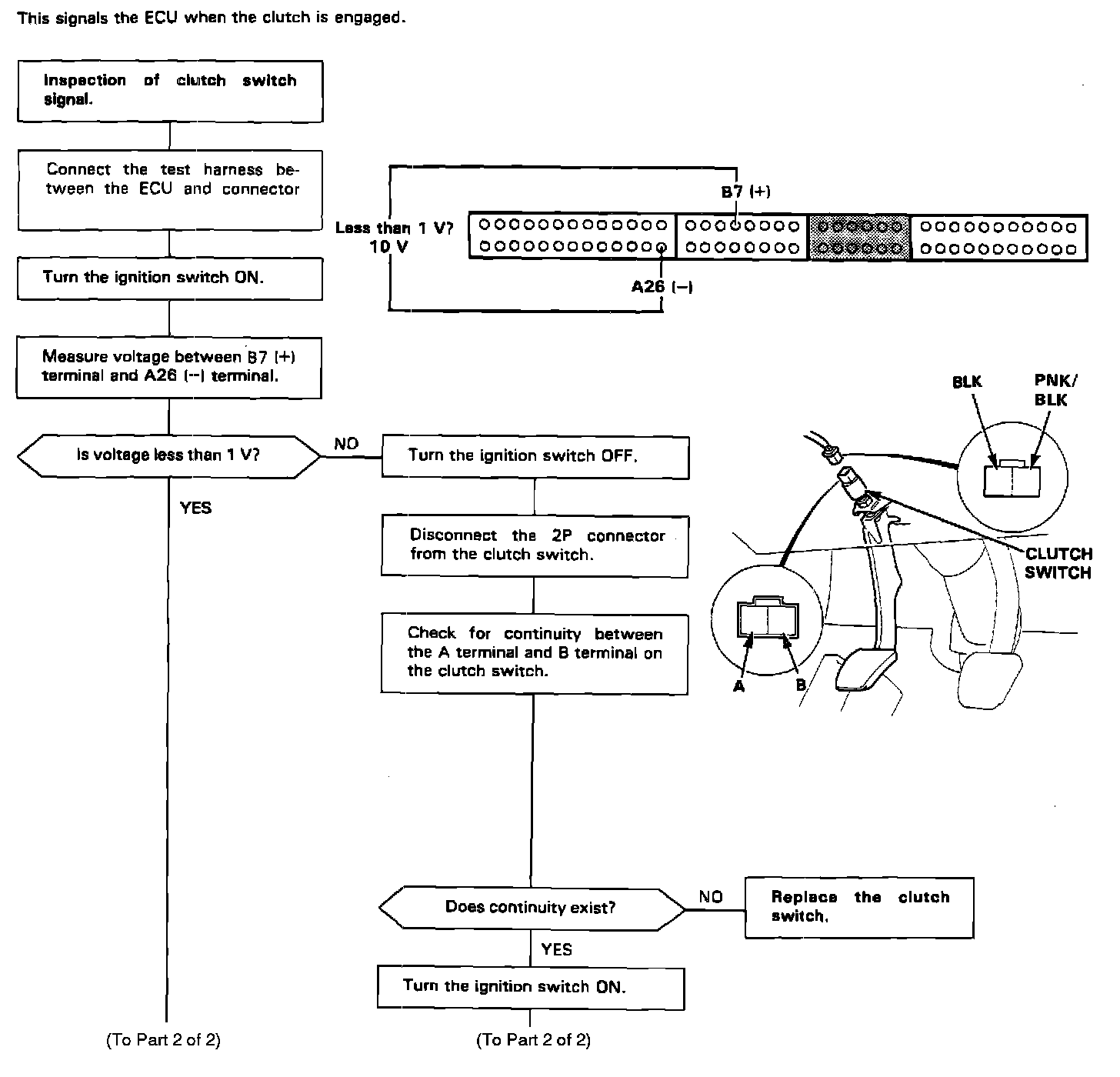

Part 1 Of 2:

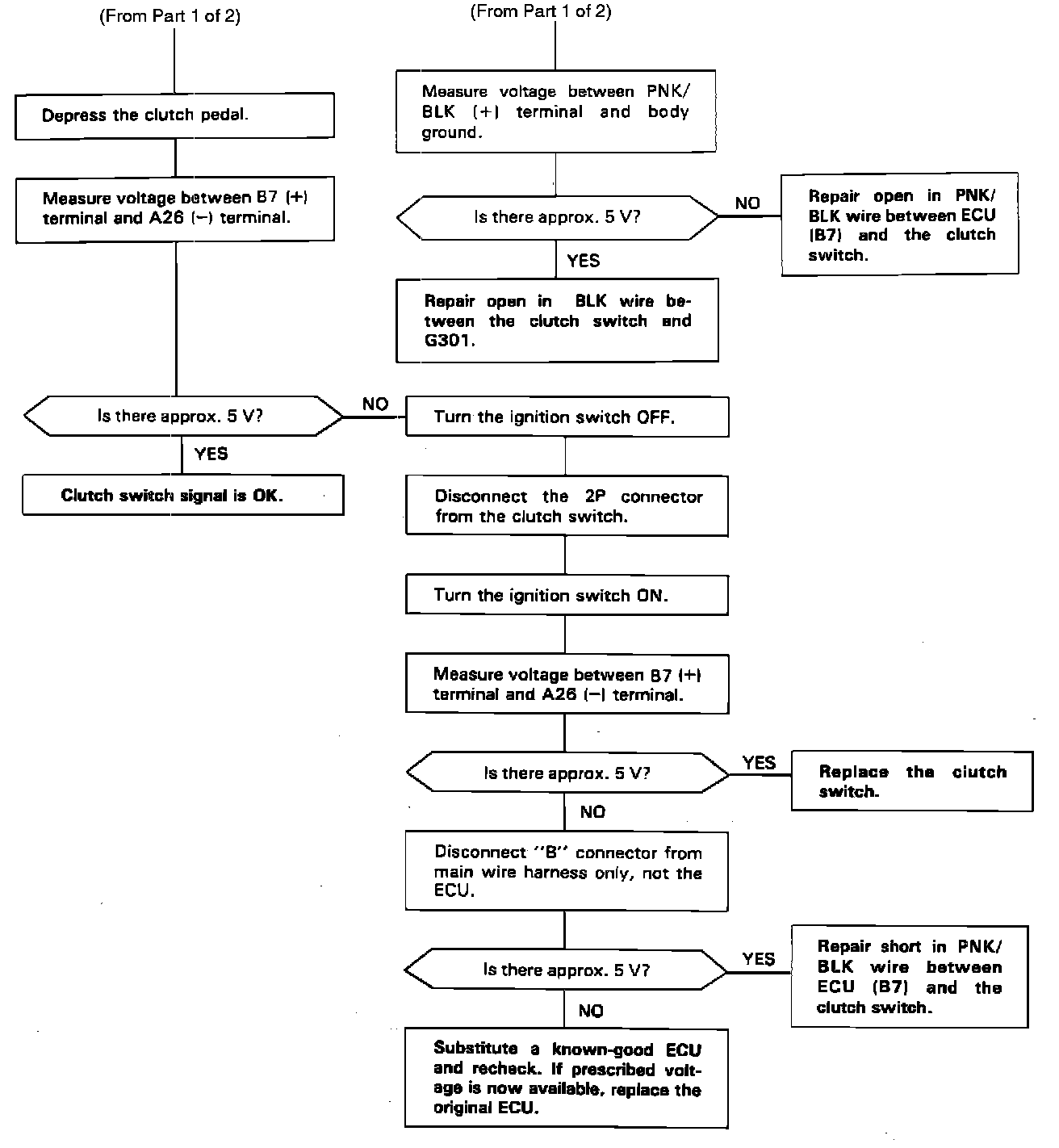

Part 2 Of 2:





Clutch Switch Signal (M/T Only)
