Component Tests and General Diagnostics

Place vehicle on level ground with wheels blocked, put transmission in neutral for manual transmission models and in ``park'' for automatic transmission models during function test. Always disconnect anti-lock brake checker before driving vehicle. A collision can result from a reduction or complete loss of braking ability.

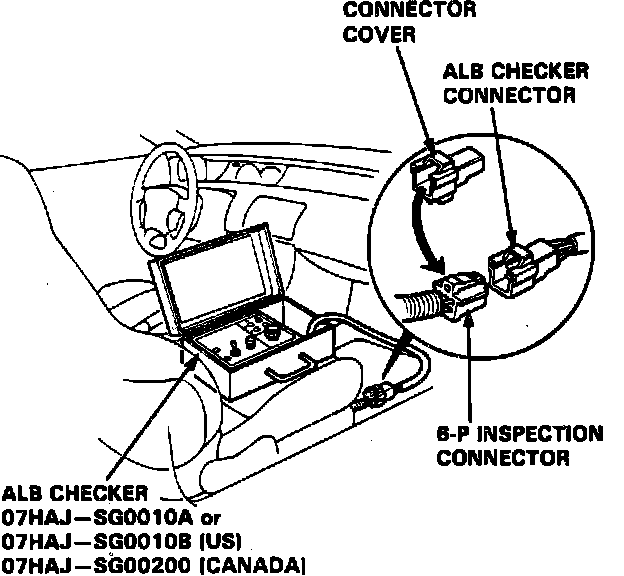

Fig. 7 Inspection Connector Location. Accord:

1. On Prelude and Civic models, with ignition switch off, disconnect 6-P inspection connector from connector cover on crossmember under passenger seat and connect it to anti-lock brake checker No. 07HAJ-SG0010A or 07HAJ-SG0010B or equivalent, Fig. 7.

Fig. 6 Inspection Connector Location. 1992 Prelude & Civic:

2. On Accord models, with ignition switch off, disconnect 6-P inspection connector from connector cover on the crossmember under passenger seat and connect it to anti-lock brake checker No. 07HAJ-SG0010B or 07HAJ-SG00100 or equivalent, Fig. 6.
3. On all models, start engine and release parking brake.
4. Turn mode selector switch on anti-lock brake checker to ``1.''
5. Push start test switch and observe the following:
a. Test in progress light should come on.
