Home >> Honda >> 1992 >> Prelude L4-2.2L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Headlamp >> Headlamp Switch >> Canada

Canada

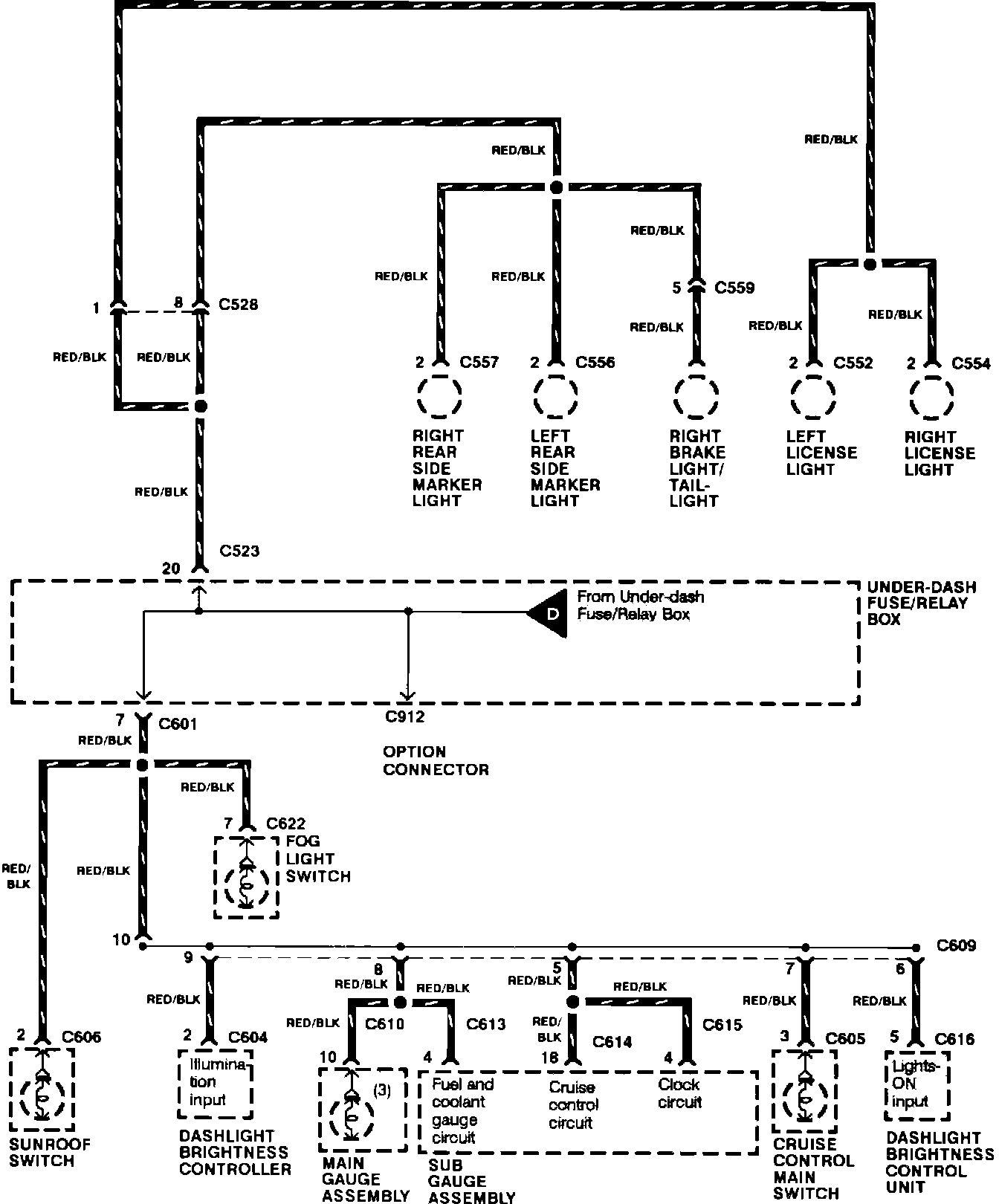

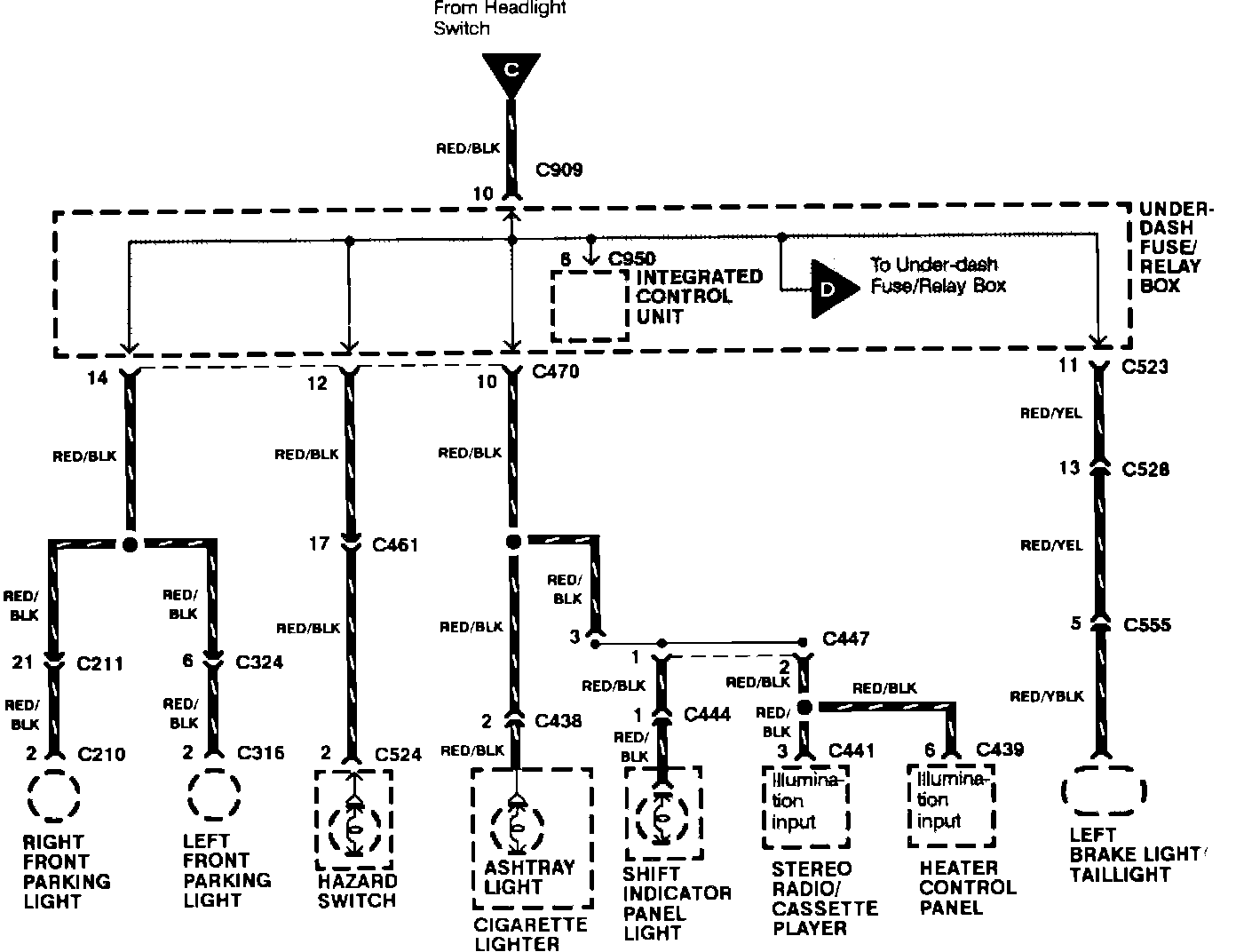

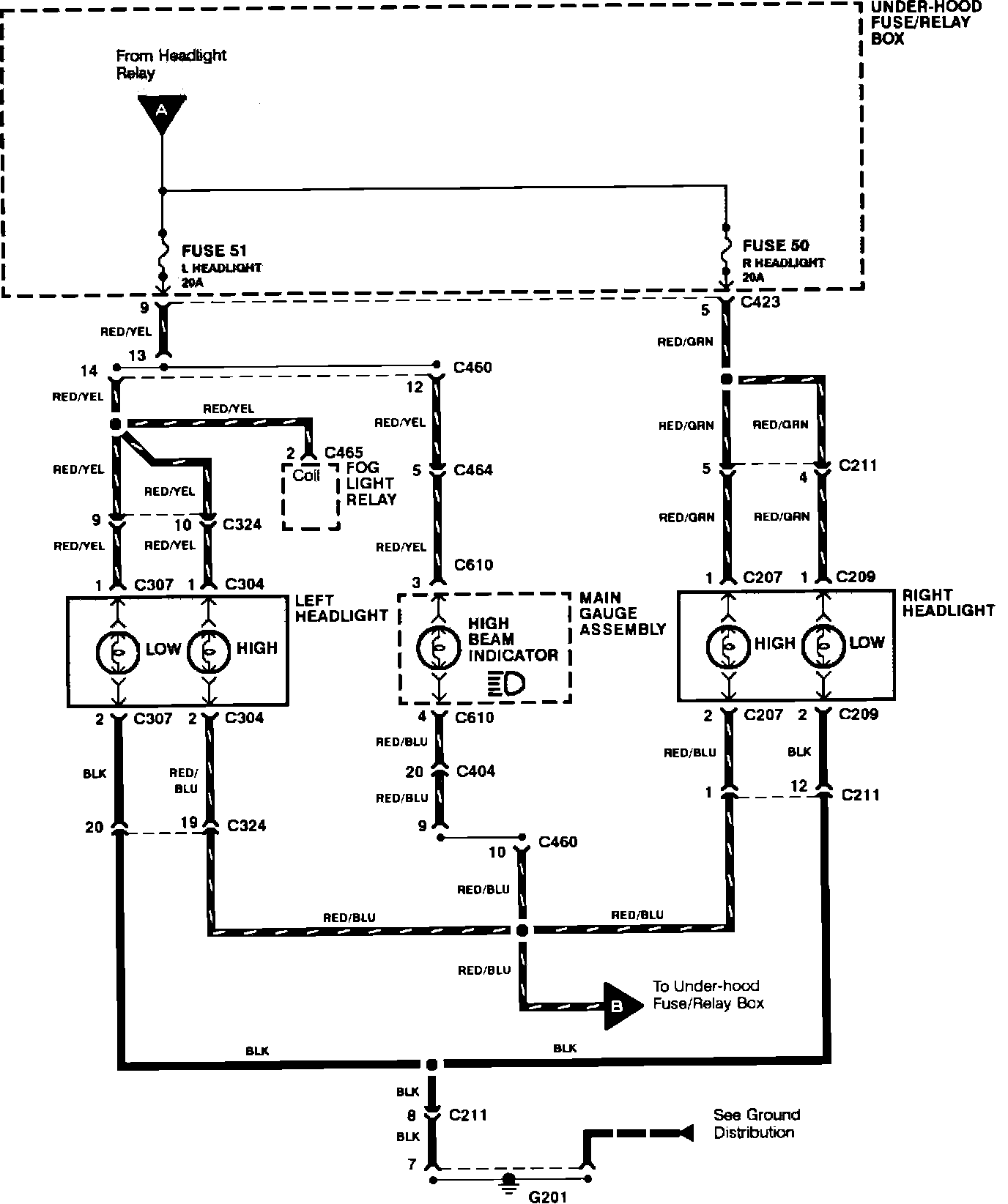

Headlight Switch:



Headlight Switch:



Headlight Switch:



Headlight Switch:
