Emission Control Systems: Diagrams

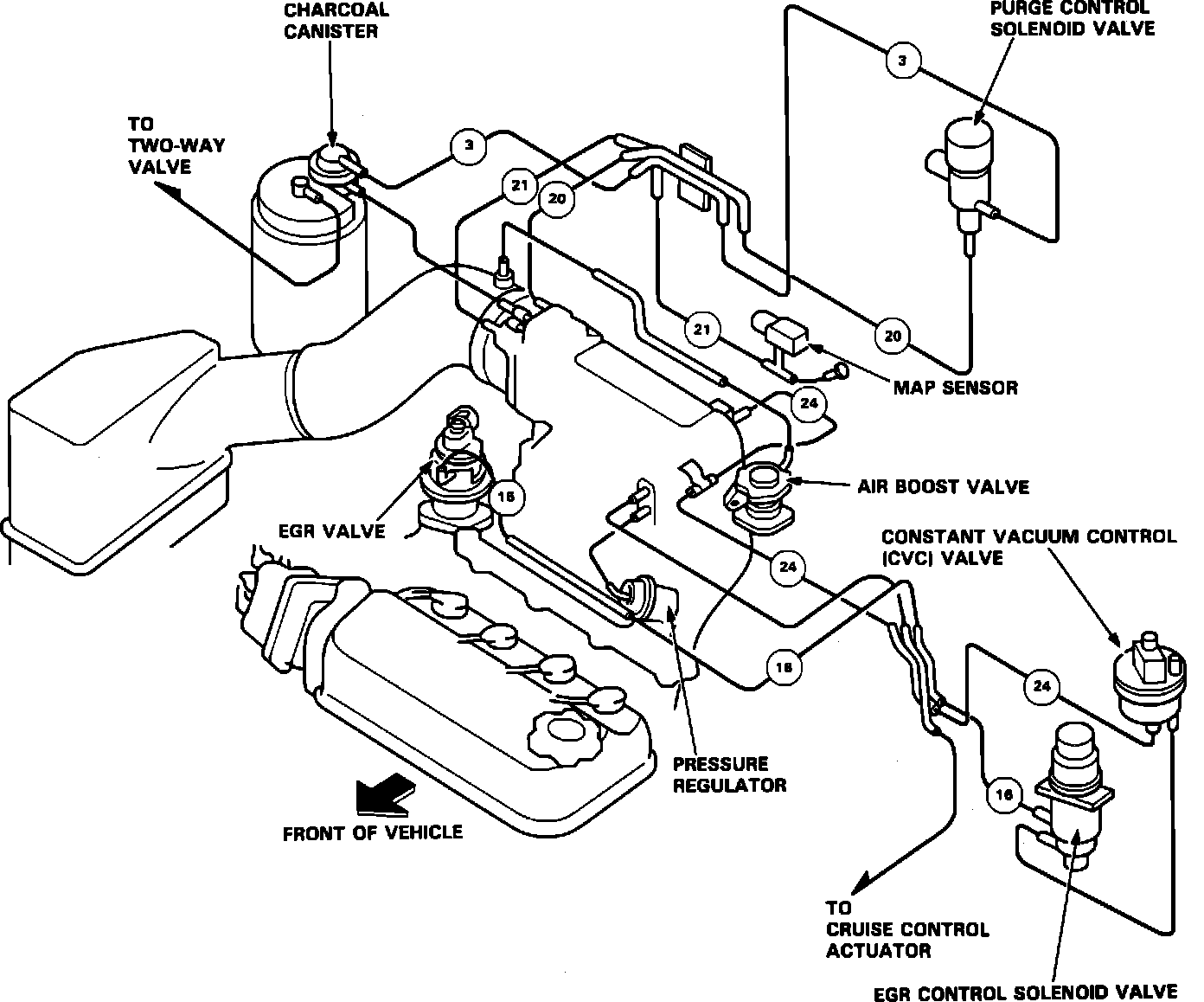

Vacuum Hose Routings:
VACUUM HOSE ROUTINGS

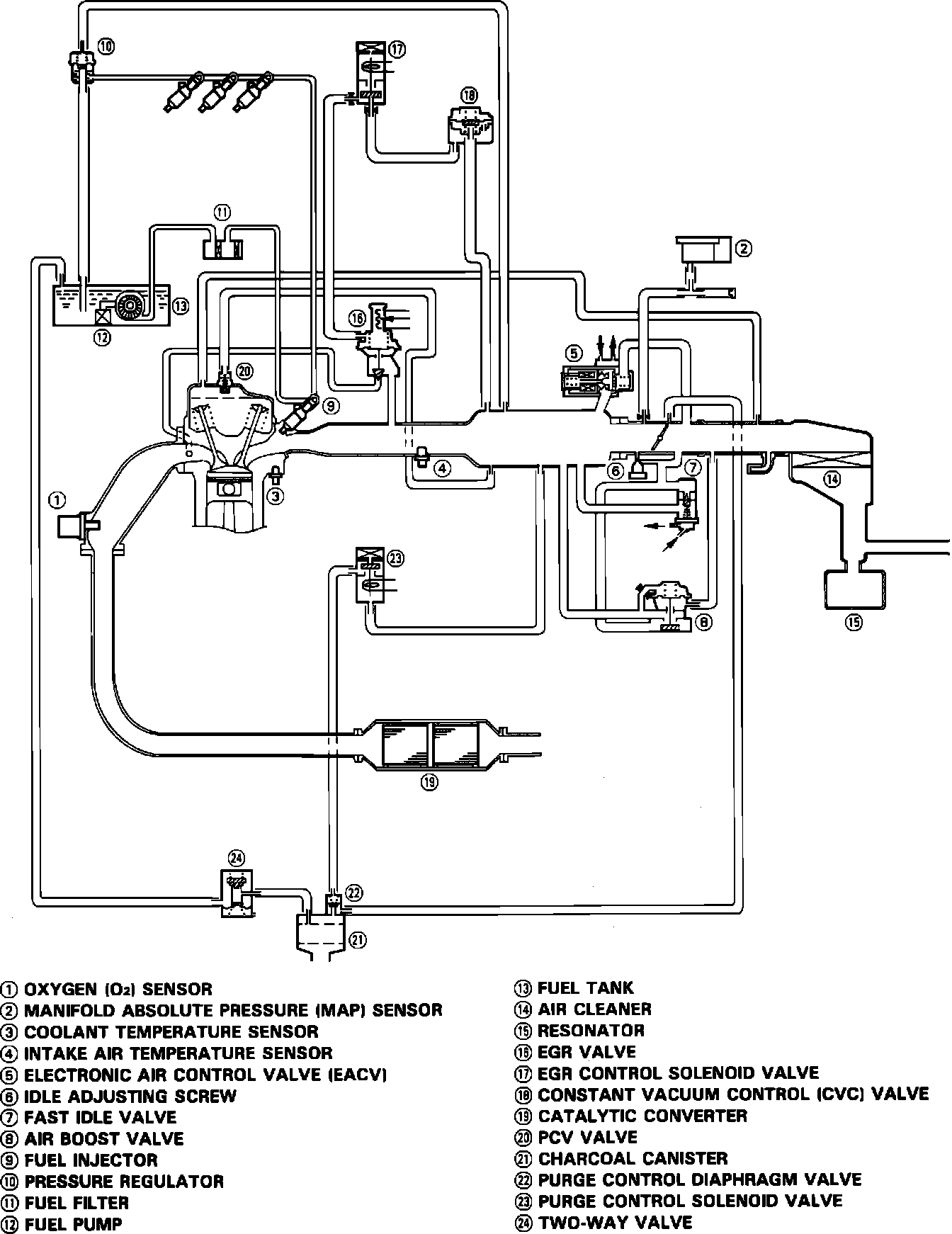

Vacuum System Connections:
VACUUM SYSTEM SCHEMATIC
