DTC List - Transmission Control Systems

When reading the D4 indicator flashing display, a long pulse of the light indicates a ten count and a short pulses indicates a one count. Example, one long pulse and four short pulses would indicate a code 14.

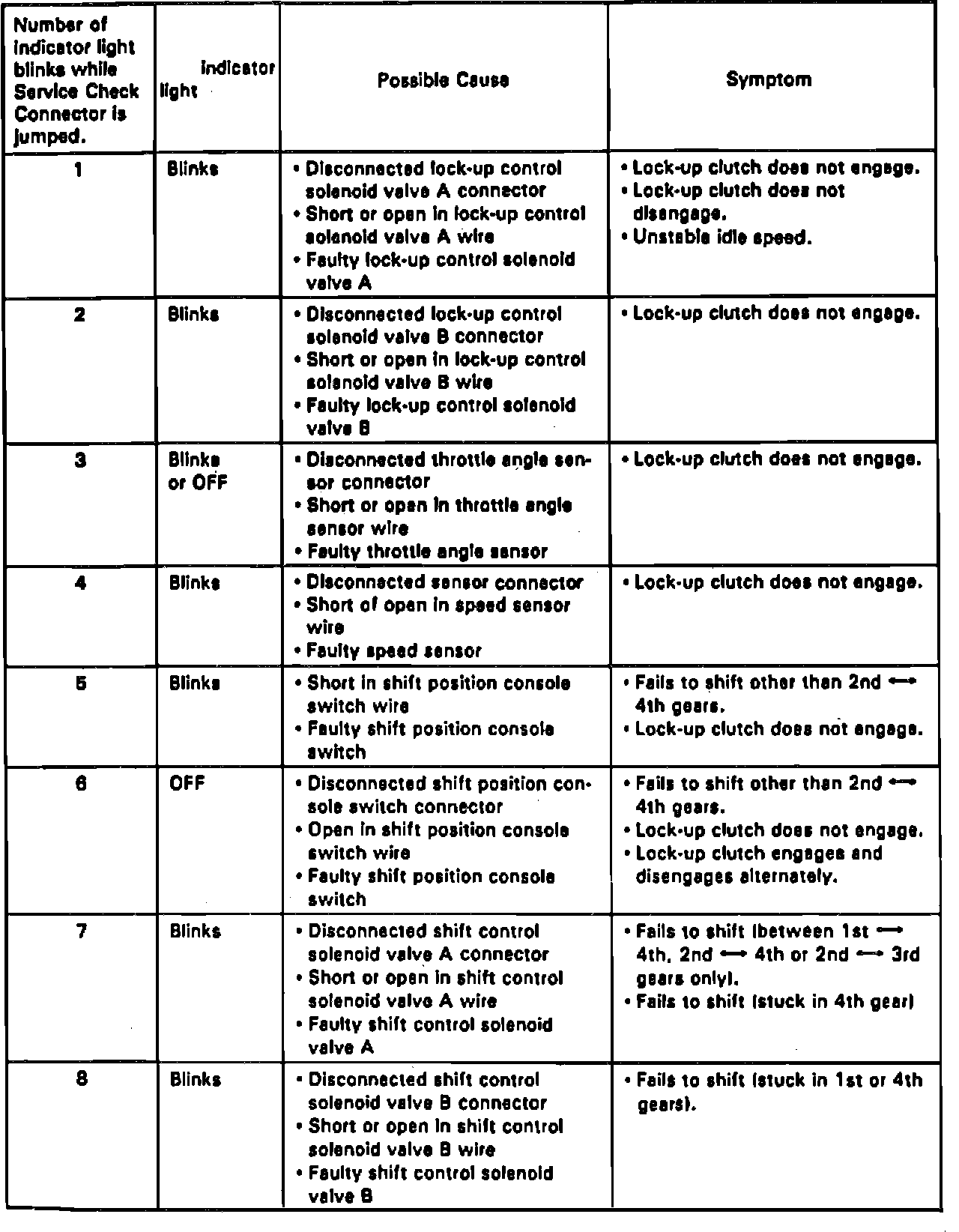

Refer to Fig. 7, for description of trouble codes.
