DTC 6-1

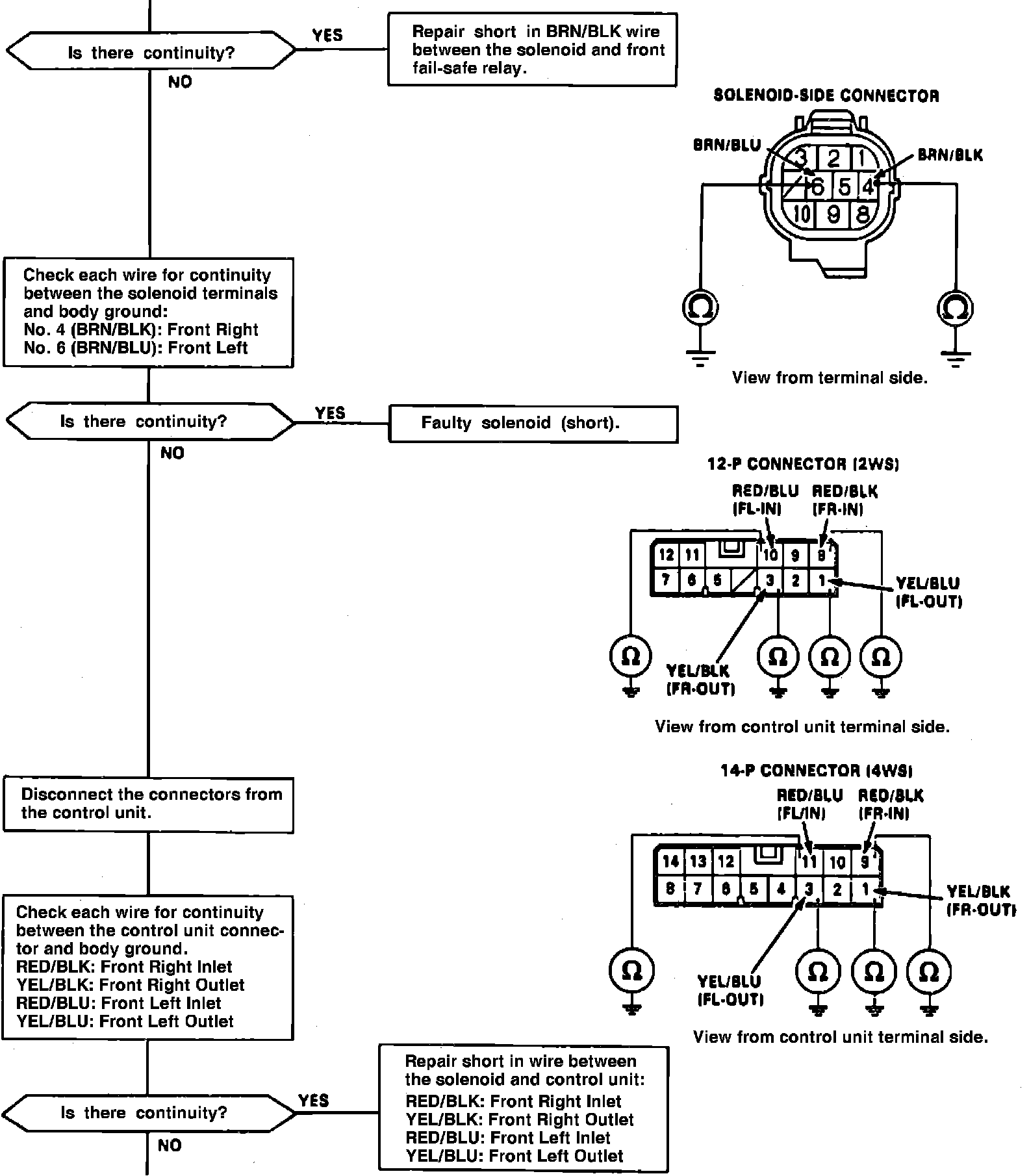

Fig. 40a Code 6-1 (Front Fail Safe Relay Circuit, Part 1 Of 3).:

Fig. 40b Code 6-1 (Front Fail Safe Relay Circuit, Part 2 Of 3).:

Fig. 40c Code 6-1 (Front Fail Safe Relay Circuit, Part 3 Of 3):
