DTC 6-4

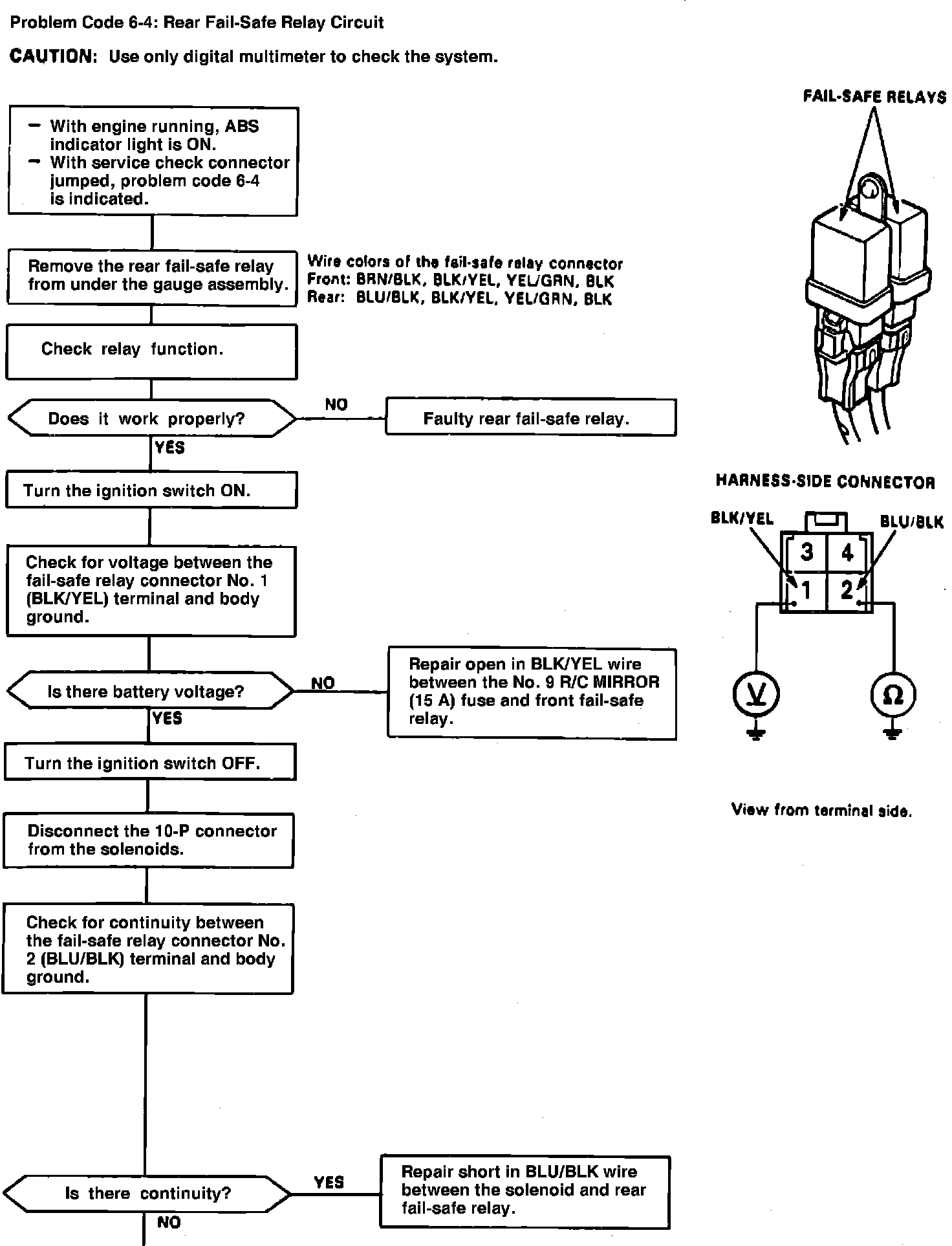

Fig. 41a Code 6-4 (Rear Fail Safe Relay Circuit, Part 1 Of 3).:

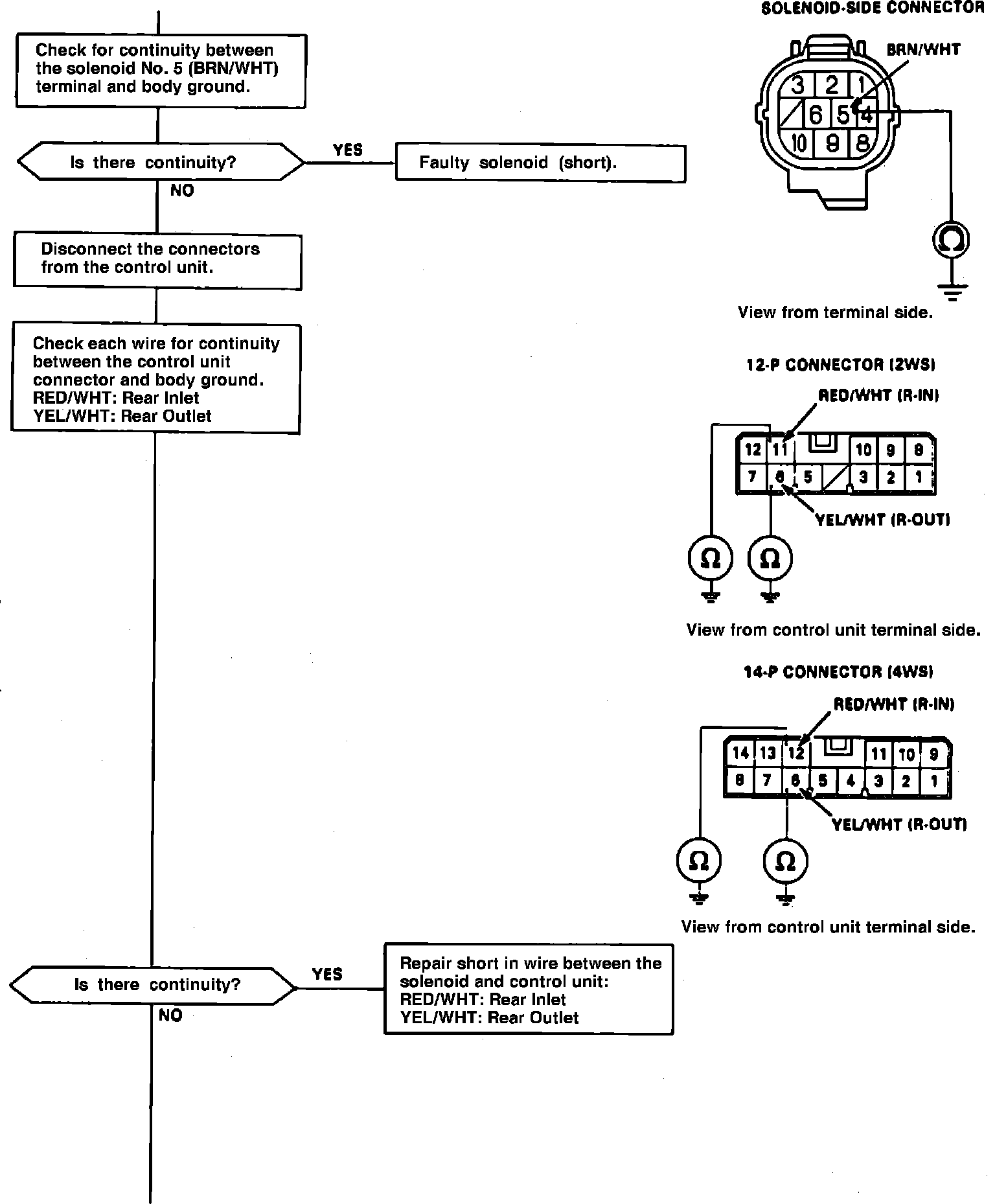

Fig. 41 Code 6-4 (Rear Fail Safe Relay Circuit, Part 2 Of 3).:

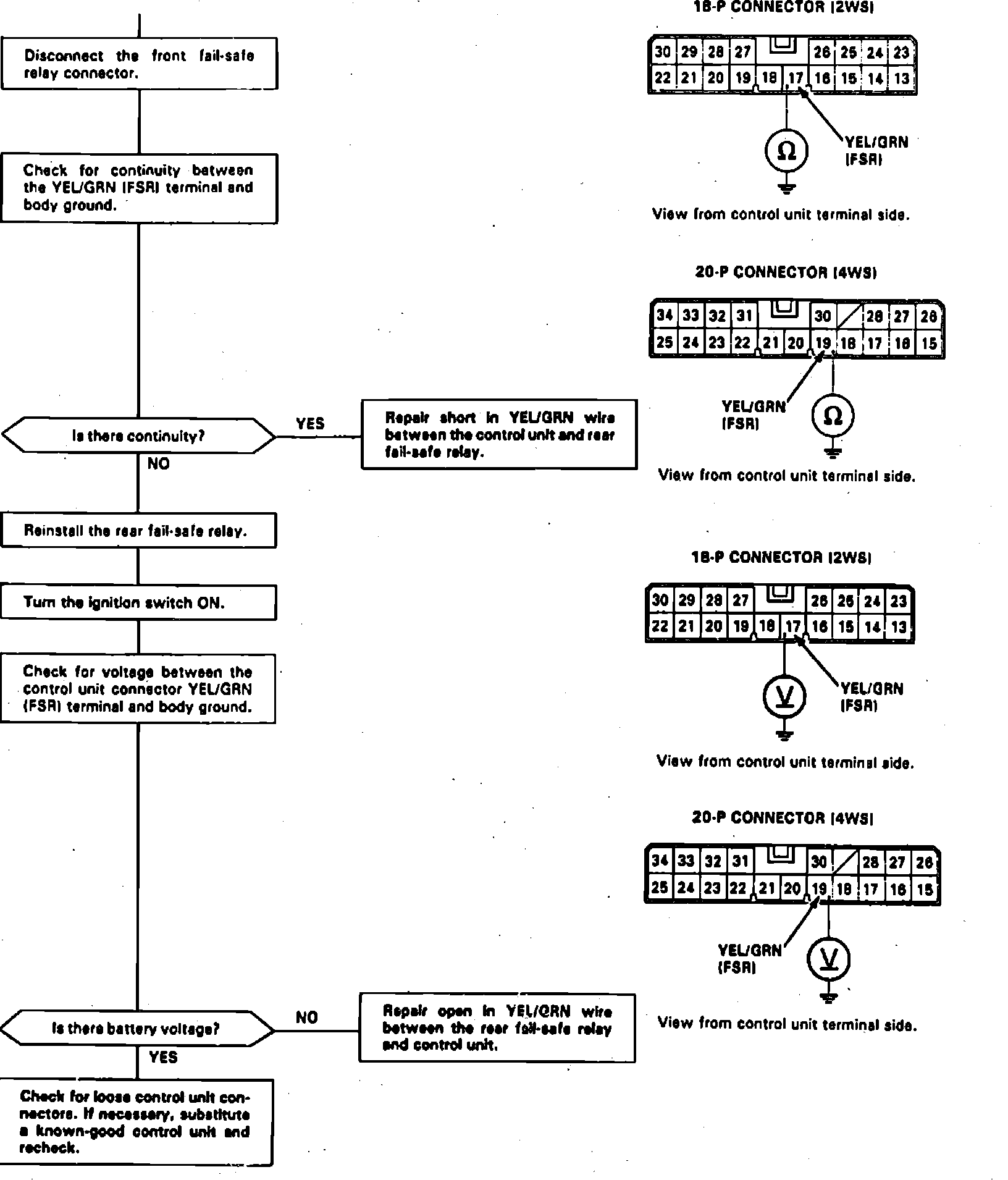

Fig. 41 Code 6-4 (Rear Fail Safe Relay Circuit, Part 3 Of 3).:
