Prelude L4-2.3L DOHC
>>
Repair and Diagnosis
>>
Cruise Control
>>
Diagrams
>>
Electrical Diagrams
>>
With Air Bag
With Air Bag
Cruise Control - 4 Of 4:

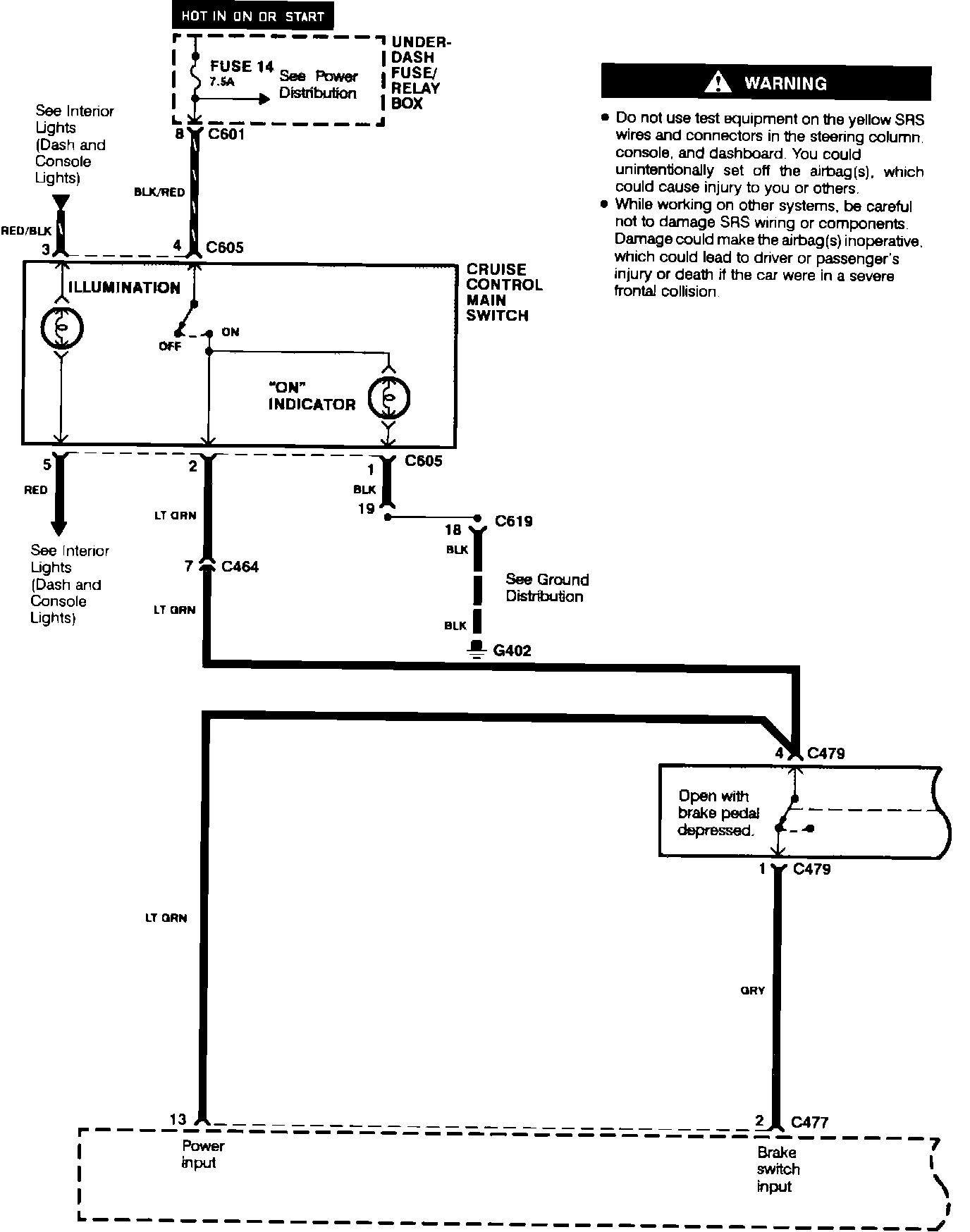

Cruise Control - 3 Of 4:

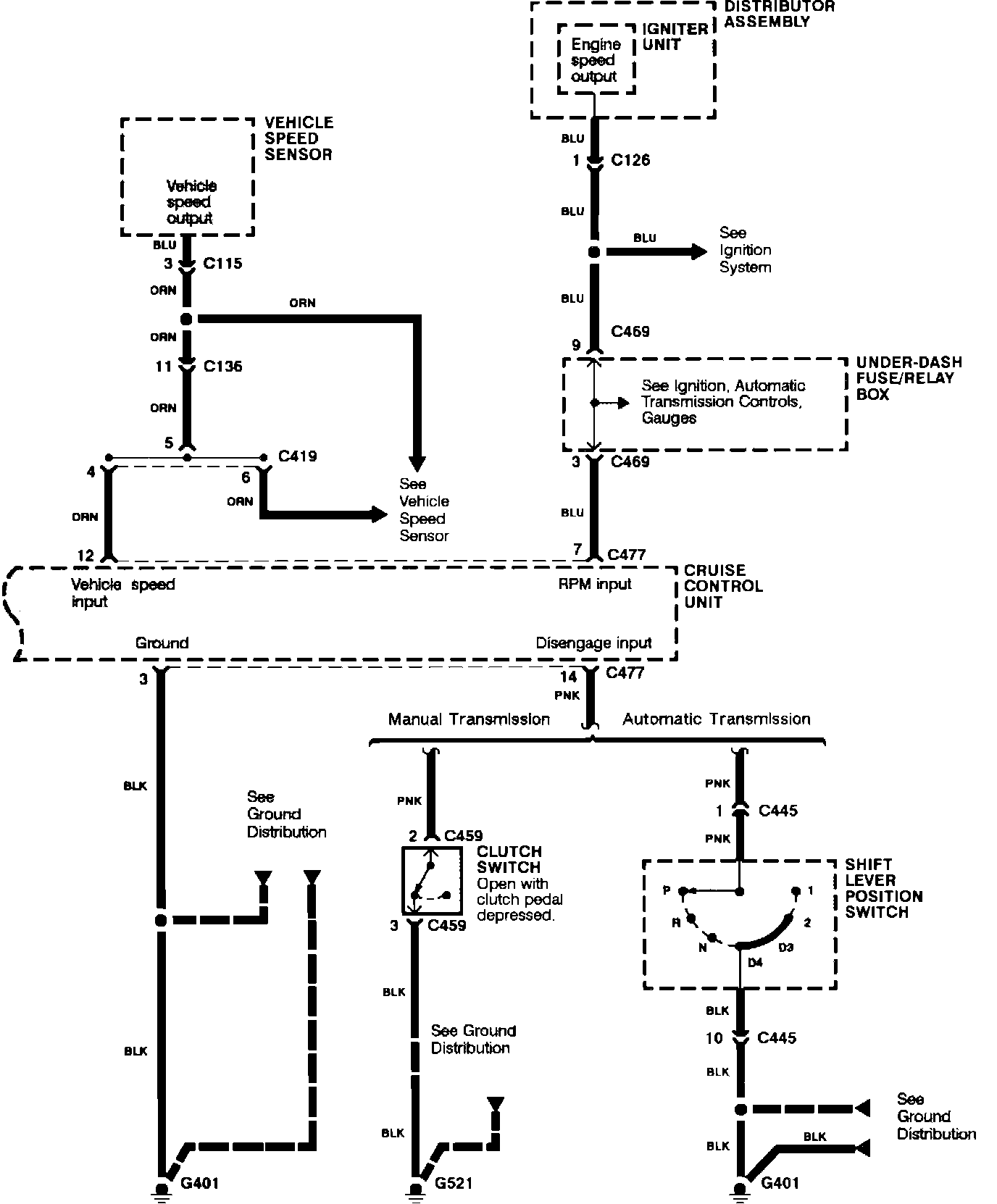

Cruise Control - 1 Of 4:

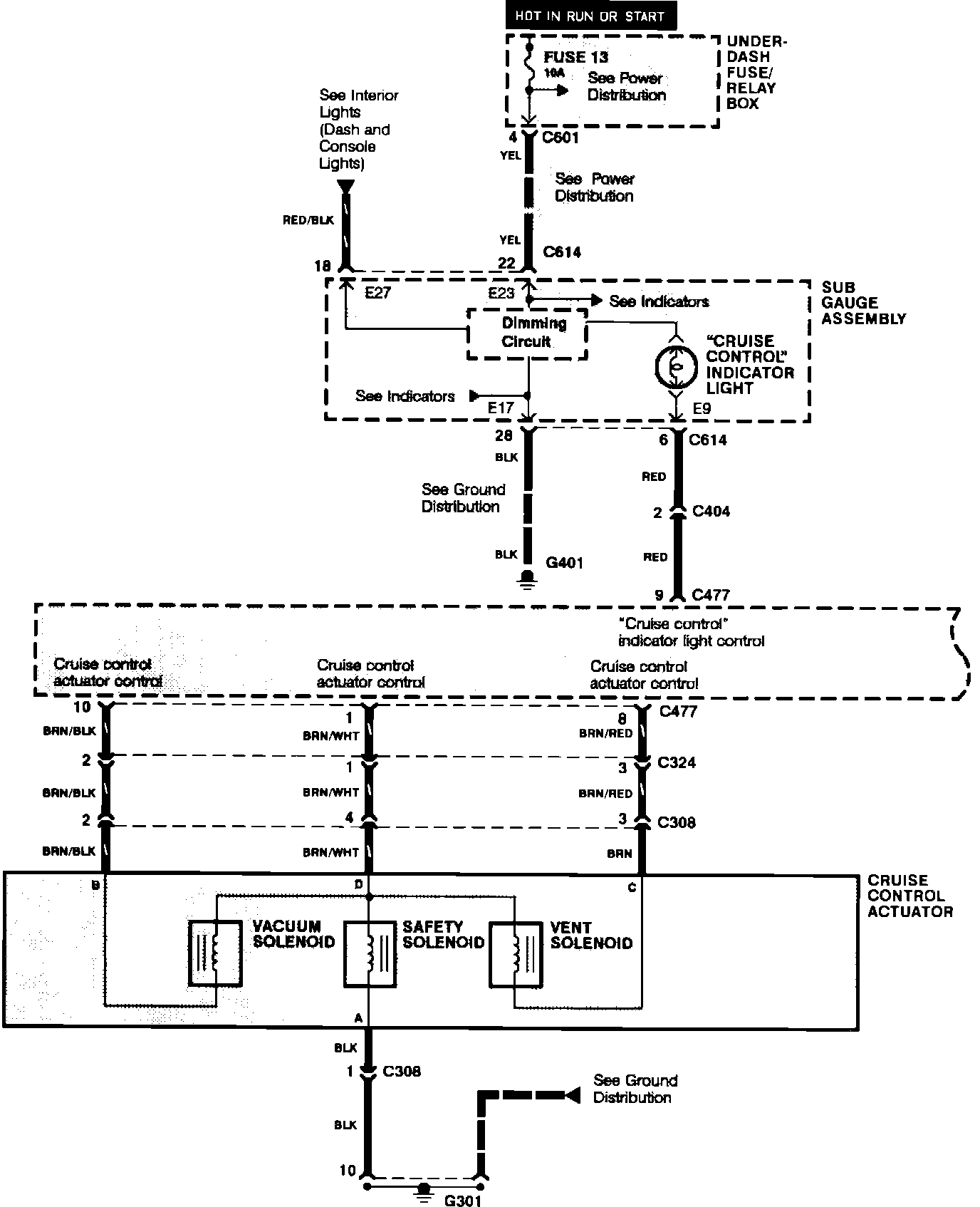

Cruise Control - 2 Of 4:
