System Diagram

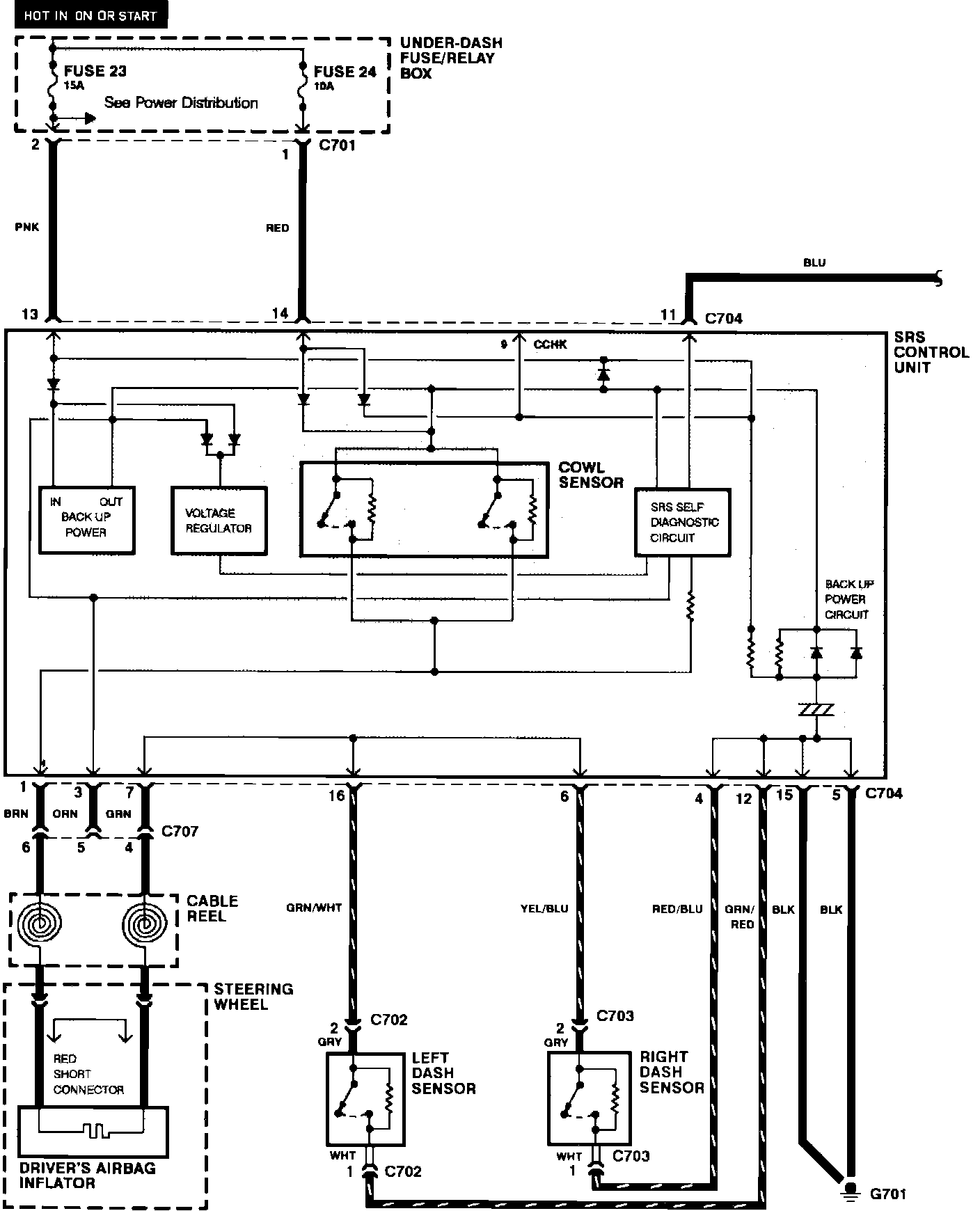

Fig. 8 SRS System Circuit Wiring Diagram:

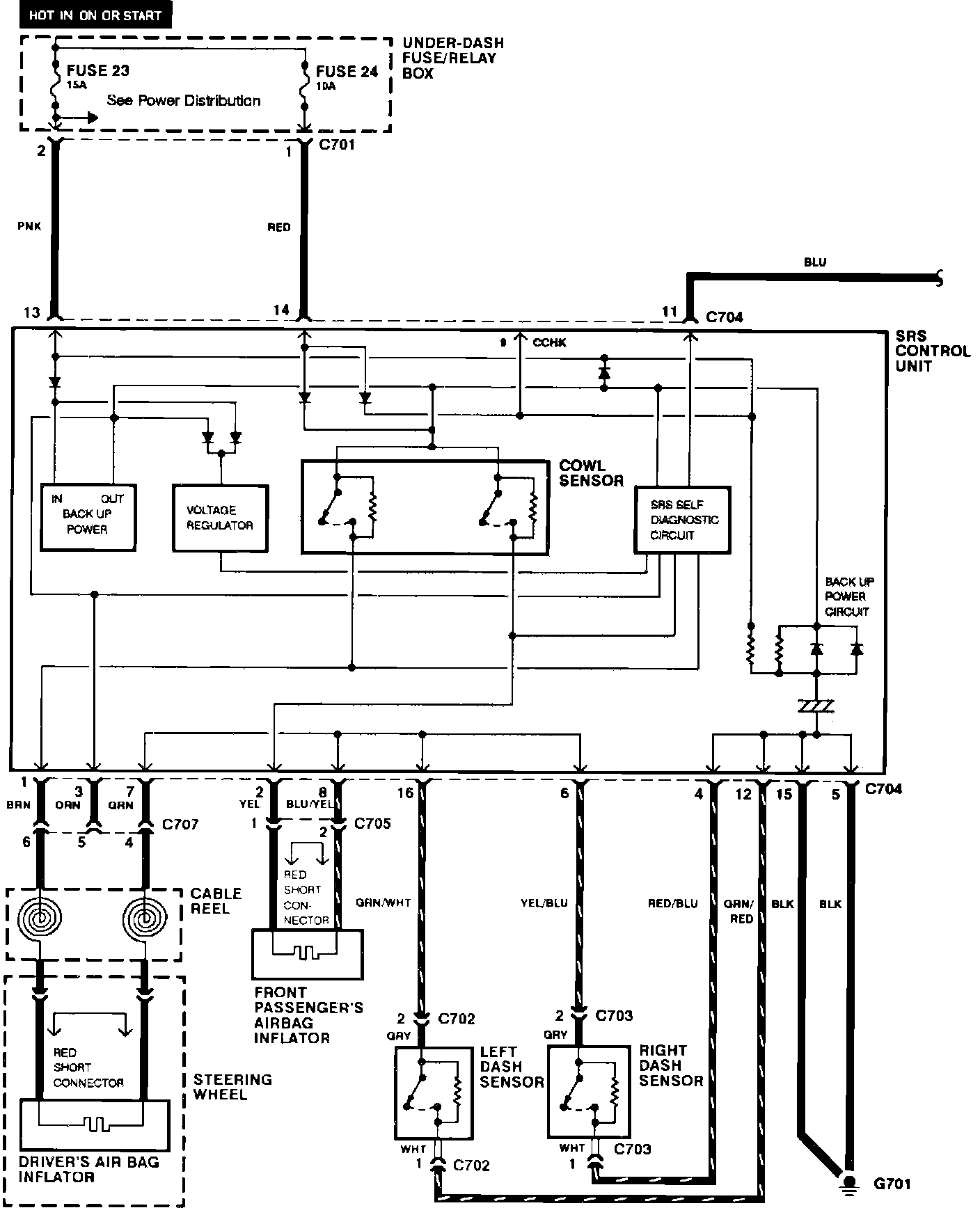

Fig. 9 SRS System Circuit Wiring Diagram. w/Passenger Side Airbag:

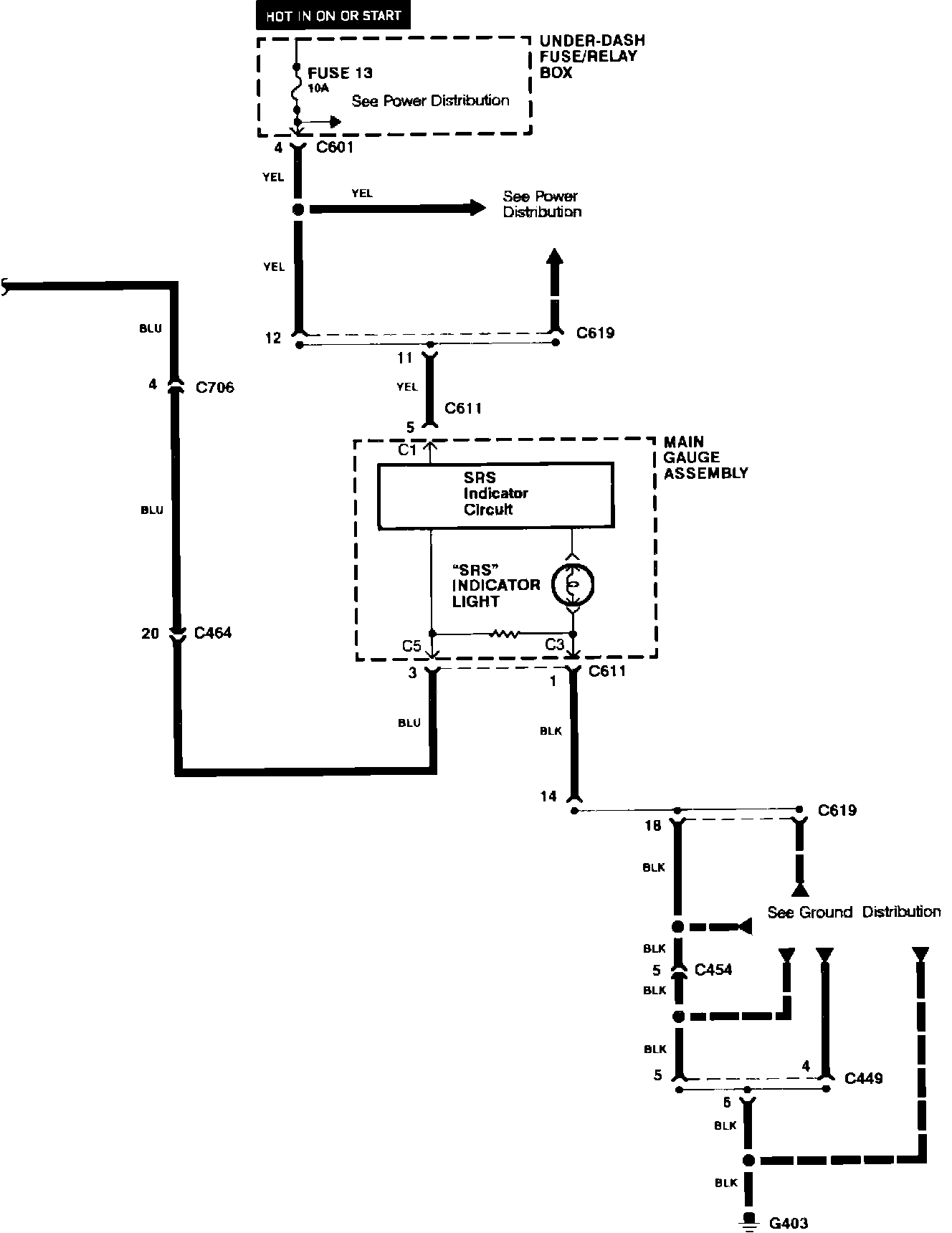

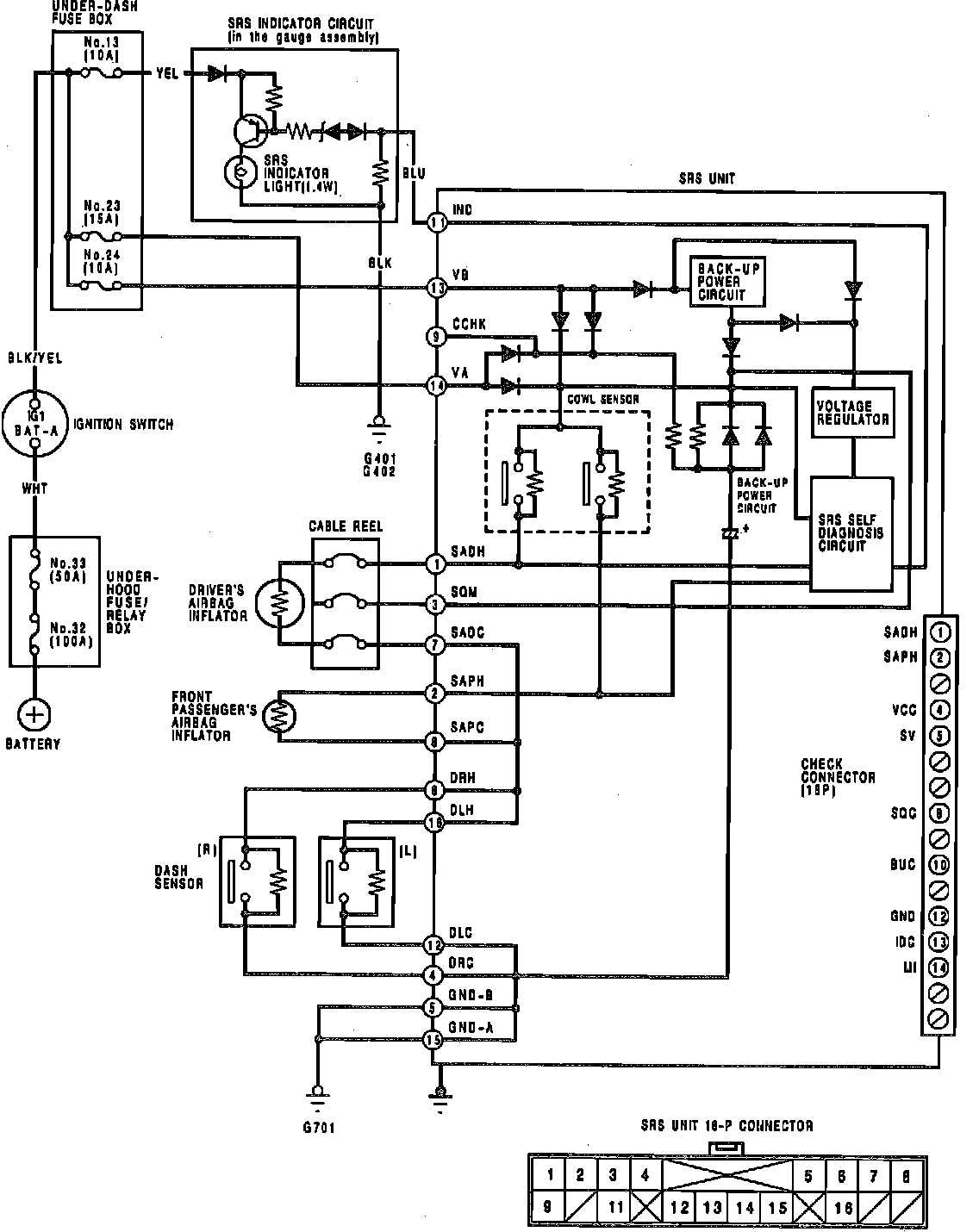

Supplemental Restraint System (SRS):



Supplemental Restraint System (SRS):



Supplemental Restraint System (SRS):



Supplemental Restraint System (SRS):
