Home >> Honda >> 1992 >> Prelude L4-2.3L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Courtesy Lamp

Courtesy Lamp

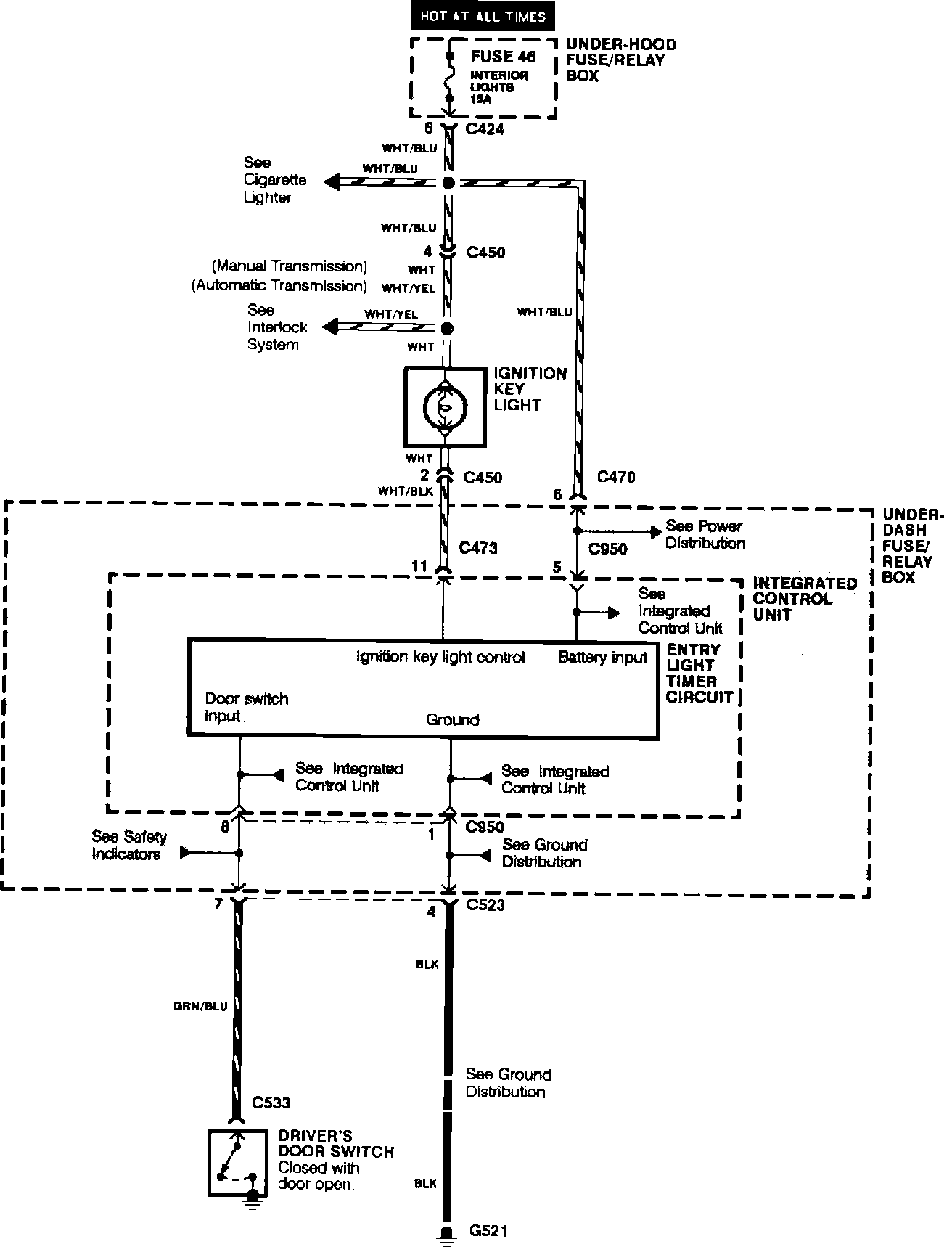

Entry Light Timer System (Si Models):
