Home
>>
Honda
>>
1992
>>
Prelude L4-2.3L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>

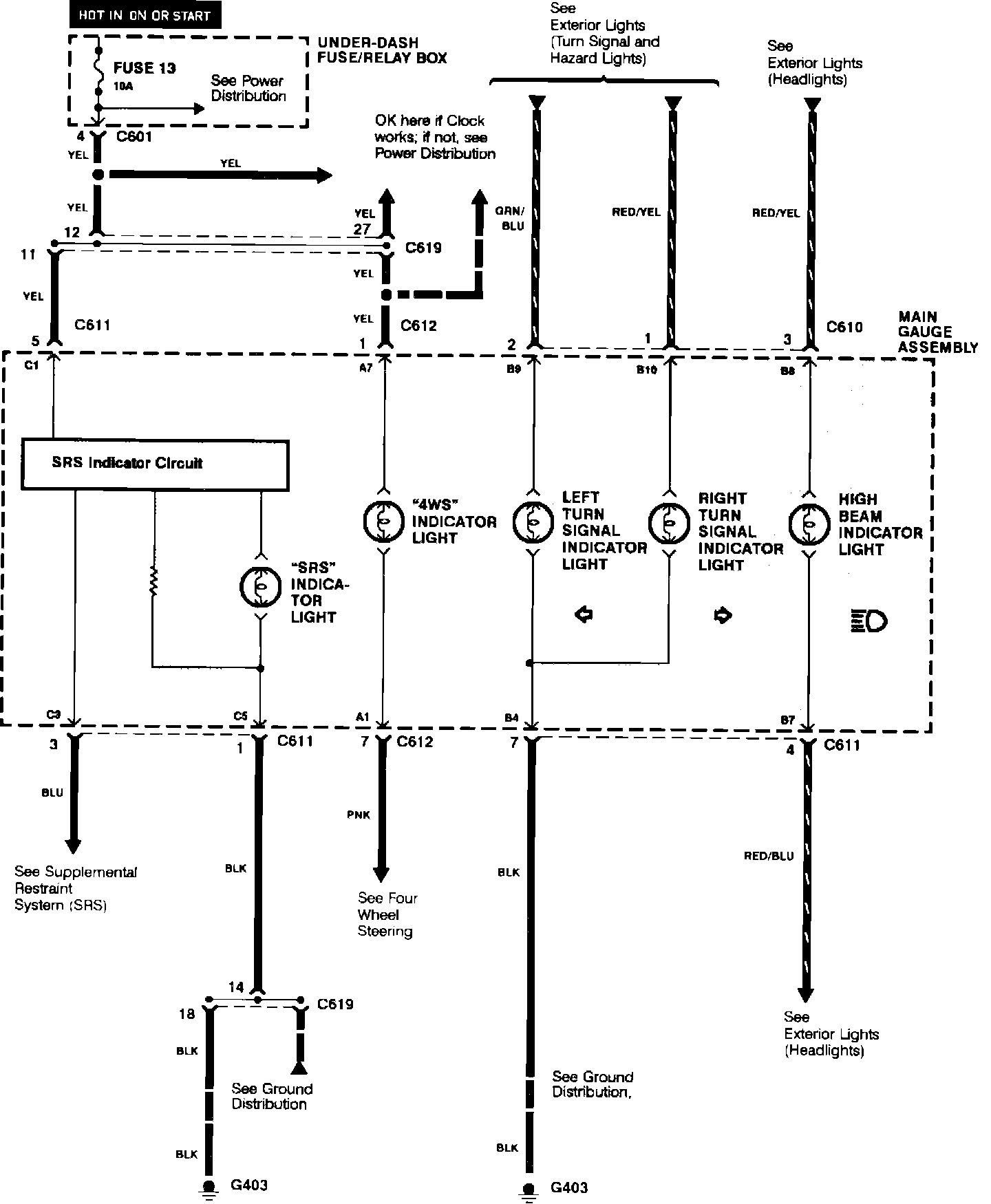

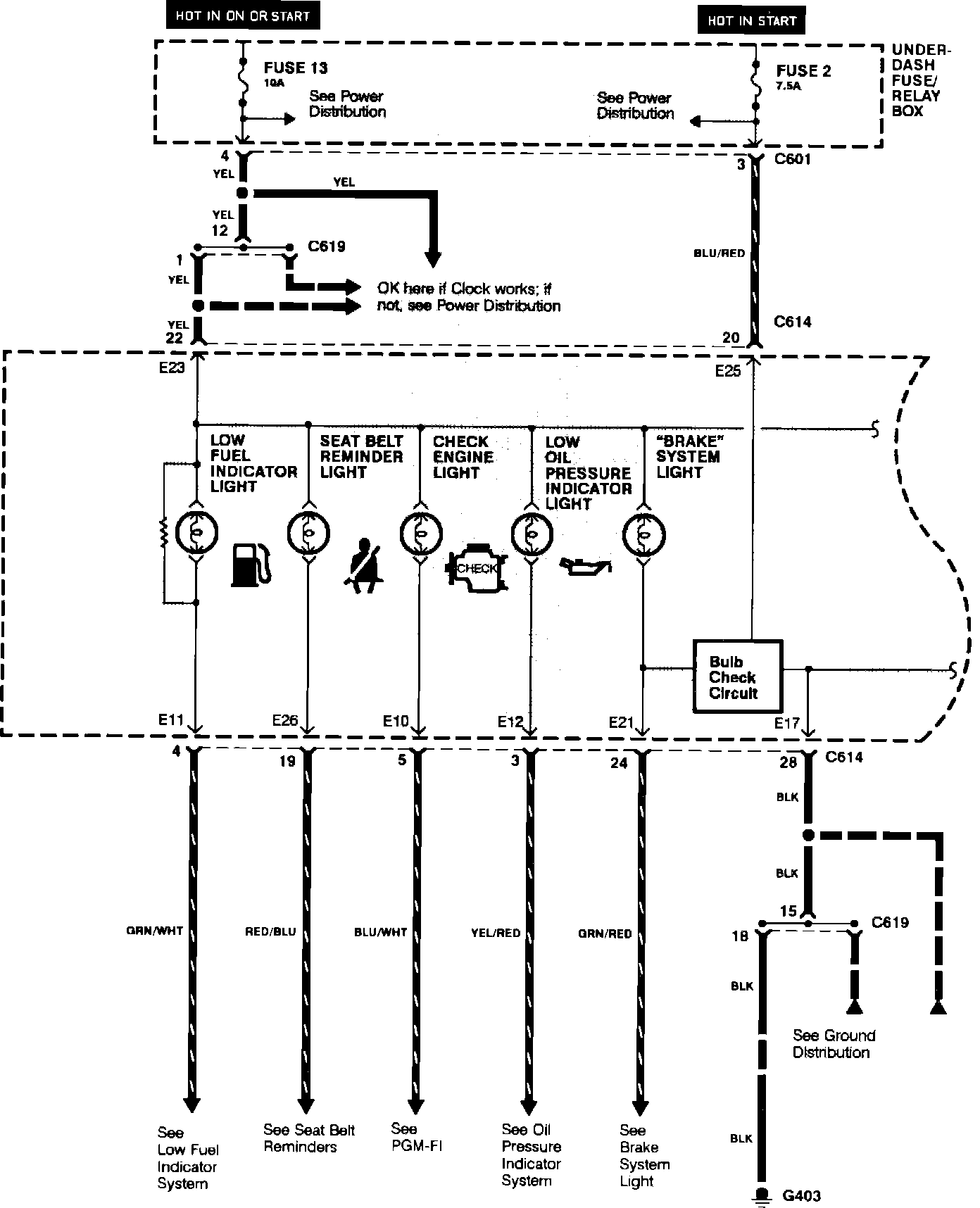

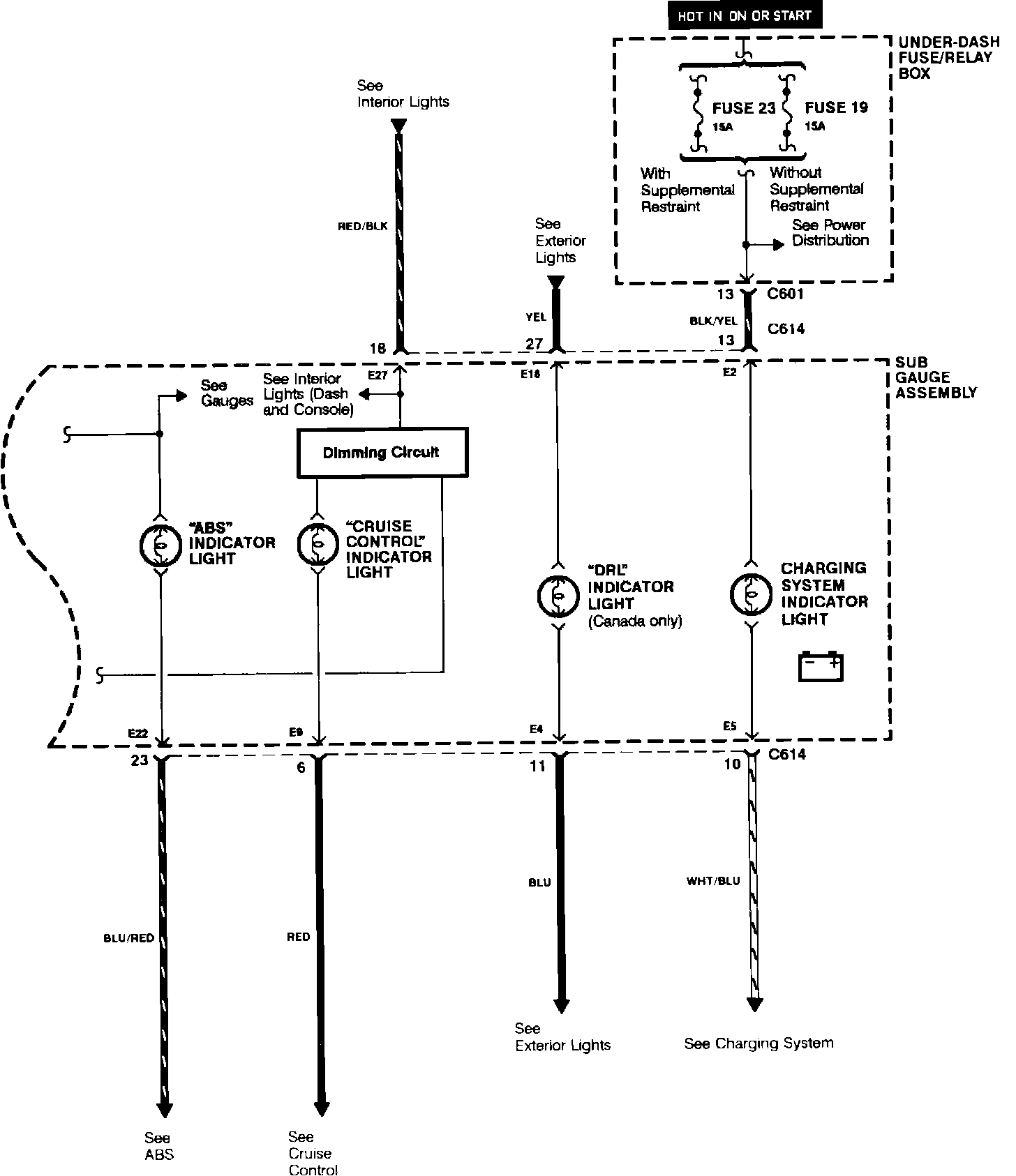

Electrical Diagrams
>>
Daytime Running Lamp Control Unit
Daytime Running Lamp Control Unit
Indicators:
Indicators:
Indicators:
