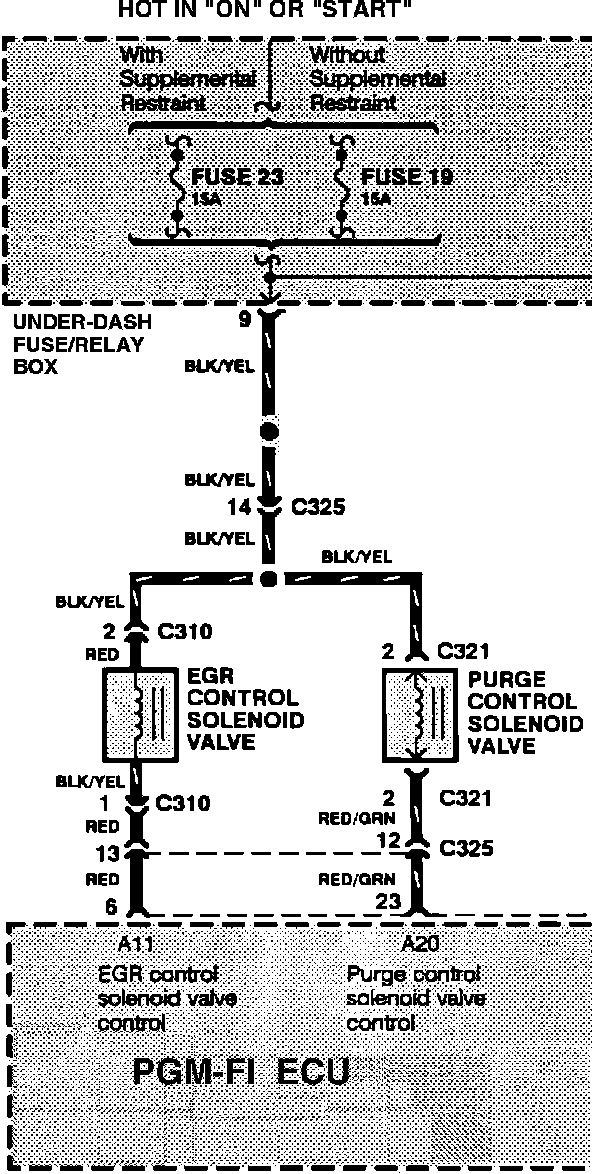

EGR Control Solenoid

EGR Control Solenoid:






For further information, see CHASSIS ELECTRICAL DIAGRAMS
