Honda
>>
1992
>>
Prelude L4-2.3L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>

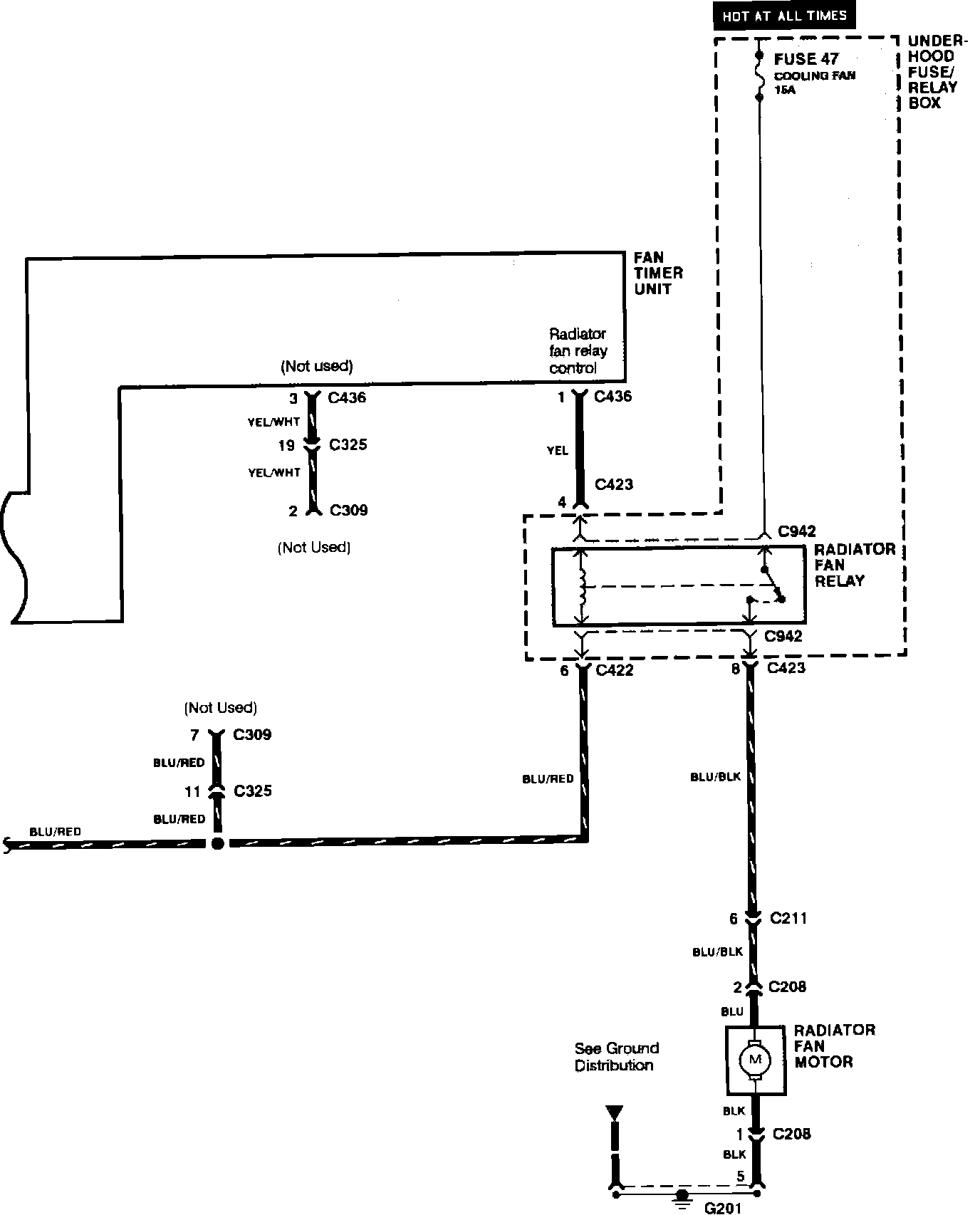

Radiator Cooling Fan Motor
>>
Without Air Conditioning
Without Air Conditioning

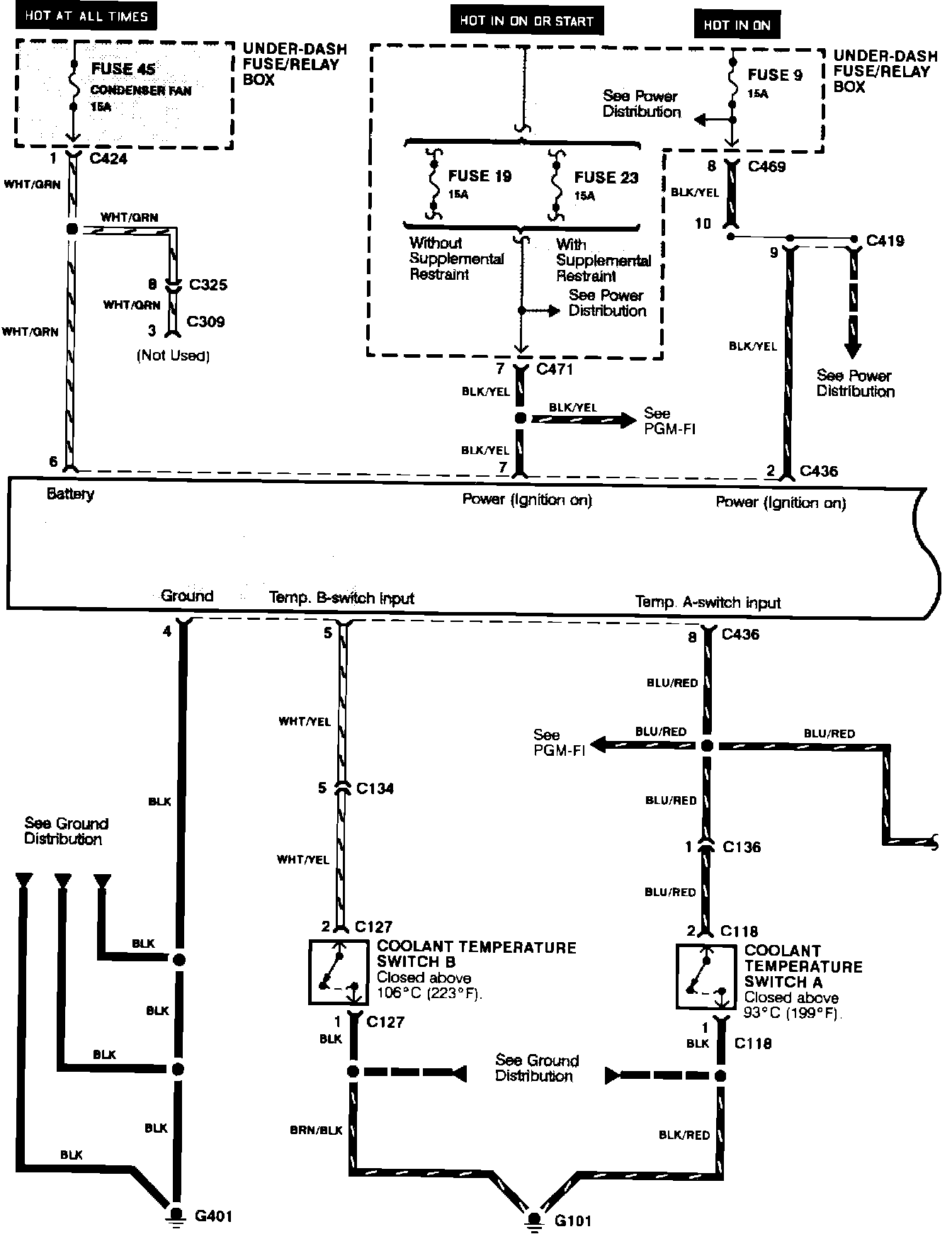

Fans S Models:
Fans S Models:
