Home >> Honda >> 1992 >> Prelude L4-2.3L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio/Stereo

Radio/Stereo

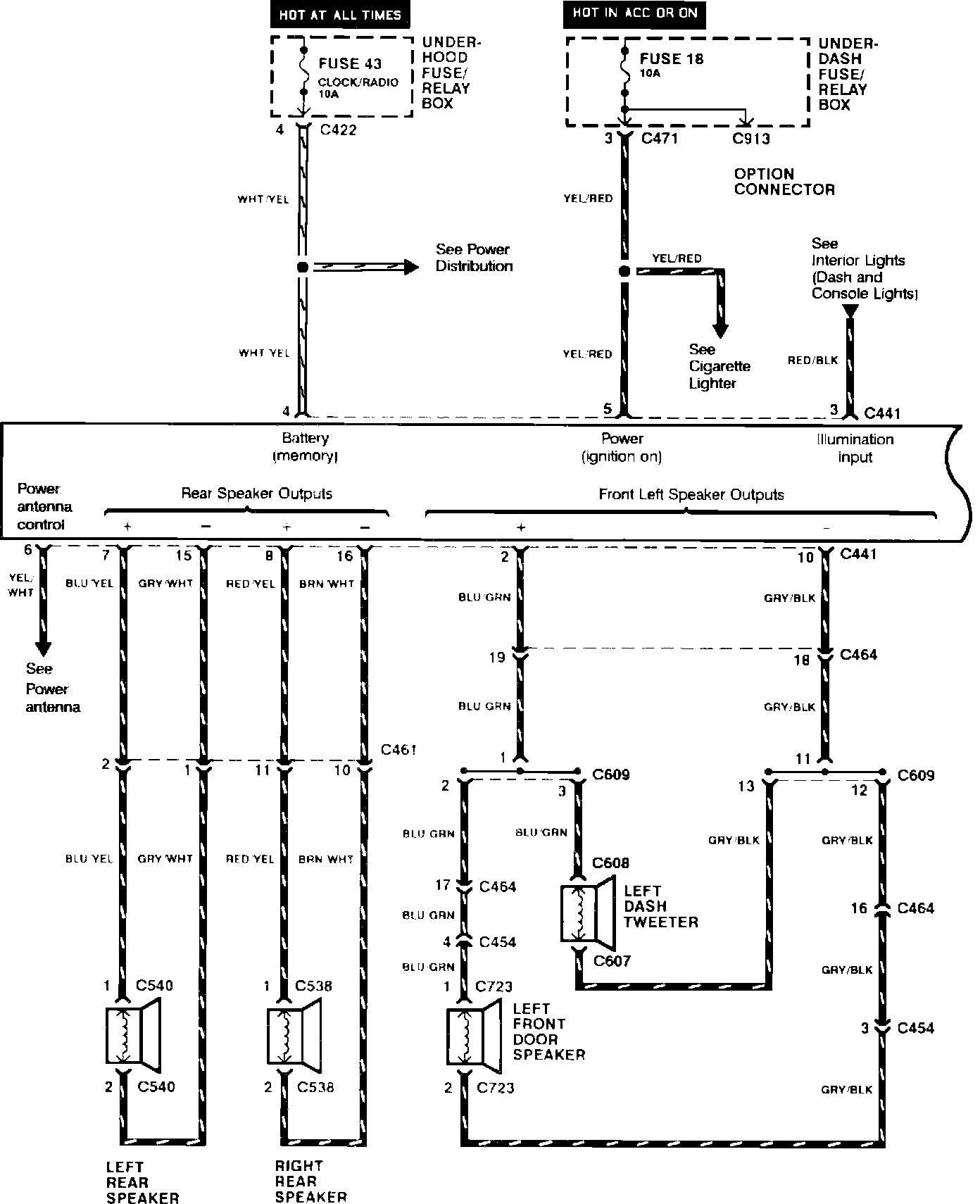

Stereo Sound System:



Stereo Sound System:
