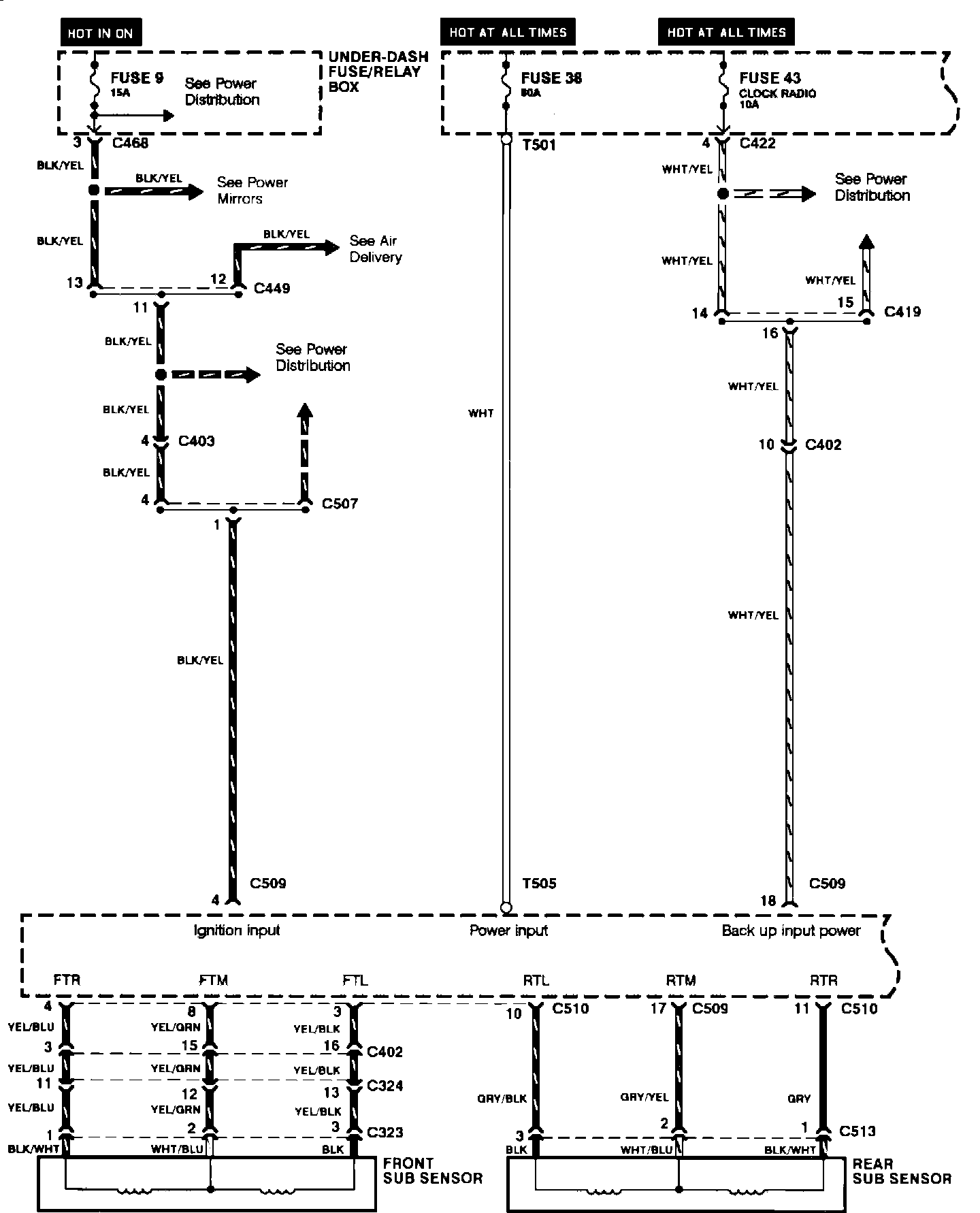

Four Wheel Steering (4WS) Control System
Four Wheel Steering (4WS):
Four Wheel Steering (4WS):
Four Wheel Steering (4WS):
Four Wheel Steering (4WS):
