Home >> Honda >> 1992 >> Prelude L4-2.3L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Vanity Lamp

Vanity Lamp

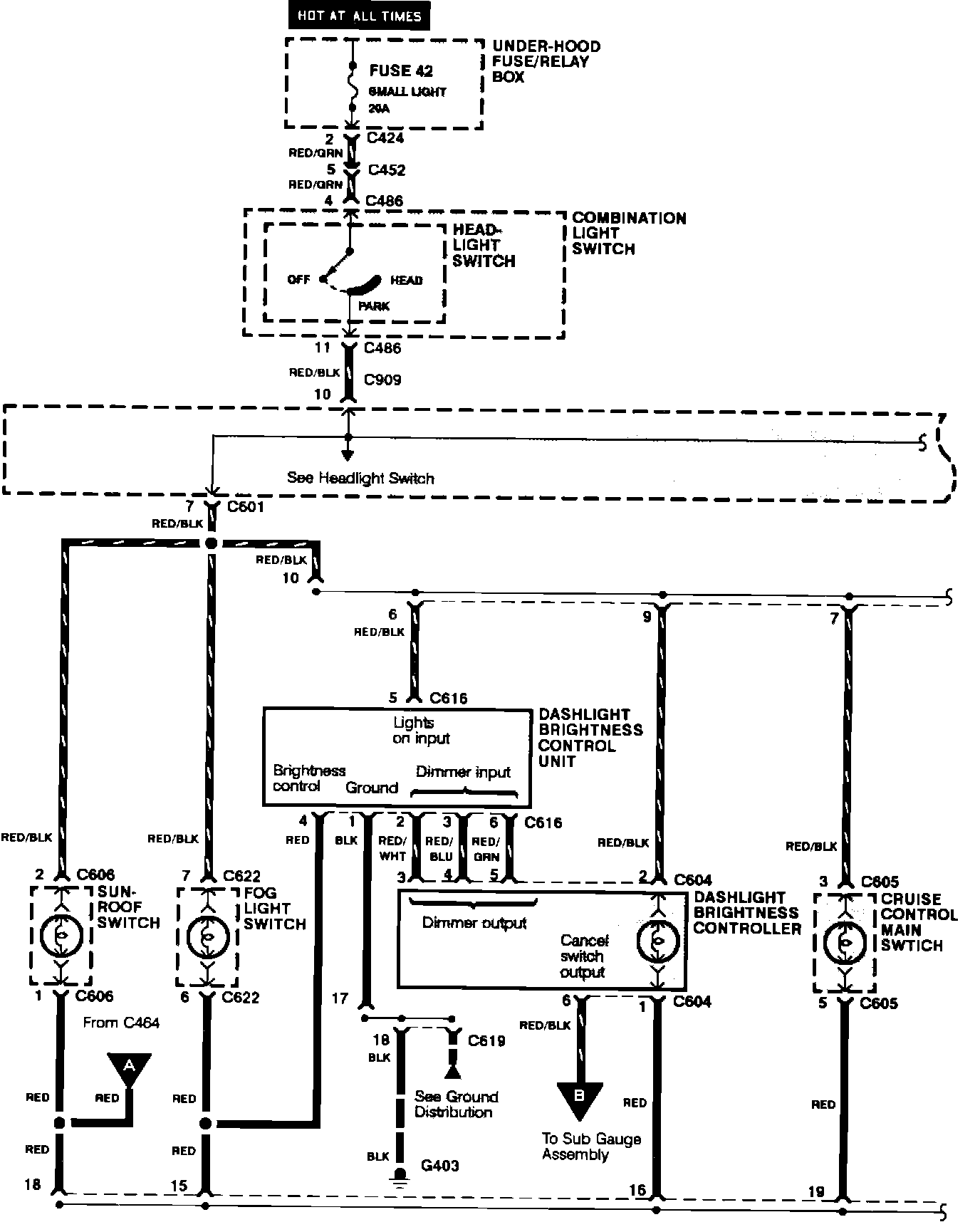

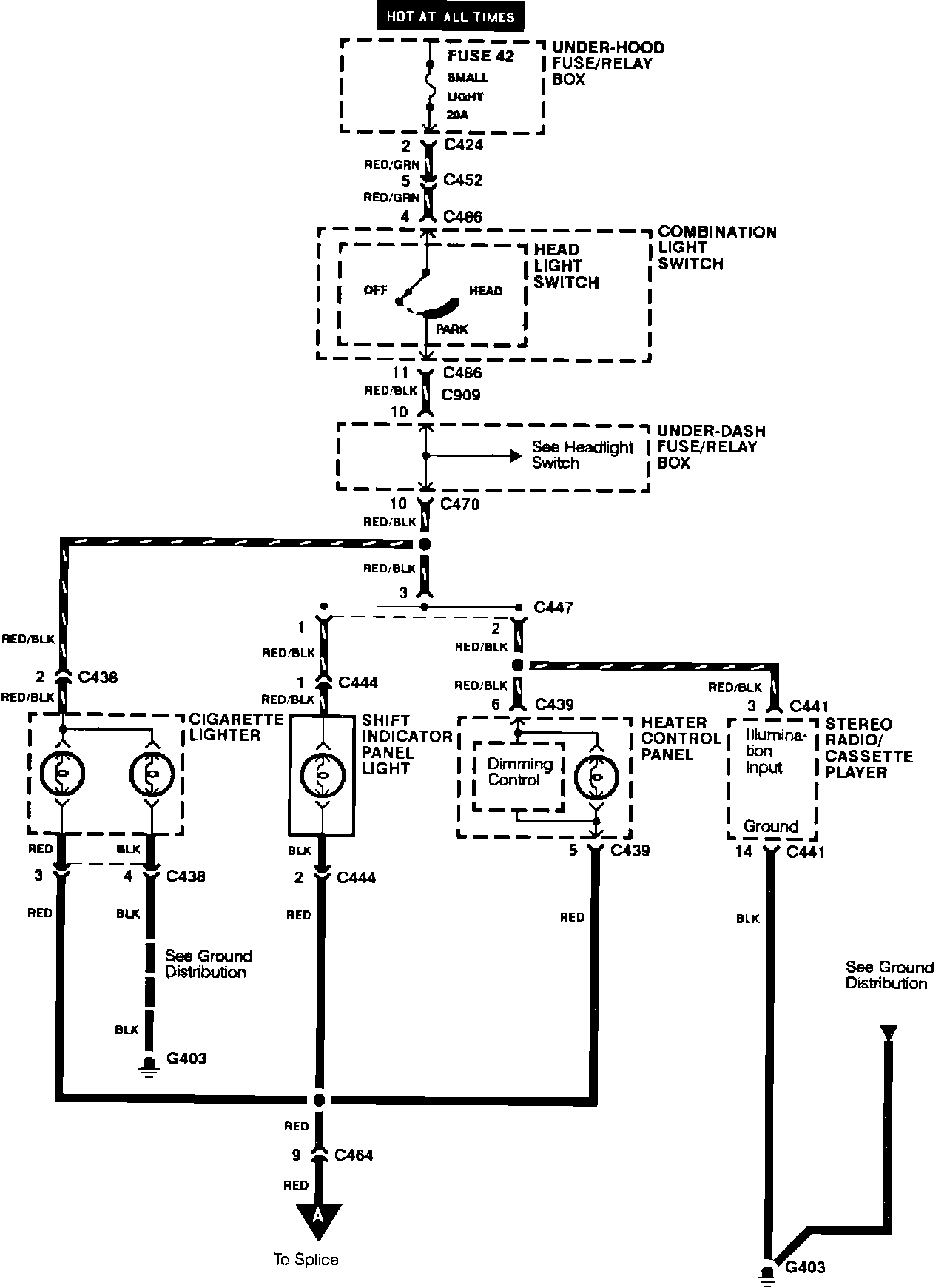

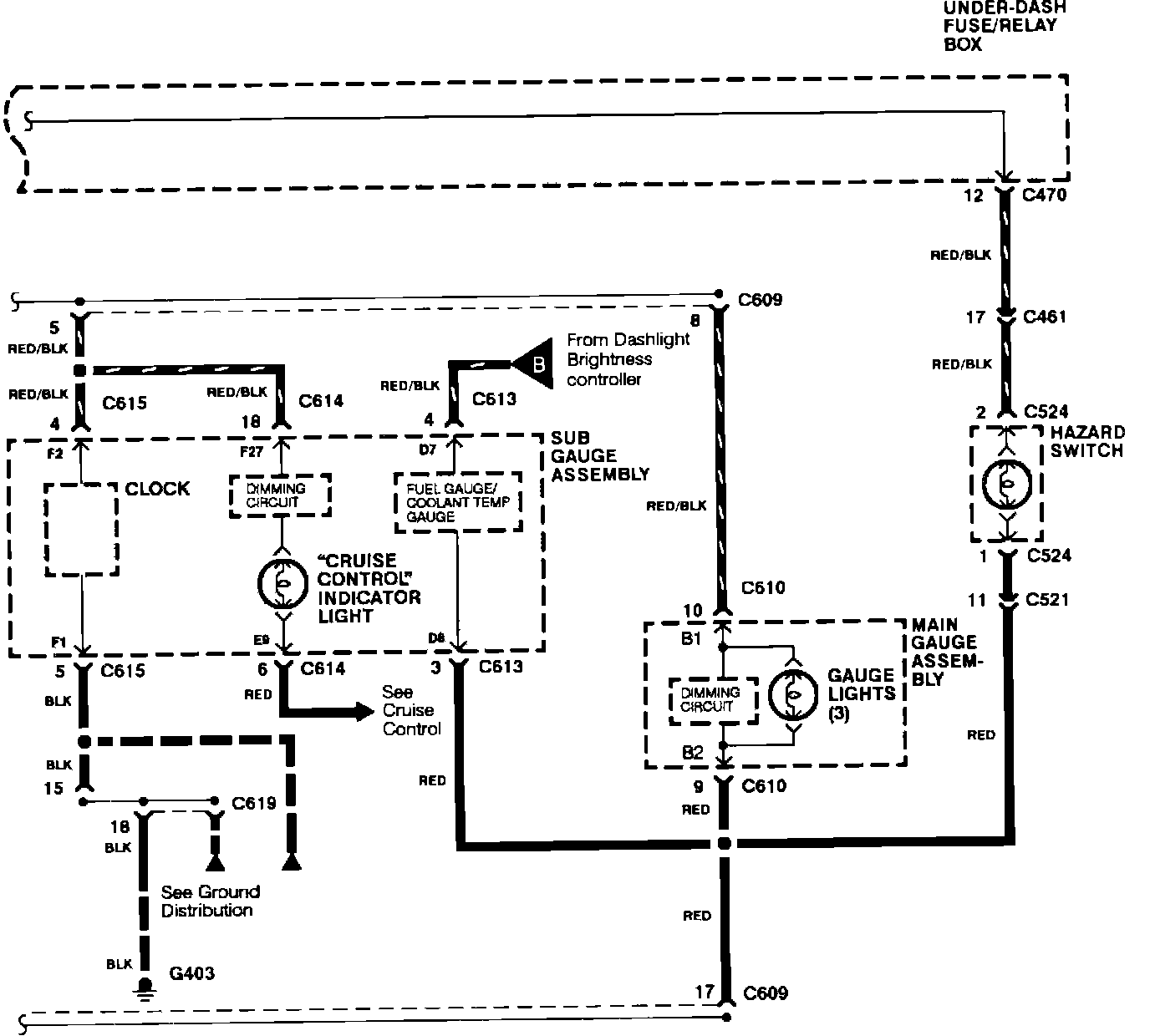

Dash And Console Lights:



Dash And Console Lights:



Dash And Console Lights:
