Fan Timer Unit Input

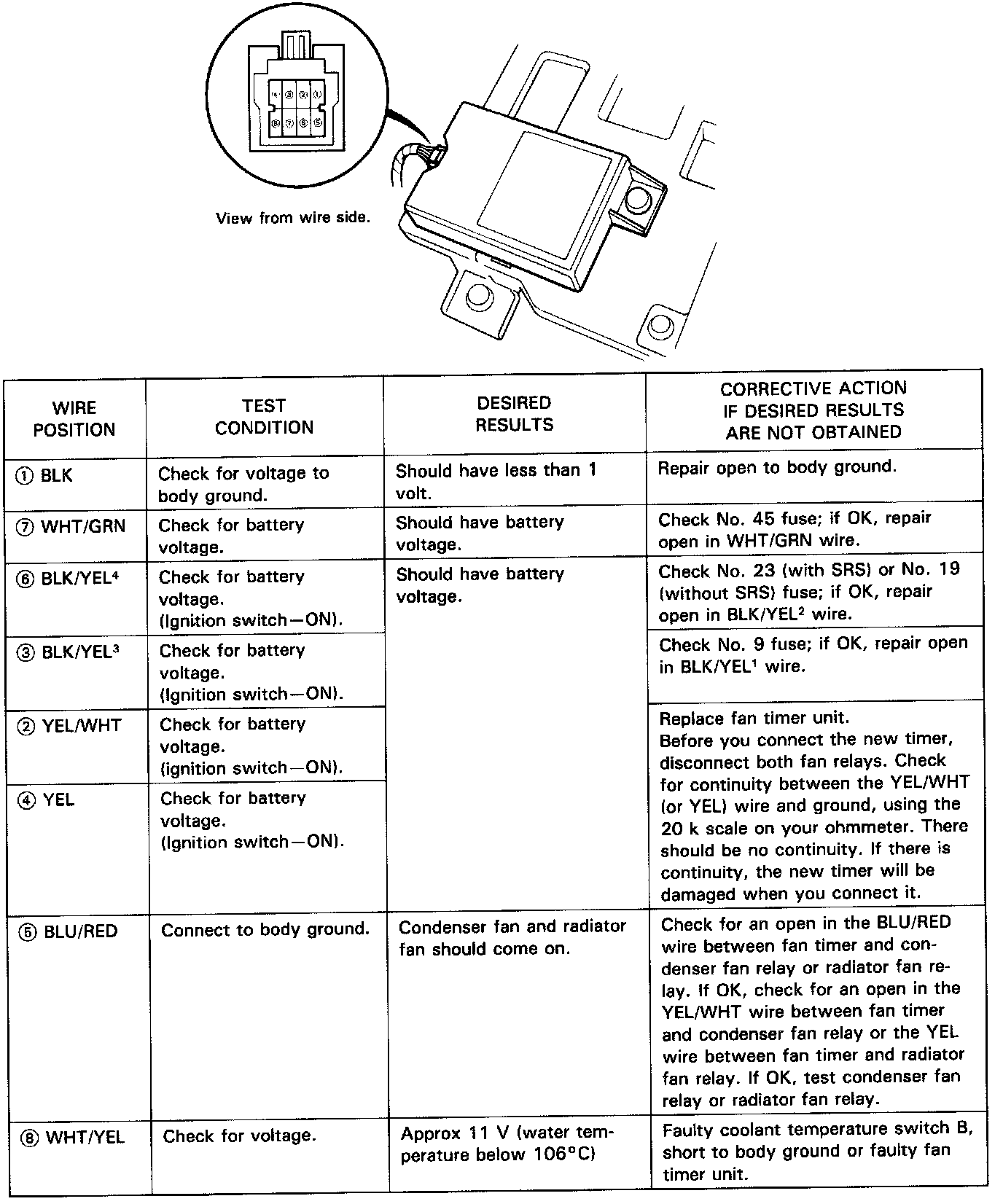

Fan Timer Unit Input Tests

NOTE: Perform the following tests with the fan timer connected and the ignition switch ON. If you find the cause of a problem, correct it before you continue.
