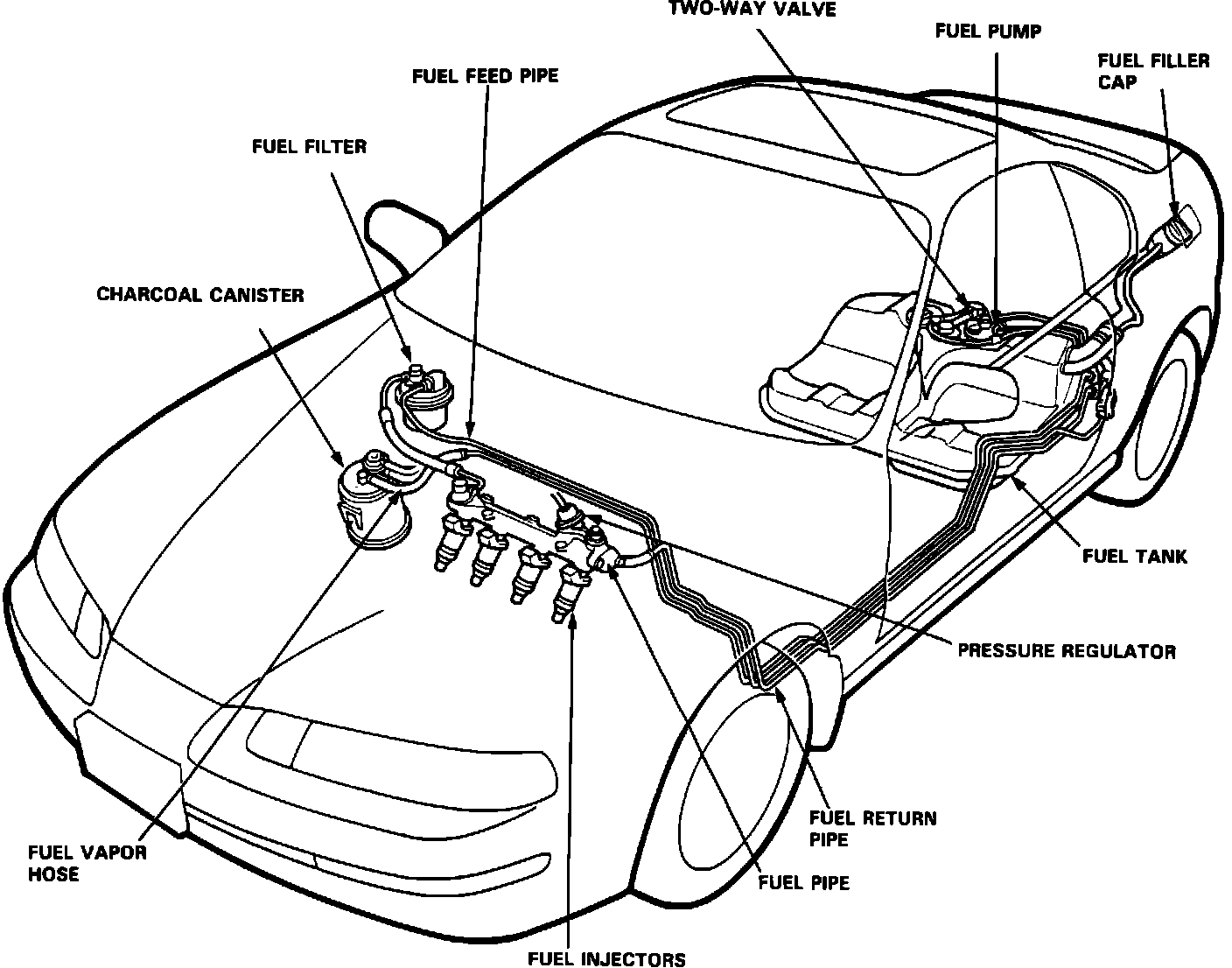

Evaporative Emissions System: Locations

EVAP System:

CHARCOAL CANNISTER:
Located in the right rear corner of the engine compartment.

PURGE CONTROL DIAPHRAGM VALVE:
Located on top of the carbon cannister.

PURGE CUT-OFF SOLENOID VALVE:
Located on the upper center of the firewall.

TWO-WAY VALVE:
Located in the top of the fuel tank.
