Electrical Diagrams

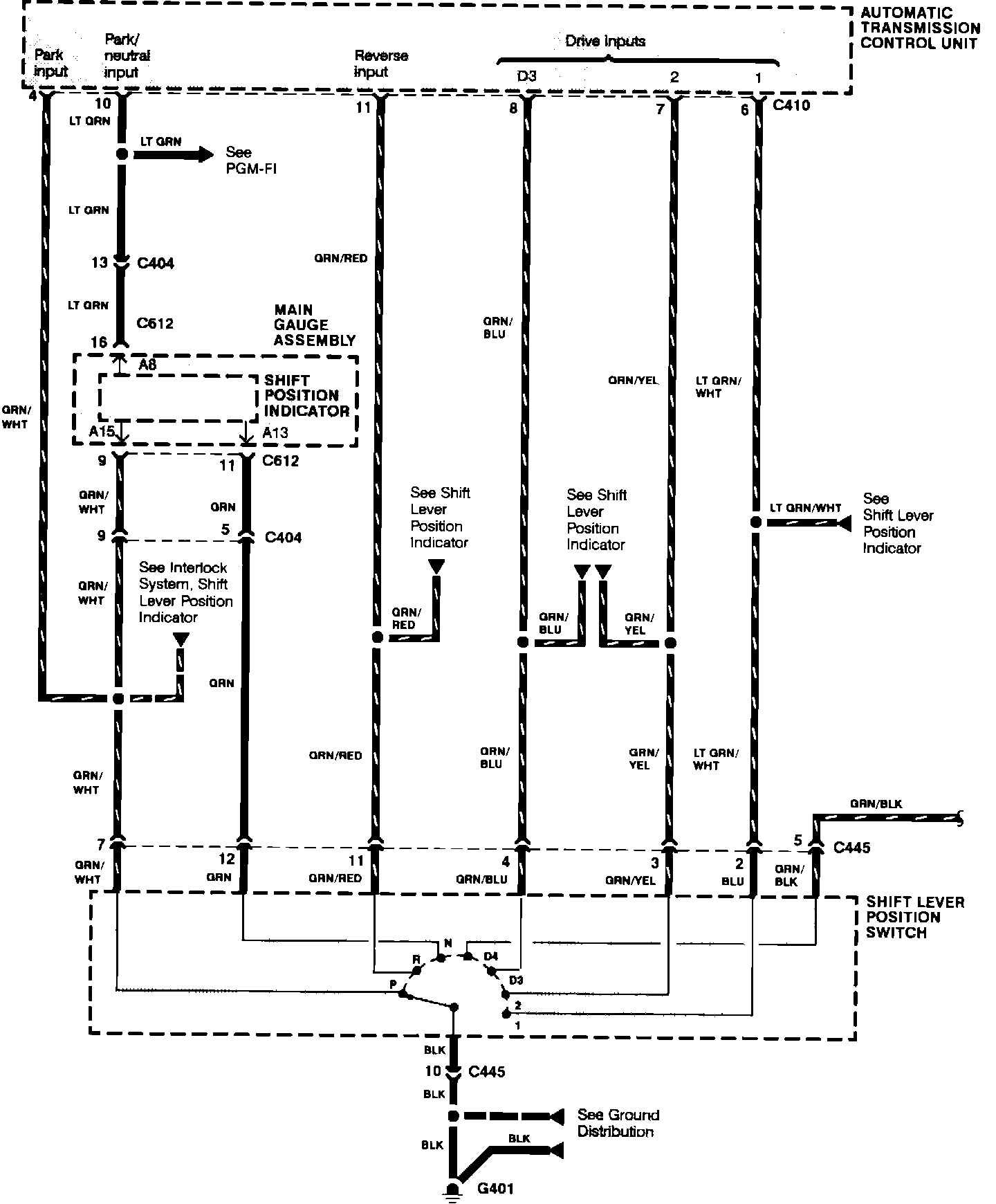

Automatic Transmission Control:

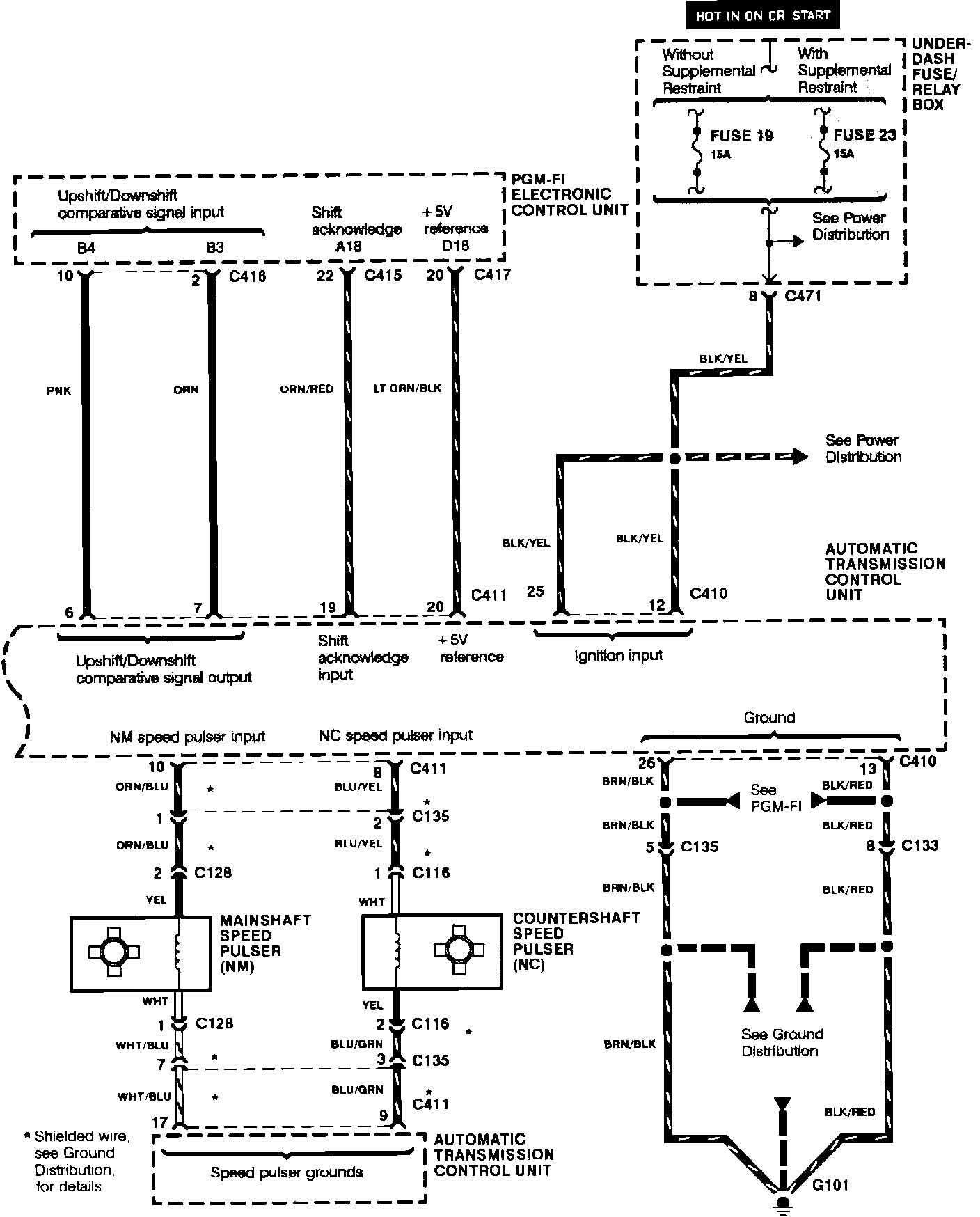

Automatic Transmission Control:



Automatic Transmission Control:



Automatic Transmission Control:
