Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
1992
>>
Prelude L4-2.3L DOHC
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Locations
>>
Connector Locations
Connector Locations

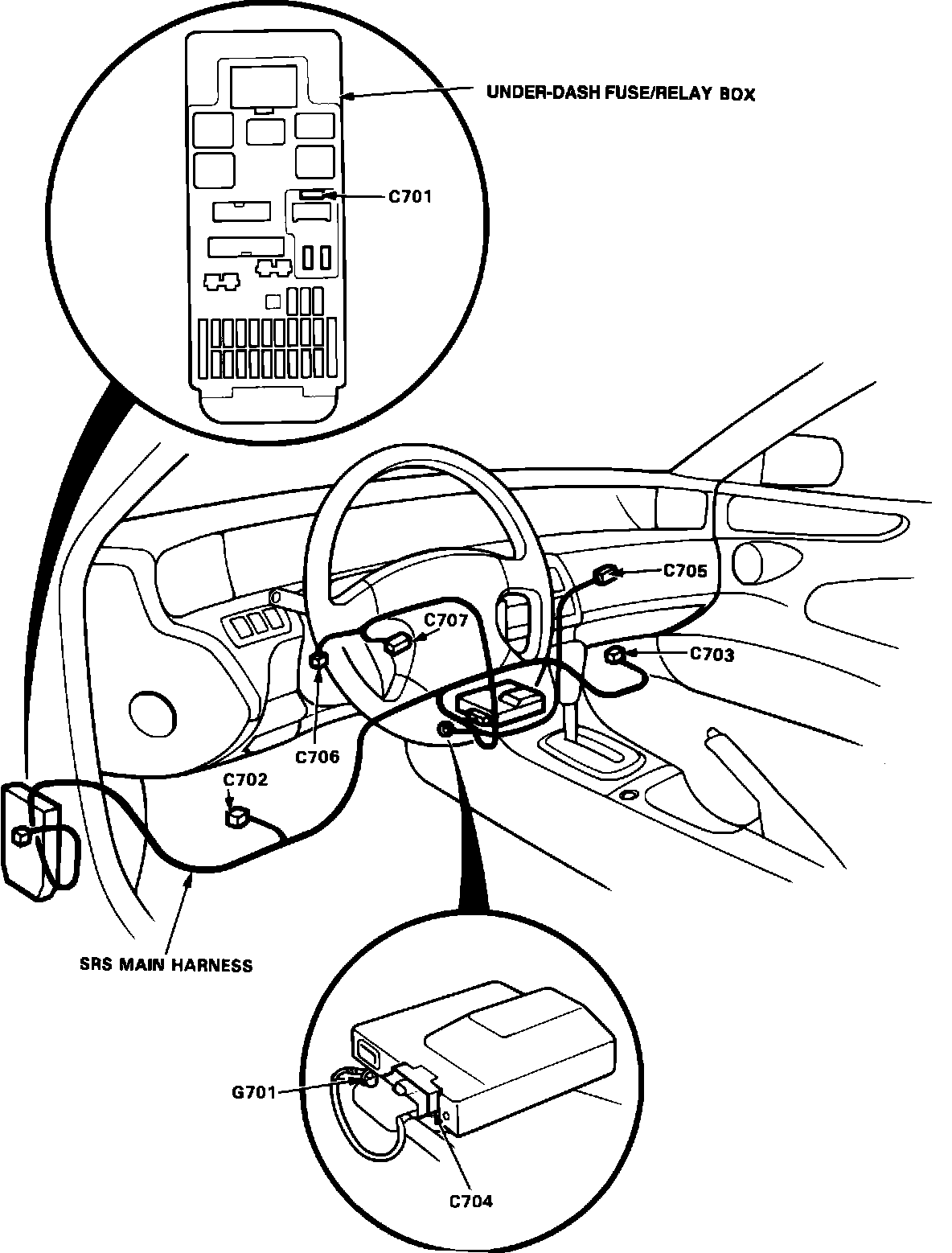

Seatbelt Restraint Main Harness:
