Home
>>
Honda
>>
1992
>>
Prelude L4-2.3L DOHC
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

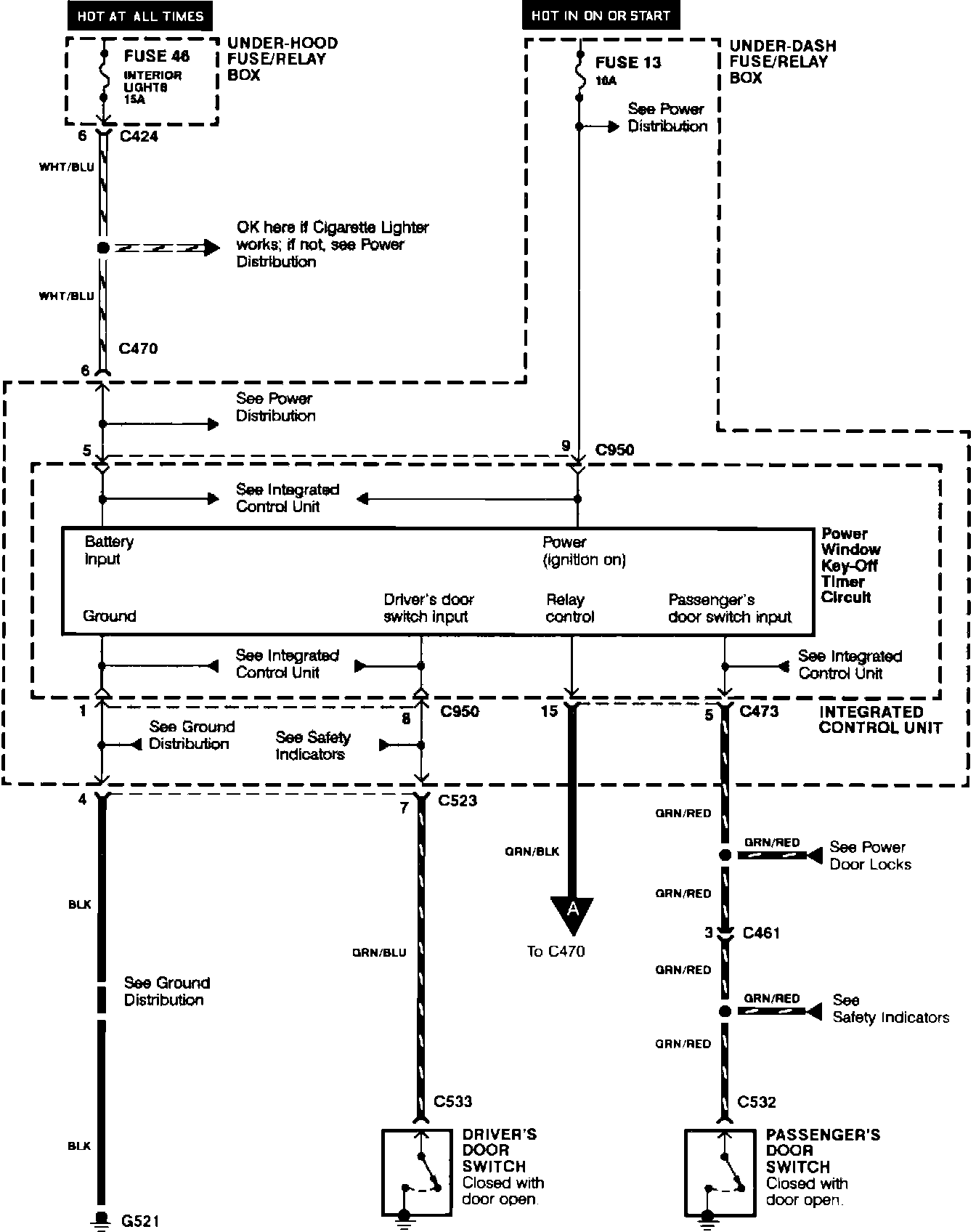

Key-off Timer Circuit:

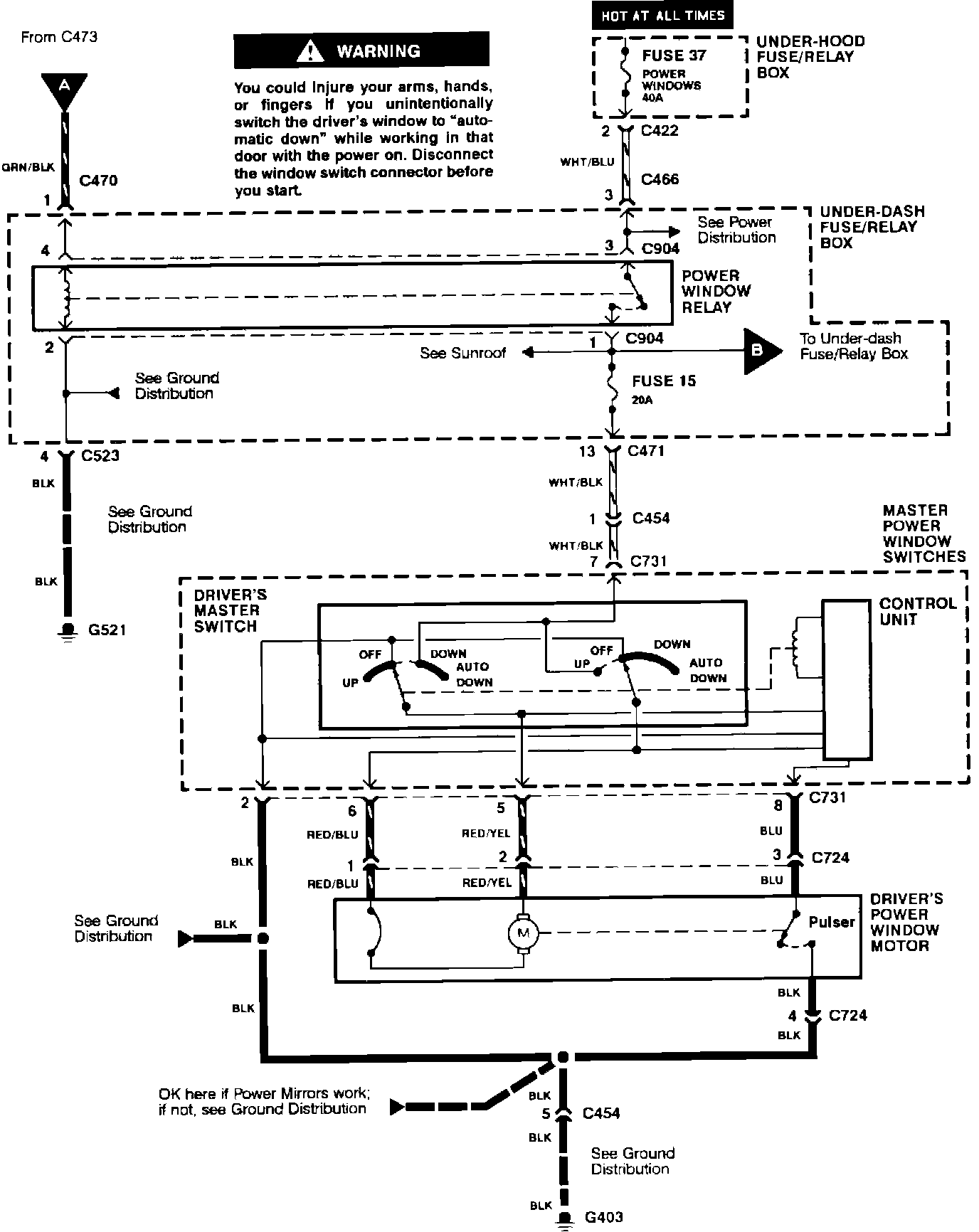

Driver's Door:

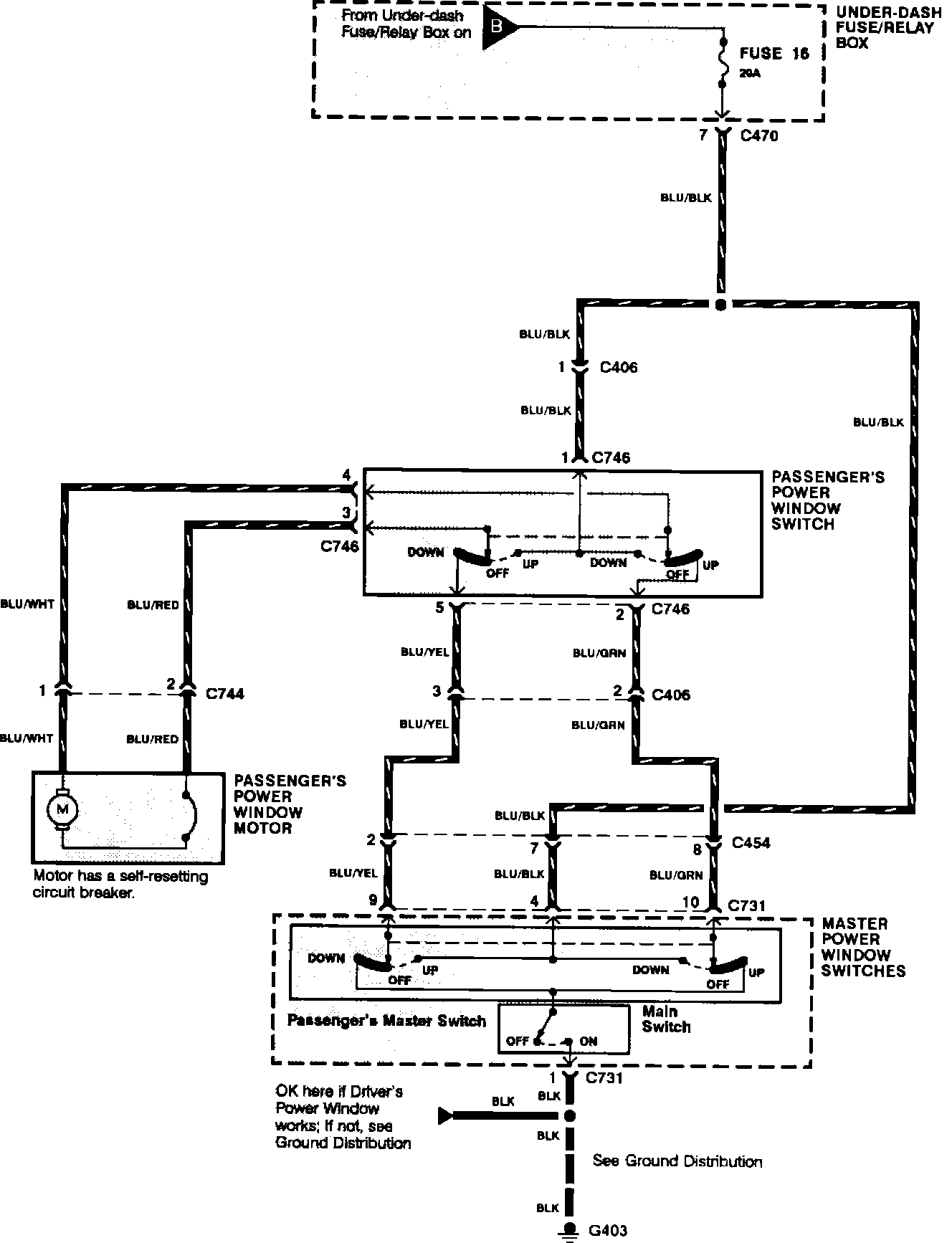

Passenger's Door:
