Control Unit Input Test

1. Disconnect 14-P connector from control unit.

Fig. 18 Speed Control Unit Connector Pin Location:

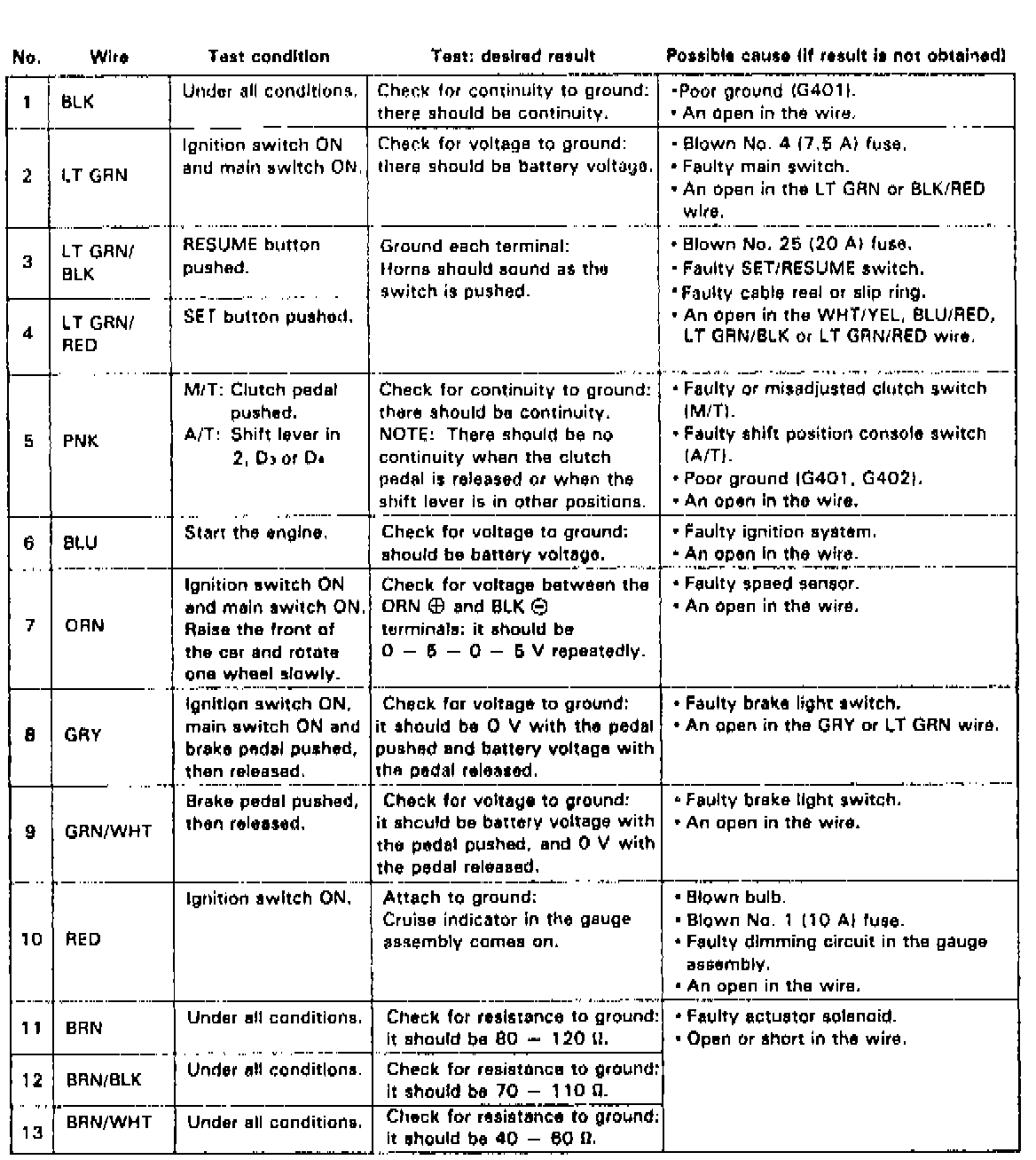

Fig. 20 Speed Control Unit Input Test Chart:

2. Perform tests at harness pin locations, Figs. 18 and 20.
3. Replace control unit if all input tests prove positive.
