System Diagram

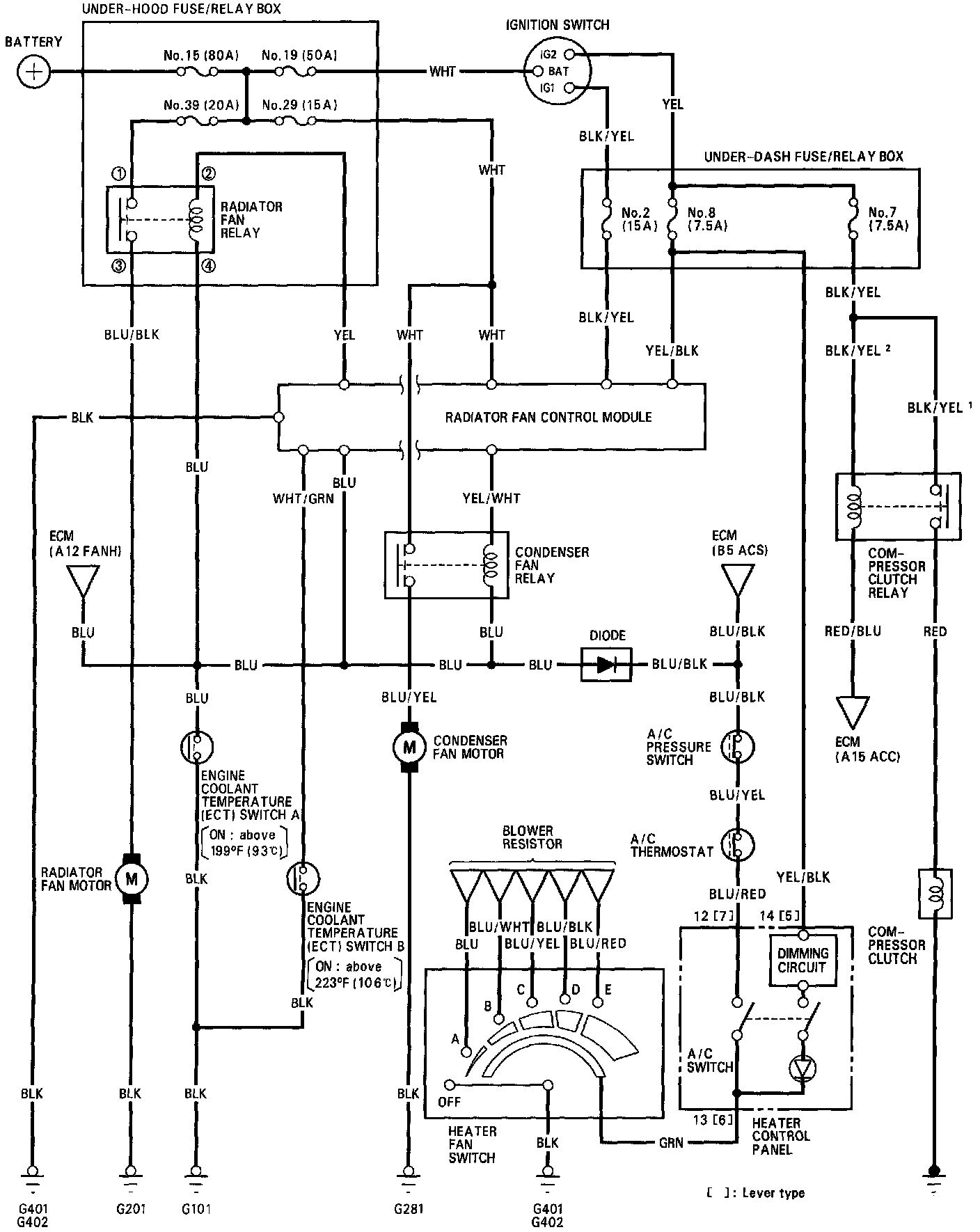

Air Conditioner System:

1992 Accord 2.2 L

Air Conditioner System:

1993 Accord 2.2 L
